Before starting, choose a suitable position for
your set-top box, observing the ventilation
requirements set out on page 4.
WARNING
Before you connect or disconnect your set-
top box to/from any other equipment, make
sure you disconnect all the equipment from
the mains supply.
Connection method 1:
Connecting to a TV
1. Connect the lead from your satellite
dish to the connector marked
950-
2150MHz
on your set-top box.
2. Connect the supplied SCART lead
between the
TV
SCART socket on your
set-top box and the SCART socket on
your TV.
3. Plug the lead from the plug-mounted
power supply into the socket marked
DC Input
on your set-top box.
4. When all the connections are properly
made, connect all equipment to the
mains supply.

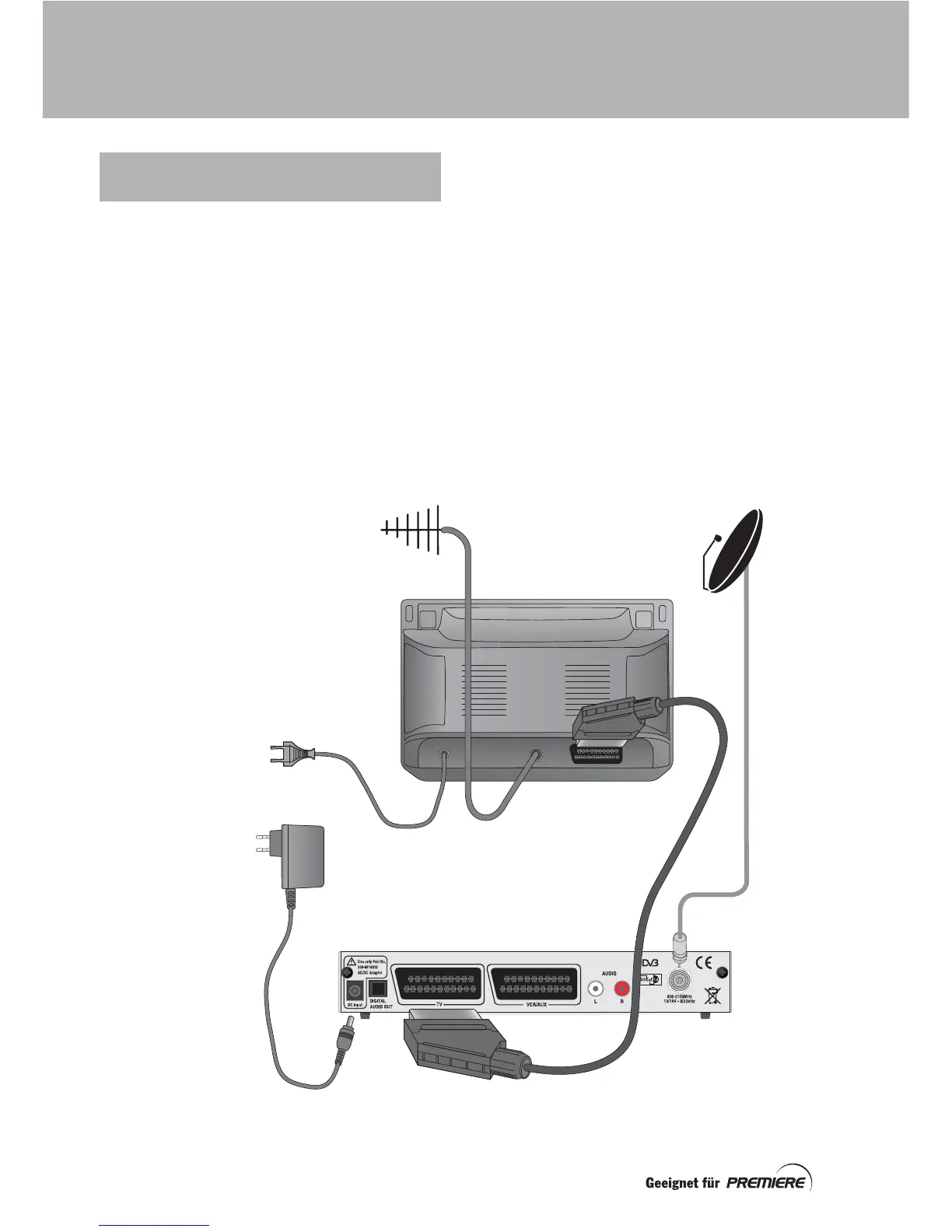

CONNECTING YOUR
SET-TOP BOX
SCART lead
TV
Set-top box
Plug-mounted
power supply
Satellite dishAerial
