Name Connector Function
1 RF OUT To TV Loop Out IEC 169-2 male Aerial Signal Pass Through
2 RS-232C DB-9 Serial Port
3 TV ANT IN Aerial IEC 169-2 female Input from Antenna to Receiver
4 Coaxial SPDIF RCA cinch Digital Audio Output
5 VCR Scart Scart Output to VCR
6 TV Scart Scart Output to TV
7 S-Video Y/C 4 Pin Mini Din S-Video Ouput
8 Video (Yellow) RCA cinch CVBS (Composite) Output
9 Audio R (Red) RCA cinch Right Audio Output
10 Audio L (White) RCA cinch Left Audio Output
11 0/1 Switch Power
12 240V Input Mains Power
6

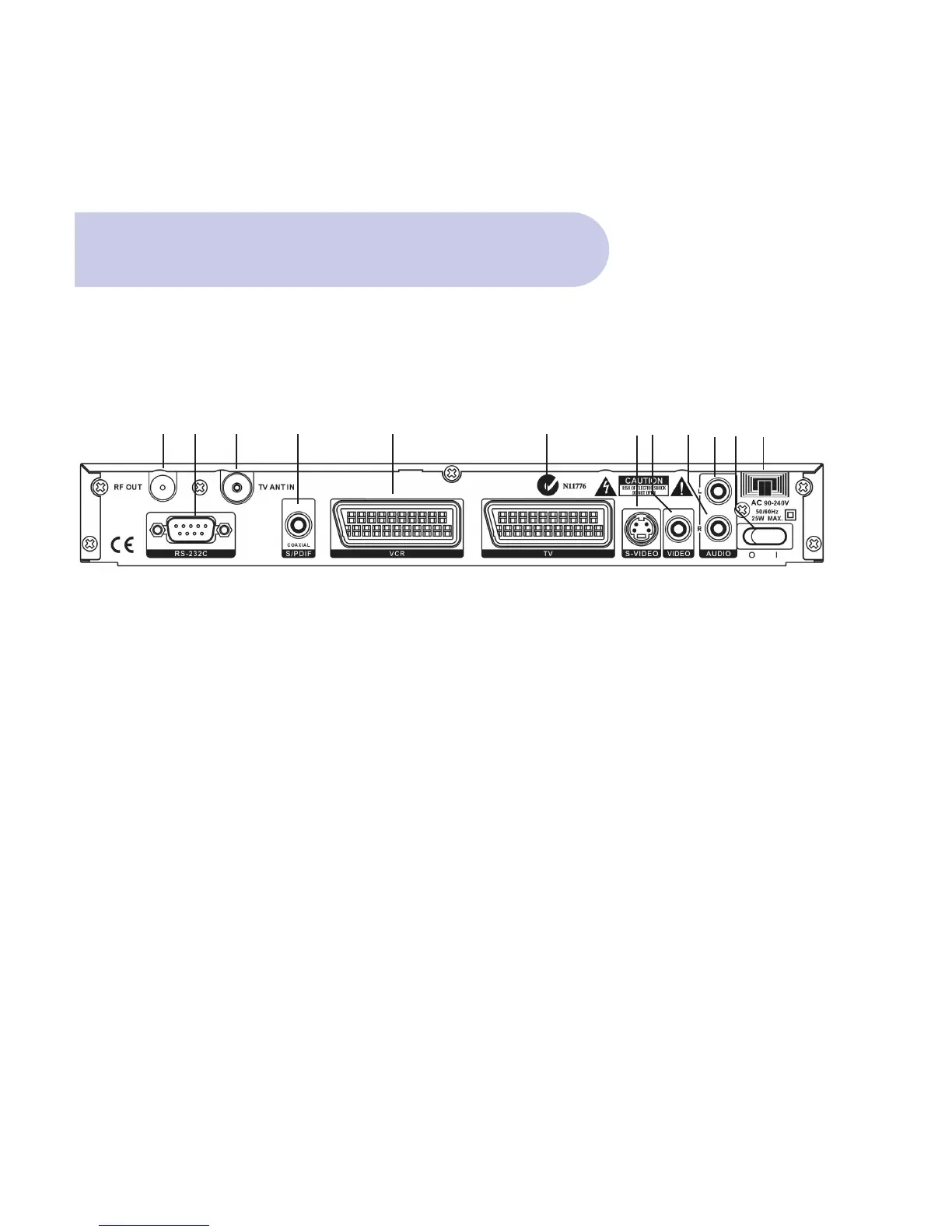

Connections
Back Panel
12 3 4 5 6 789101112
