3.3 Connecting multiple xed LNBs using a DiSEqC switch

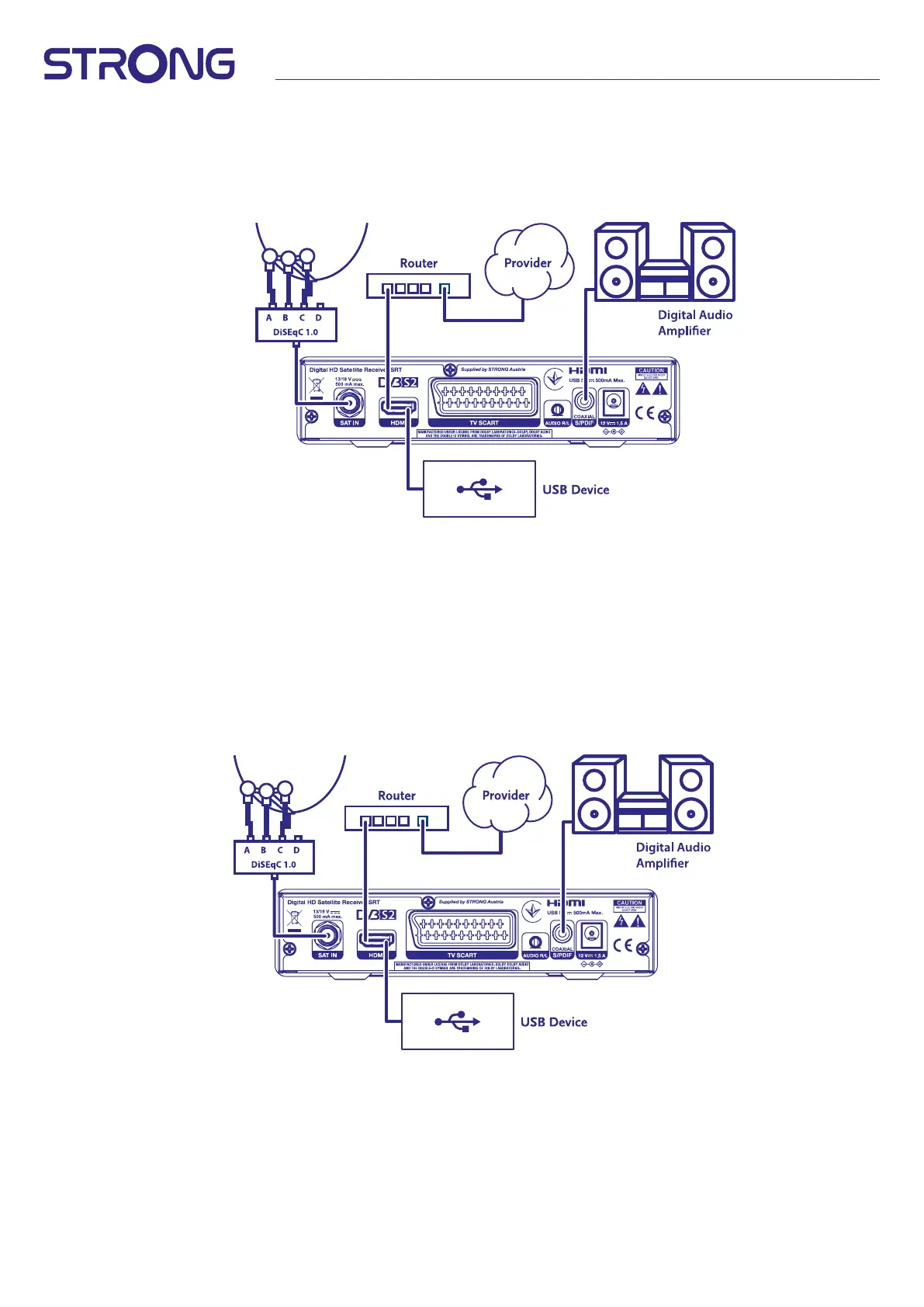

Fig.8
a. Connect the LNBs of your xed antenna to the inputs of a DiSEqC switch
b. Connect the output or “to receiver” connector of the DiSEqC switch to the SAT IN connector on your
receiver.
c. Refer to section 3.1 or 3.2 for TV and mains connections.
3.4 Connecting to digital audio amplier
Fig.8
Connect one end of a good quality coaxial audio cable to the S/PDIF output of your receiver and the other
end to the coaxial audio input of your home theatre, amplier or any other device supporting digital audio.
