Structural Concepts Oasis B32 - Optional Roll-Down Security Cover; Roll Down Security Cover Operation

OPTIONAL ROLL-DOWN SECURITY COVER - MODEL B4732 ILLUSTRATED / YOUR MODEL MAY VARY
15

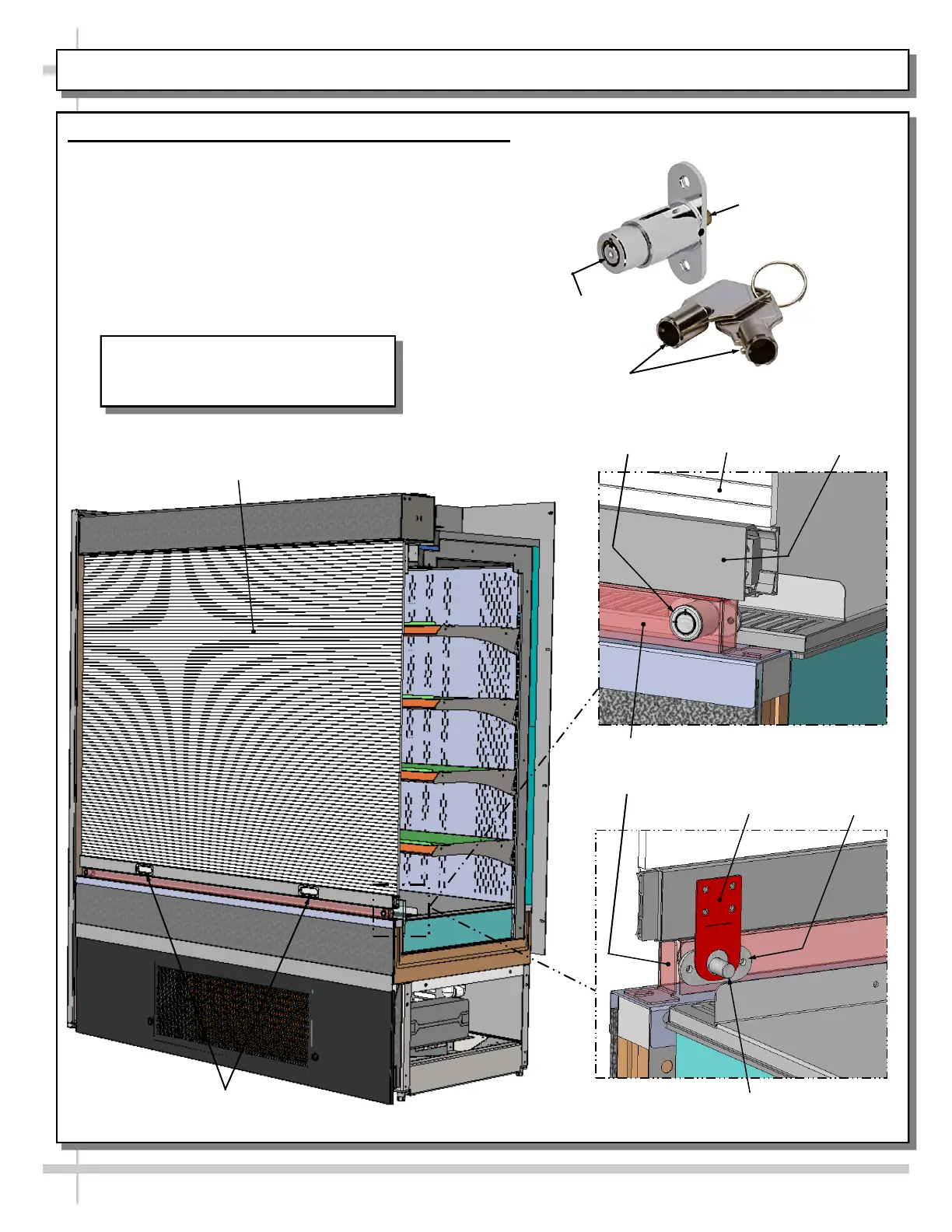

Roll Down Security Cover (Optional): Shown Extended
• Optional roll down security cover has two handles for
grasping, lowering and raising.
• After roll-down cover is lowered, key may be turned
clockwise to lock latch into strike bracket.
• Turn counter-clockwise to unlock.
• Keep keys in safe and secure place.
• Sample lock mechanism components (including sample
set of keys) are shown at top-right.
Key Slot
--- Lock Mechanism Components ---
Set of Keys
Model B7132 Is Shown Partially
Disassembled With Transparent Strike
Bracket For Illustrative Purposes Only.
Handles (For Lowering
& Raising Security Cover)
Roll-Down
Security Cover
Rear View of Plunger (Shown
Extended Into Bracket)
Strike
Bracket (Shown
Transparent)
Lock
Mechanism
Key Slot
(Controls Plunger)
Pull-Down Handle
Assembly
Pull-Down
Handle Bracket
Plunger (at Rear of
Lock Mechanism) That
Inserts Into Pull-Down
Handle Bracket
Curtain
