19

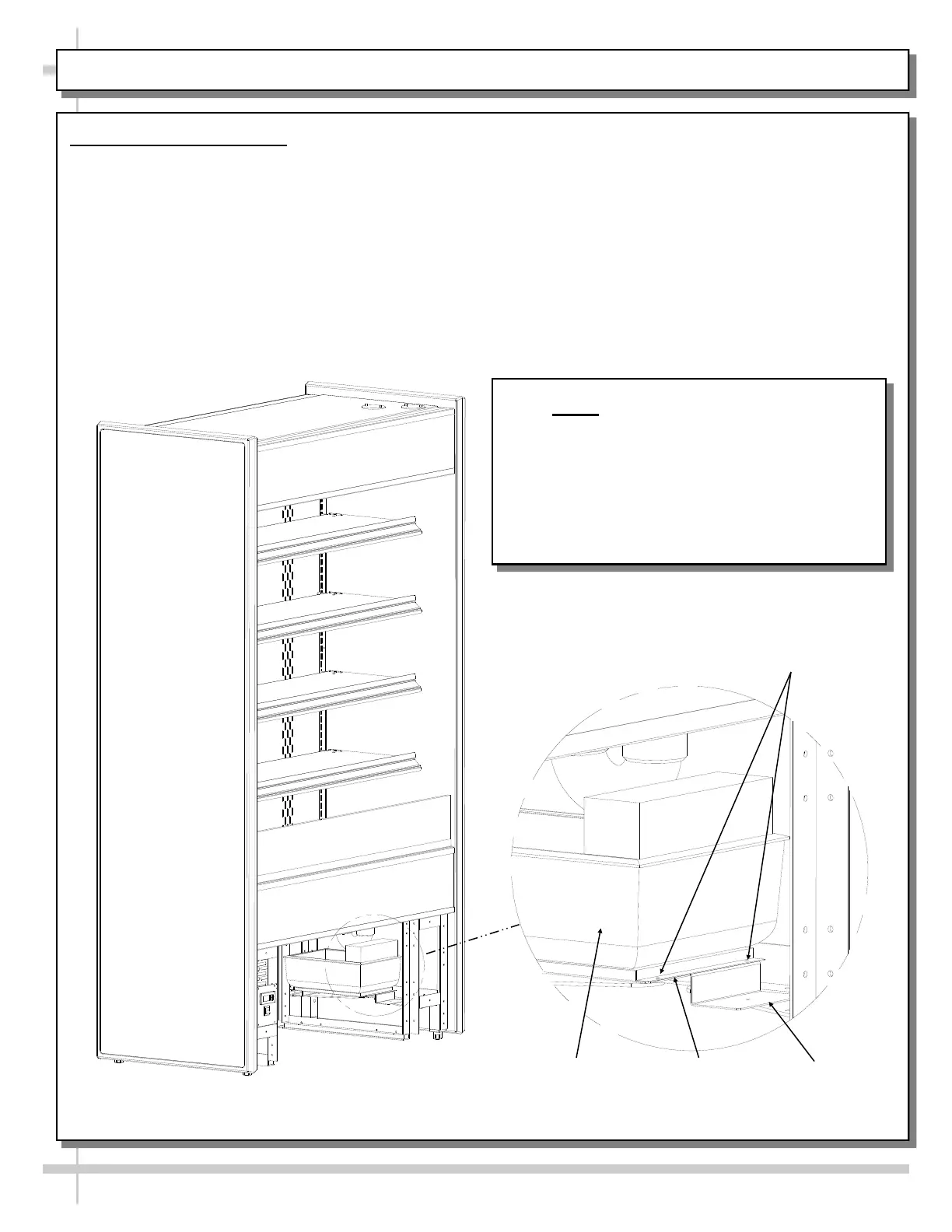

CONDENSATE PAN ACCESS: STANDARD UNITS
---- Case Front (Refrigeration Assembly Removed) ----
Condensate
Pan
Condensate
Pan Foot
Condensate
Pan
Support
Two (2) Condensate Pan
Screws (Connecting
Pan Foot To Support)
Condensate Pan Access
Warning! Disconnect power before providing maintenance and service to unit.
First, remove the front grille and slide out the condenser package. See FRONT GRILLE ACCESS / CHECK
CONDENSER PAN / REFRIGERATION ASS’Y / TURN ON POWER section in this operating manual for
instructions.
• Unplug the condensate pan from its outlet.
• Remove the two (2) screws holding the condensate pan foot to the condensate pan support (see
illustration below).
• Carefully slide the condensate pan off from the condensate pan support.
• When done servicing or cleaning, return and reconnect in reverse order it was removed.
Note: Depending upon your
particular refrigeration package,
removable, electric-coil condensate
pan may not be part of case.
Cases with EnergyWise refrigeration
packages DO NOT have a removable
electric-coil condensate pan.
