Structural Concepts Oasis B32 - Installation, Continued: Adjoinment Instructions; Silicone and Buty Application for Adjoinment; Bolting Adjoined Units

9

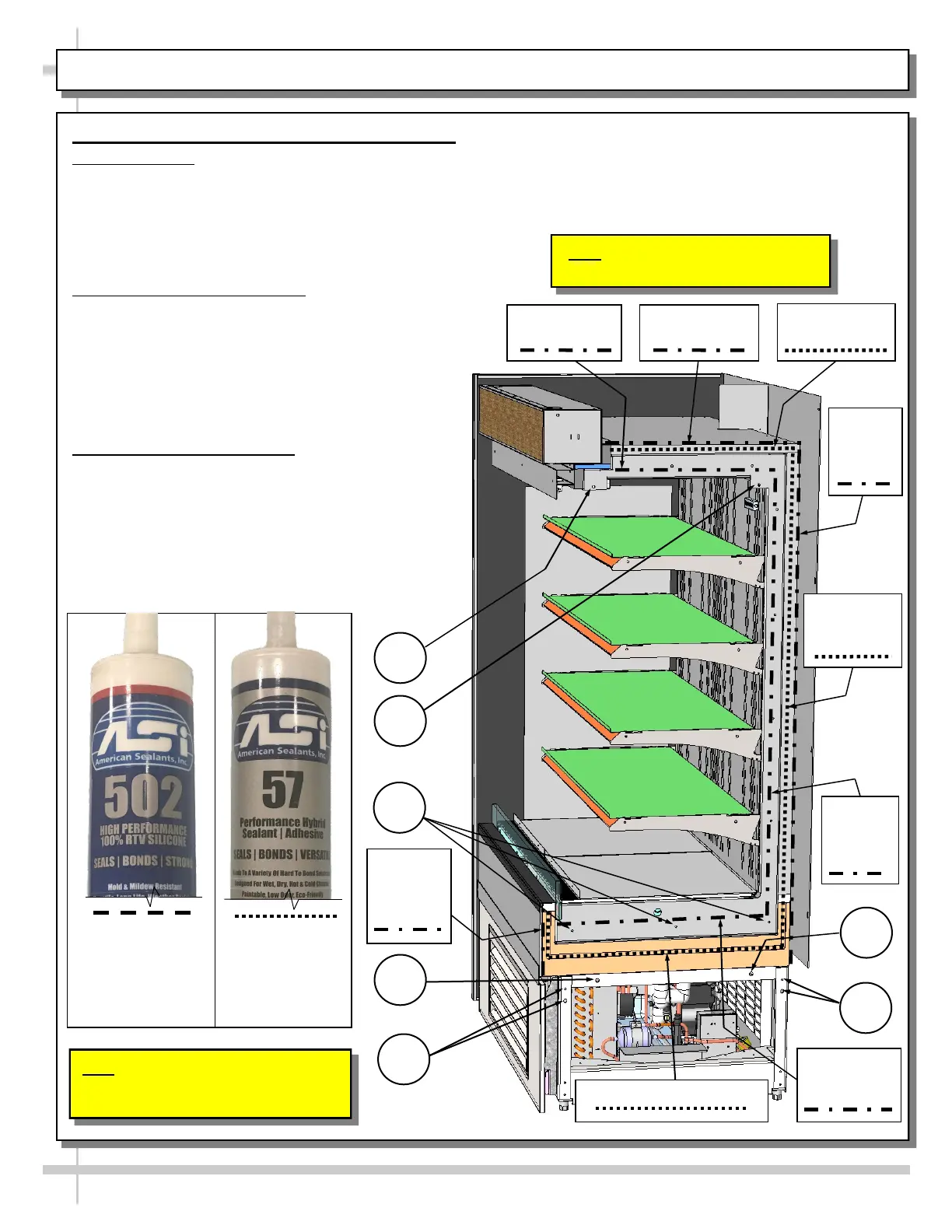

INSTALLATION, CONTINUED: ADJOINMENT INSTRUCTIONS
7. Overview / Silicone and Buty Application
Sealant Overview:
• Warranty is void if improper sealant is used.
• Sealing tub prevents air from escaping through seams
between cases (causing condensation problems and
reducing refrigeration efficiency).
• Sealing also prevents water from seeping between
cases to the floor.
Silicone and Urethane Application:
• Form (1) INNER sanitation bead AND (1) refrigeration
bead BEFORE case is adjoined (as shown).
• Then, AFTER case is adjoined (and bolted), form (1)
OUTER sanitation bead (as shown) into any cavities
or gaps that may remain along outer adjoinment areas
where urethane has ALREADY been applied.
• Also place a thick bead of urathane around drain.
8. Bolting Adjoined Units
• Bolt holes are at various locations (depending upon
model). Model illustrated MAY NOT exactly reflect
your particular unit but will likely be similar in layout.
• Use appropriately sized nuts and bolts for each hole.
• #1 hole is accessible at honeycomb (slight
adjustment or removal of honeycomb air diffuser
may be necessary for attachment of bolt).
• #2 hole is accessible near rear plenum.
1
9
7/8
5/6
4
Deck
Refrigeration
Urethane
Bead
Refrigeration Urethane Bead
• #3 holes are accessible after removing decking.
• #4-6 holes are accessible after removing front panel.
• #7-9 holes are accessible after removing rear panel.
>> Be sure to reattach components to case after the
adjoinment process is complete.
2
Deck
3
Note: Model B4732 (Unit Shown) May
Not Exactly Reflect Every Feature or
Option of Your Particular Case.
Inner Silicone
Sanitation
Bead
Inner
Silicone
Sanitation
Bead
Outer
Silicone
Sanitation
Bead
Outer
Silicone
Sanitation
Bead
Note: Any changes to this document
must also be made do P/N 20-76683
Inner Silicone
Sanitation Bead
Refrigeration
Urethane Bead
Outer Silicone
Sanitation Bead
Silver, Black or Clear
Silicone Sealant
Conforming To
NSF/ANSI 51
Specifications
(For Sanitation
Bead Applications)
Industrial Grade
Urethane
Adhesive
(For Refrigeration
Bead Applications)
