Structural Concepts Oasis B32 - Condensate Pan Access: Remote Units with Condensate Pans Only; Condensate Pan Access and Removal for Remote Units

20
Condensate
Pan
Drain
P-Trap

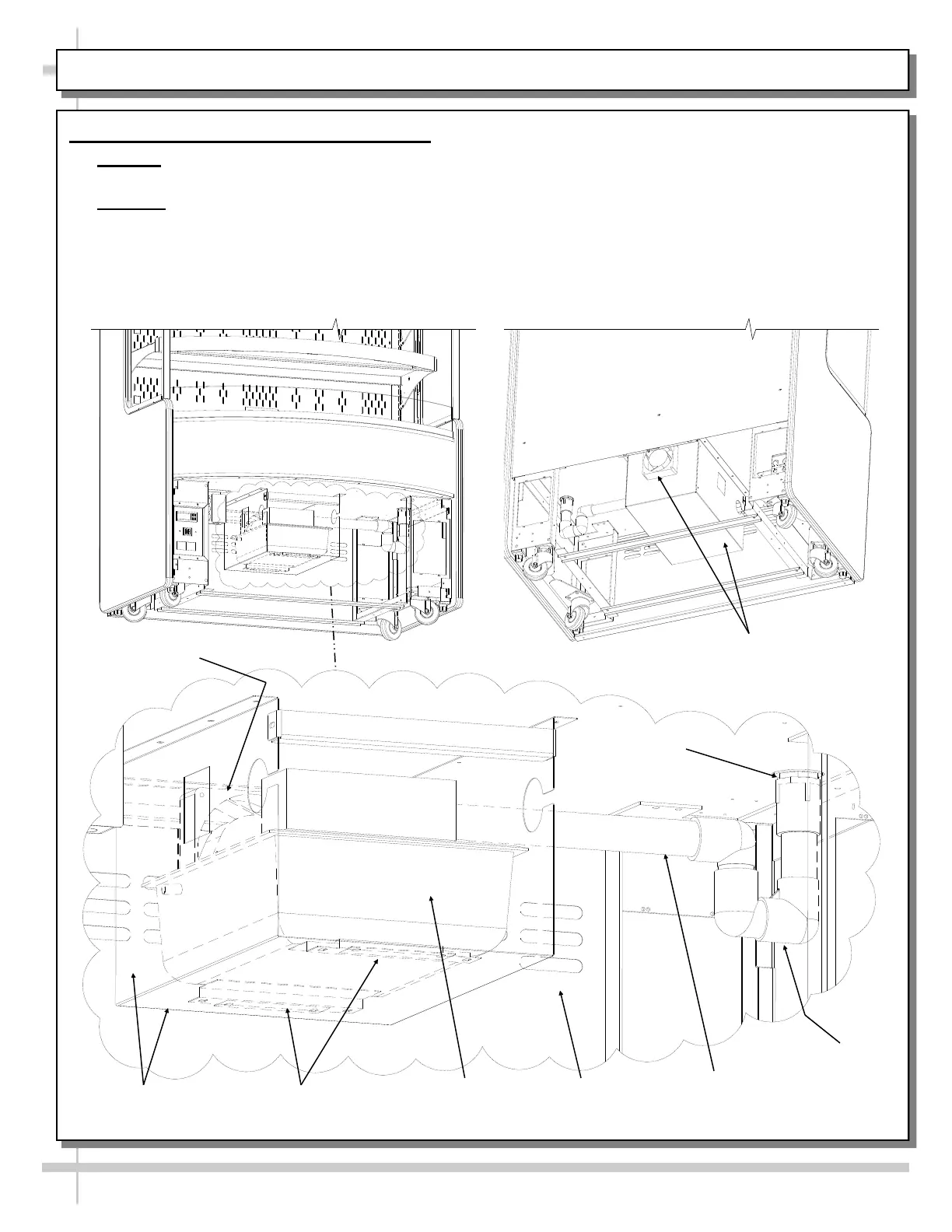

Case Rear View of Condensate
Pan Cover and Exhaust Fan
(Rear Panel Removed)
Condensate Pan Access and/or Removal
• Caution: Only trained service providers are
to provide maintenance and service to unit.
• Warning! Disconnect power before providing
maintenance and service to unit.
• To access, remove the front panel. Simply lift
panel up and off (no screw removal is required).
CONDENSATE PAN ACCESS: REMOTE UNITS WITH CONDENSATE PANS ONLY
• To service or clean, unplug the condensate pan
from its outlet.
• Remove the screws holding the condensate pan
foot to the condensate pan support (see
illustration below).
• Carefully slide the condensate pan off from its
support.
• When done servicing or cleaning, return and
reconnect in reverse order it was removed.
Condensate Pan
Cover
Fan To
Condensate Pan
Rear Panel
Drain Pipe
Drain
Condensate Pan
Feet/Support
