Structural Concepts Oasis B32 - Self-Contained Hot Gas Loop Condensate Package Layouts - Top Mounted; Top Mounted Condensate Package Layout

23
SELF-CONTAINED HOT GAS LOOP CONDENSATE PACKAGE LAYOUTS - TOP MOUNTED
Self-Contained Hot Gas Loop Condensate Package - Top Mounted
• Caution: Only trained service providers are to provide maintenance and service to unit.
• Warning! Disconnect power before providing maintenance and service to unit.
• Important! See next page for underside pump/drain pan for top mounted units.

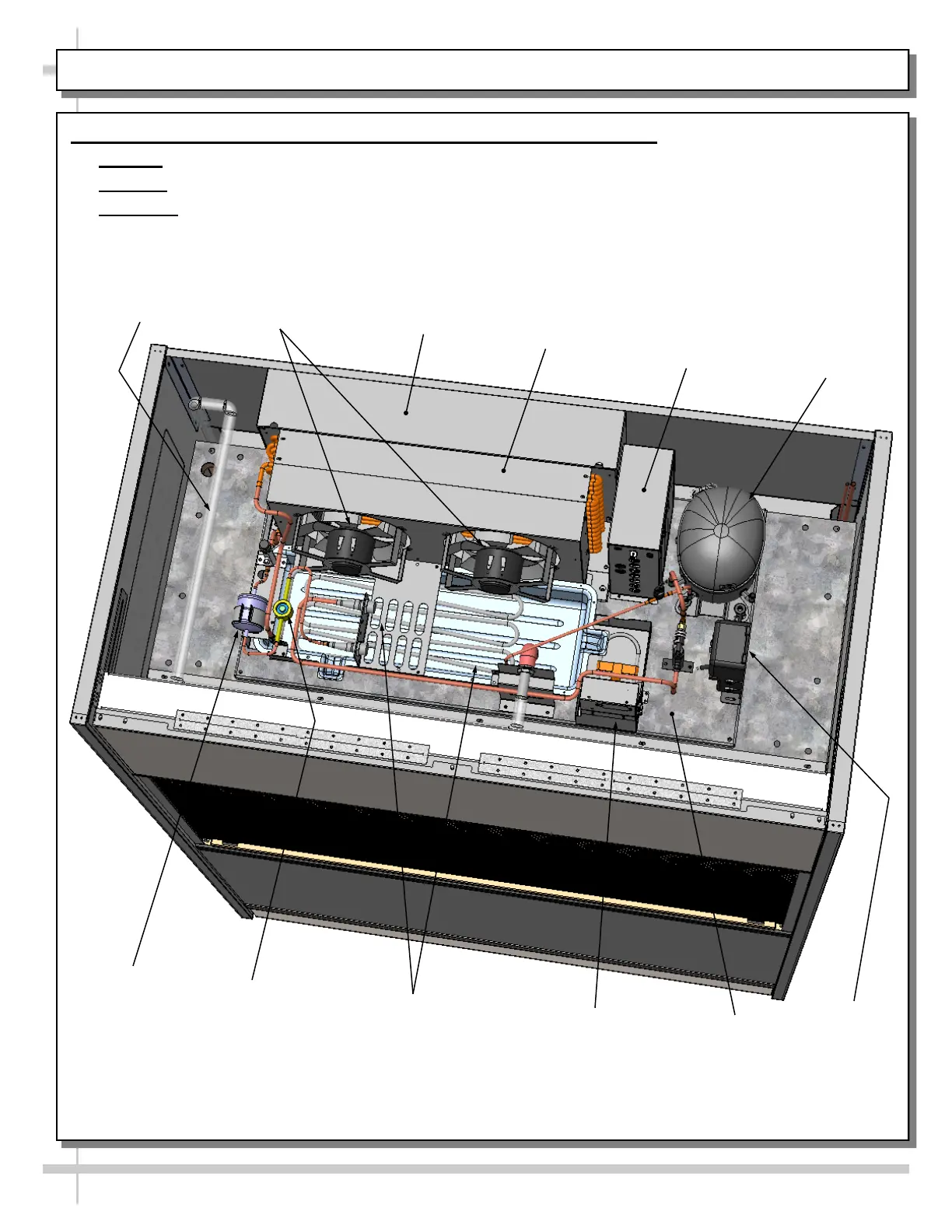

--- Model B5932TM.6785 Condenser Package Component Layout ---
Sight Glass
Filter Dryer
Embraco®
Starter Unit
Heater Rod
Overflow Pan
Hot Gas Condensate
Coils and Pan
Drain Line (From
Underside
Condenser Coil
Housing
Condenser Coil
Fans & Housing
Compressor
CleanSweep®
Housing
Condenser
Pan
Electrical Box (Carel
®Controller and Main
Power Switch)
