WARNING! TURN OFF CASE BEFORE PERFORMING PREVENTIVE MAINTENANCE!
PREVENTIVE
MAINTENANCE
QUARTERLY PREVENTIVE MAINTENANCE INSTRUCTIONS
Case Interior Refrigeration Assembly With Condensate Pan:
Caution! You must turn main power switch off before cleaning!
• Remove front grille. Turn main power switch off.
• Slide refrigeration package out from under case.
• Remove wicking material (if any).
• Use a scrub-brush and a non-corrosive de-scaling solution (to remove calcium,
lime and rust) from condensate pan. Clean hot gas loop (for EnergyWise units) or
electric coil (for standard units). Follow instructions as to proper dilution, safety
precautions and scrubbing method.
• After thoroughly cleaning pan with scrub-brush and solution, rinse thoroughly with
clean water (in spray bottle) and wipe dry with sponge or paper towel.
• Use moist cloth to wipe off dust & debris that collects on various parts (fans, sight
glass, overflow pan, etc.).
• Return wicking material to mounting brackets. If wicking material is tattered, torn
or disintegrating, replace with new. If wicking material is not available, contact
Structural Concepts. See toll-free number at last page of operating manual.
• Slide condenser package back under case.
• Return front grille to case.

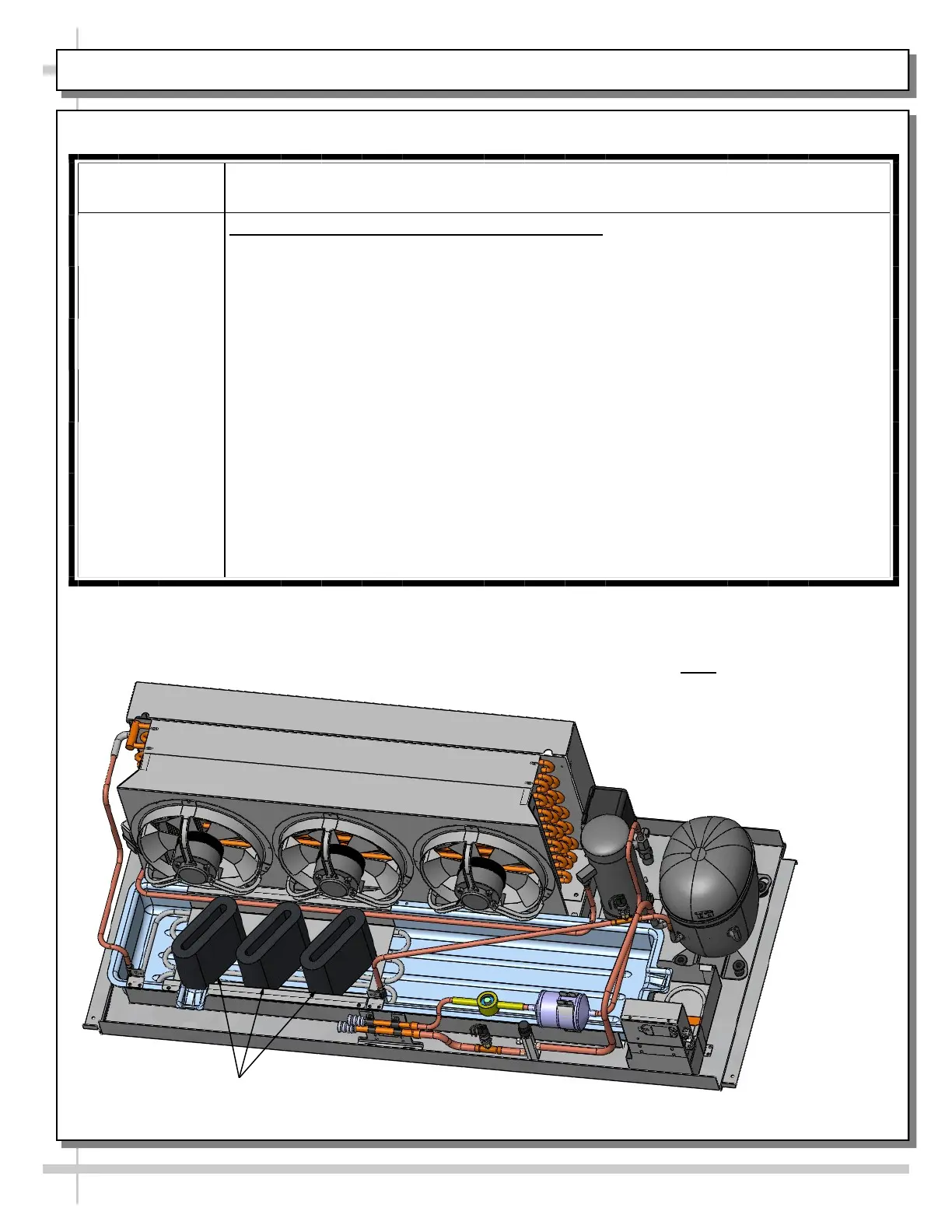

Optional Wicking Material
(Shown For Illustrative Purposes Only)
Note: Hot Gas Loop
Condensate System Shown.
Standard Electric Coil
Condensate Pans Have
Slightly Different Layout.
PREVENTIVE MAINTENANCE - TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY - 3 of 5
