Struers LaboForce-50 - Installation Procedures Continued; Mounting for LaboPol Models

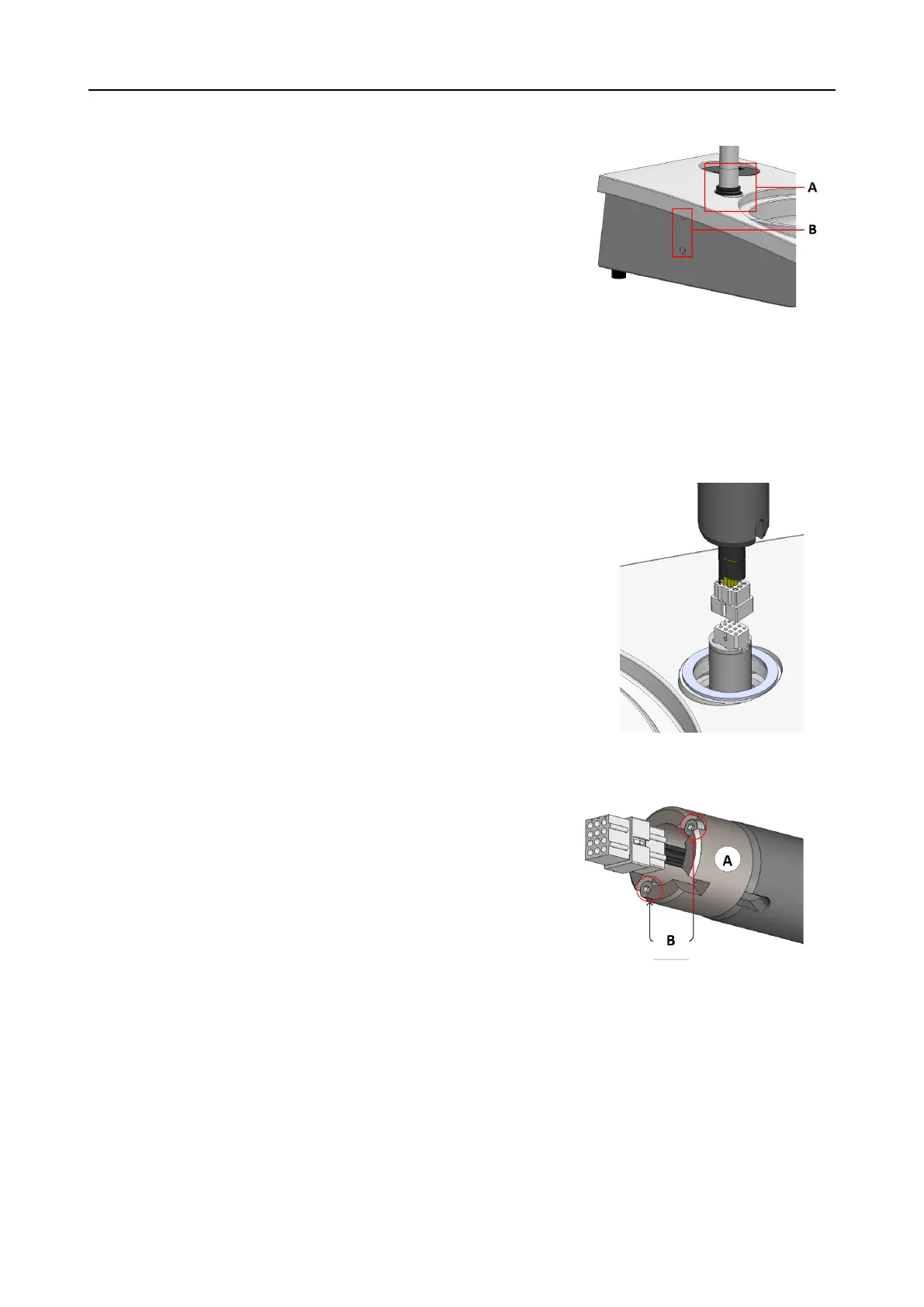

3. Guide the column down into the connection hole.
4. Slide the black V-ring down the column until it covers the
connection hole.
5. Use the Allen key to tighten the two fastening screws. Do
not tighten the screws completely.
Allen key, M4 screws, spacer, and cover caps are
included in the package.
A V-ring
B Fastening screws
Procedure - LaboPol-30, LaboPol-60
1. Remove the plastic disc protecting the communication cable.
2. Use the M4 screws to mount the spacer on the bottom
of the column.
3. Connect the communication cable on the column to the
connection port on the machine.
4. Guide the column down into the connection hole.
5. Turn the column until the spacer sits securely in the
connection hole.
A Spacer
B M4 screws
5 Installation
LaboForce-50 11
