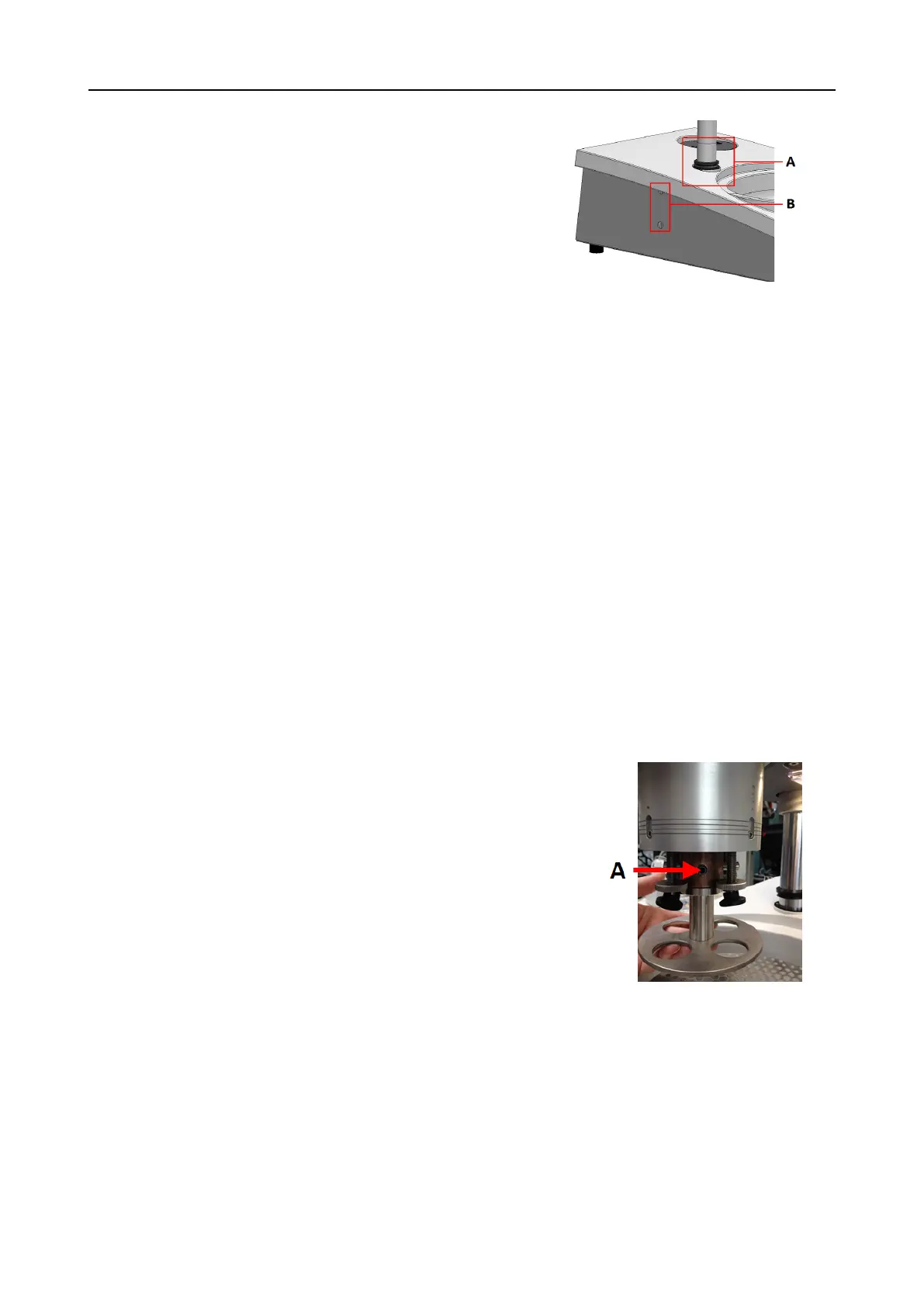

6. Slide the black V-ring down the column until it covers
the connection hole.
7. Use the Allen key to tighten the two fastening screws.
Do not tighten the screws completely.
A V-ring
B Fastening screws
5.4 Adjusting the specimen mover
5.4.1 Insert a specimen mover plate
Before you adjust the specimen mover, you must insert a specimen mover plate.
For approved specimen mover plates, see:
• The LaboSystem brochure (https://www.struers.com/Products/Grinding-and-
Polishing/Grinding-and-polishing-equipment/LaboSystem)
1. Use the locking handle on the left side to unlock the
specimen mover and let it move into upright position.
2. Pull the quick-release ring and lift the housing.
3. Insert a specimen mover plate and rotate it until the two
pins are aligned with the holes in the specimen mover.
4. Push the specimen mover plate upwards and use the
Allen key to tighten the screw to secure it in position. See
A.
5. Make sure that the specimen mover plate is securely
mounted.
6. Lower the housing back into position.
A Screw
12 LaboForce-50
5 Installation
