Stryker 1000 User Manual

19
715–1–250 Side Control Base Assembly (with Brakes)
Item Part No. Part Name Qty.
A 715–1–245 Base Weldment Assembly 1
B38–211 Spring 1
C 715–1–158 Caster Nut 4
D 715–1–61 Caster Brake Assembly 2
E (Page 20) Brake Adjuster Assembly 2
F 715–1–231 Brake/Steering Rod Assembly 1
H 1000–10–62 Steering Lock Linkage Bar 1
J (Page 21) Brake Cam Assembly 2
L 715–1–94 Compression Spring 2
M21–50 Set Screw 2
P 715–1–11 Brake Cushion 4
R 946–1–116 Brake Bar Bushing 4
T23–25 Self–Tapping Screw 2
V 715–1–156 Grounding Chain 1
AA 715–201–201 Brake/Steer Pedal 2
AB 26–261 Groove Pin 2
AC 26–13 Roll Pin 1
AD 715–1–165 Actuator Plate Assembly 1
AH 42–20 Collar w/ Set Screw 2
AJ 8–17 Soc. Hd. Cap Screw 2*
AK 14–2 Nylon Washer 4
AN 16–2 Fiberlock Nut 2
AR 3–20 Hex Hd. Cap Screw 1
AS 715–1–217 Fifth Wheel Latch 1
AT 16–16 Nylock Nut 1
AY 715–1–157 Fifth Wheel Bearing 1
AZ (Page 27) Steering Caster Assembly 1**
BA 715–1–337 Fifth Wheel Plate Assembly 1
BB 16–49 Flexlock Nut 1
BC 715–1–161 Fifth Wheel Cam 1
BD 26–8 Roll Pin 1
BF 8–21 Soc. Hd. Cap Screw 1**
BJ 715–1–149 Woodruff Key 1
BK (Page 29) Fifth Wheel Assembly 1
BL 81–219 Bearing 1
BN 715–1–136 Fifth Wheel Spring 1
BP (Page 28) Caster Wheel Assembly 3 ***
*Item AJ to be used only when fifth wheel is ordered.
**Items AZ and BF to be used only when steerlock caster is ordered.
*** Item BP quantity of four when fifth wheel is ordered.

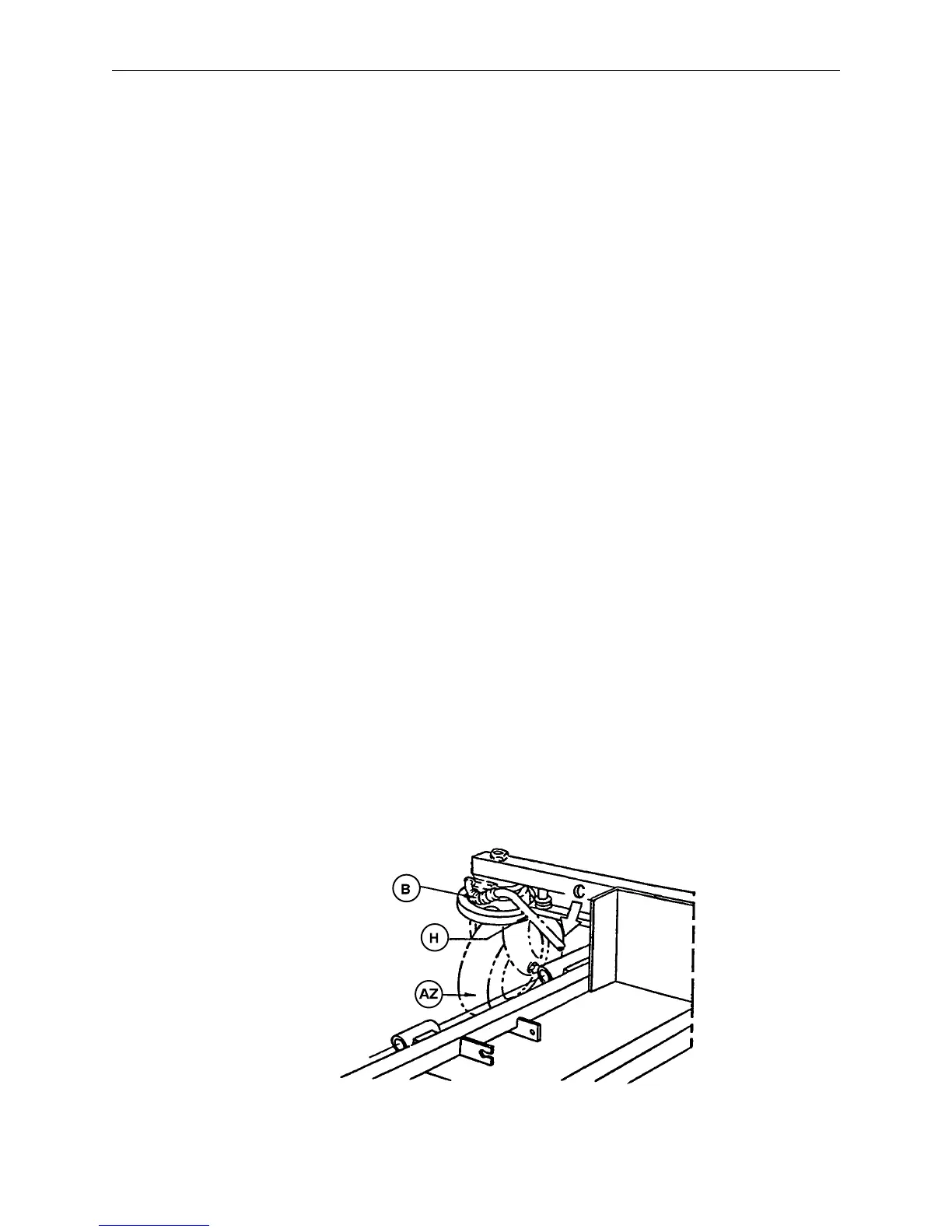

STEERLOCK
ASSEMBLY
DETAIL
