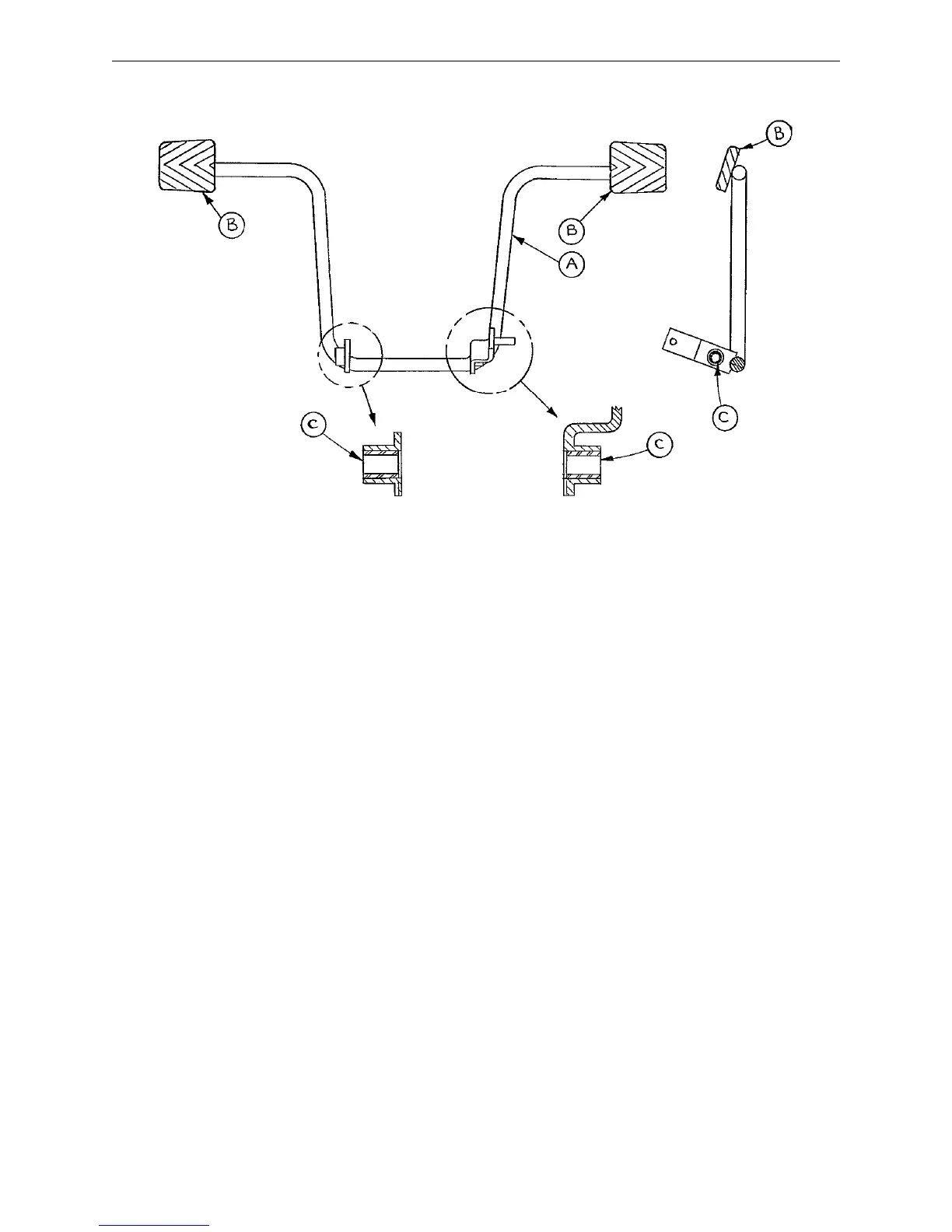

Pedal Base Assembly
, Pump
Item
Part No.
Part
Name
Qty
.
A
715
–
1
–
83
Pedal Ass
’
y Weldm
’
t, Pump
1
B
715
–
1
–
126
Side Control Pedal Pad
2
C8
1
–
44
Bearing, Bronze
2
NOTE
Apply plastic adhesive to the mating surfaces of item B prior to assembly
.
34
36
Table of Contents
Default Chapter
2
Table of Contents
2
Introduction
4
Specifications
4
Warning / Caution / Note Definition
4
Preventative Maintenance
5
Cleaning
5
Biannual Checklist
5
Service Information
6
Pneumatic Fowler Adjustment
6
Siderail Latch Adjustment
7
Pedal Linkage Adjustment - Dual Side Control Base
8
Pedal Linkage Adjustment - Dual End Control Base
9
Caster Assembly Replacement
10
Caster Cover Installation and Removal
11
Hydraulic System Troubleshooting
12
Checking Hydraulic Fluid Level
13
Removal of Excess Air (Vacuum) from the Hydraulic System
13
Jack Descent Rate Adjustment
14
Hydraulic Check Valve Replacement
15
Replacement of Valve #1
15
Replacement of Valve #2
16
Replacement of Valve (Poppet) #3
16
Brake Adjustment
17
Base Lubrication Points
17
Assembly Drawings and Parts Lists
19
Side Control Base Assembly (with Brakes)
19
Side Control Base Assembly (with Brakes)
20
Brake Adjuster Assembly
21
Brake Cam Assembly
22
Reduced Length Brake/Steer Base Option
24
716-1-263 End Control Brake Pedal Assembly, Foot
27
716-1-269 End Control Brake Pedal Assembly, Head
27
715-2-21 Caster Assembly with Steerlock
28
Caster and Caster Cover Replacement Kits
29
Fifth Wheel Assembly
30
Side Control Base Assembly (with Jacks)
33
Side Control Base Assembly (with Jacks)
34
Pedal Base Assembly, Pump
35
Pedal Base Assembly, Head End, Left
36
Pedal Base Assembly, Head End, Right
37
End Control Base Assembly (with Jacks)
40
Pump Pedal Assembly, Head
41
Pump Pedal Assembly, Foot
41
Assembly Drawings and Parts Lists (Continued)
42
715-1-310* Jack Assembly
42
Jack Base Assembly
42
End Control Base Labeling Assembly
44
End Control Stretcher Graphics
45
Side Control Stretcher Graphics
46
Side Control Base Labeling Assembly
47
24" Litter Carrier Assembly
48
24" Litter Carrier Assembly, with Push Bar
49
24" Push Bar Assembly
49
Yoke Housing Assembly
58
Foot Board/Chartholder
76
Upright Oxygen Bottle Holder
76
X–Ray Cassette Assembly
78
X–Ray Cassette Assembly
79
Padded Foot Extension Assembly
80
Warranty
81
Supplemental Warranty Coverage
81
Return Authorization
82
5
Based on 1 rating
