Stryker 1000 User Manual

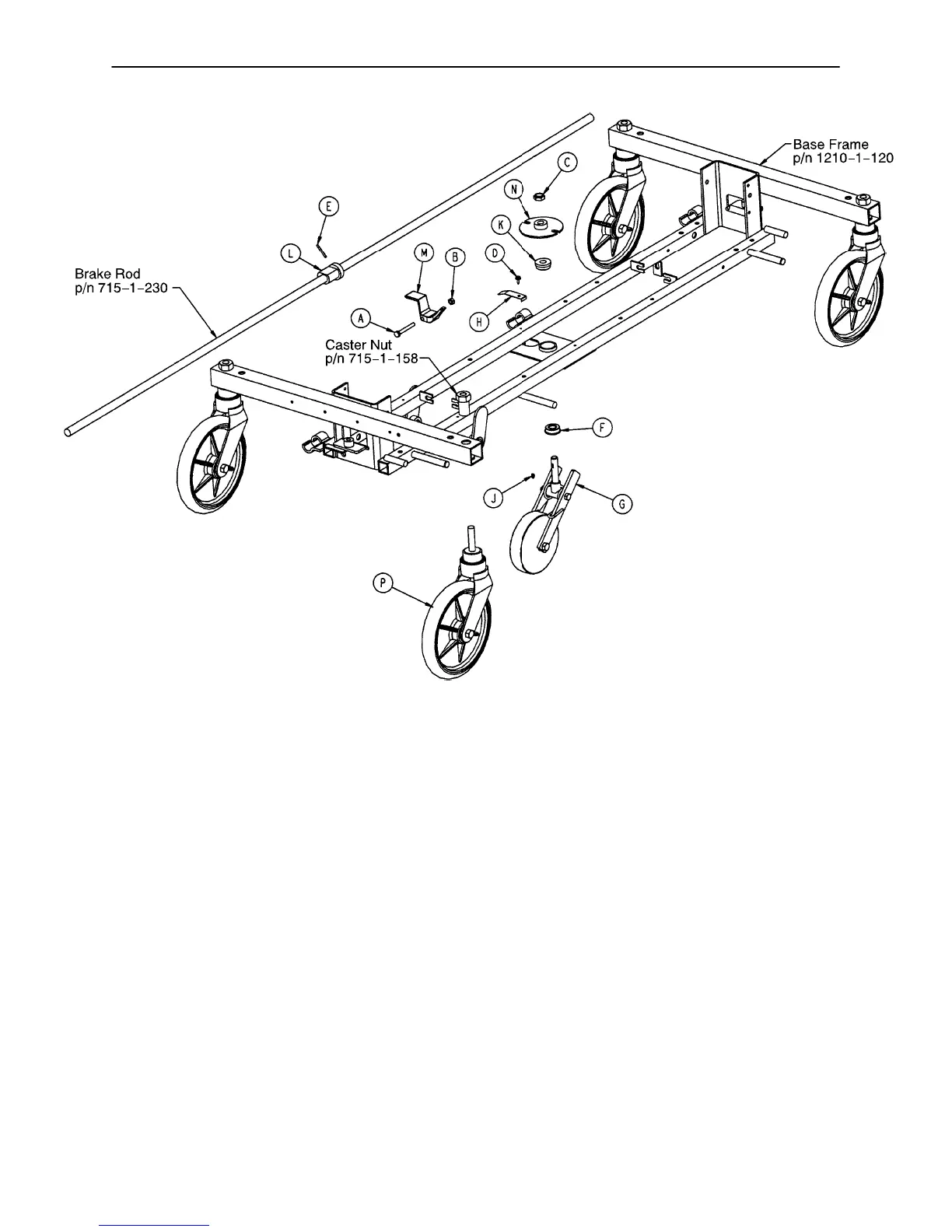

Optional Fifth Wheel Base Assembly
28.1
Item Part Name Part No. Qty.
A3–20 Hex Hd. Cap Screw 1
B16–16 Fiberlock Nut 1
C16–49 Nylock Hex Nut 1
D23–25 Hex Washer Hd. Screw 1
E26–8 Roll Pin 1
F81–219 Bearing 1
G (page 29) Fifth Wheel Assembly 1
H 715–1–136 Fifth Wheel Spring 1
J 715–1–149 Key 1
K 715–1–157 Fifth Wheel Bearing 1
L 715–1–161 Fifth Wheel Cam 1
M 715–1–217 Fifth Wheel Latch 1
N 715–1–337 Fifth Wheel Plate 1
P (page 28) Caster Assembly 4
