23

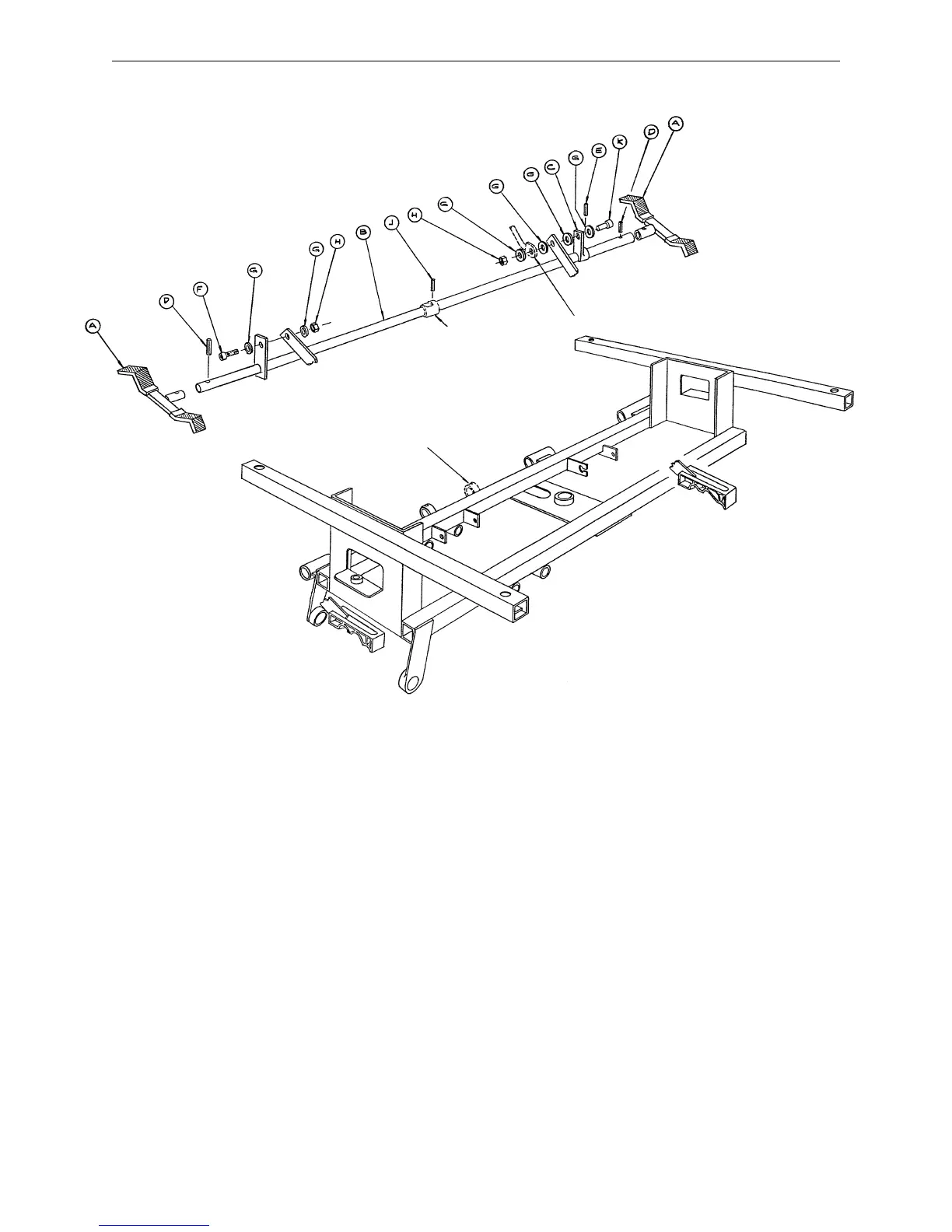

1010–90 Reduced Length Brake/Steer Base Option
Collar w/Set Screw p/n 42–20 (Ref.)
Fifth Wheel Cam
p/n 715–1–161 (Ref.)
Steering Lock Linkage Bar p/n 1000–10–62 (Ref.)
Item Part No. Part Name Qty.
A 1010–90–10 Brake Pedal Assembly 2
B 1010–90–24 Brake Bar 1
C 715–1–165 Actuator Plate Assembly 1
D26–35 Roll Pin 2
E26–13 Roll Pin 1
F8–17 Shoulder Bolt 1
G14–2 Nylon Washer 6
H16–2 Fiberlock Nut 2
J26–8 Roll Pin 1
K8–21 Shoulder Bolt 1
NOTE
This assembly pertains only to units equipped with the reduced length brake/steer option (for Surgi–lift clear-
ance). The width of the brake/steer pedal will be 11 1/4 inches if the unit is equipped with this option. If the
pedal is wider than 11 1/4 inches, base assembly 715–1–250 or 716–1–251 should be referenced.
