Stryker 1000 - Pump Pedal Assembly, Head; Pump Pedal Assembly, Foot

38

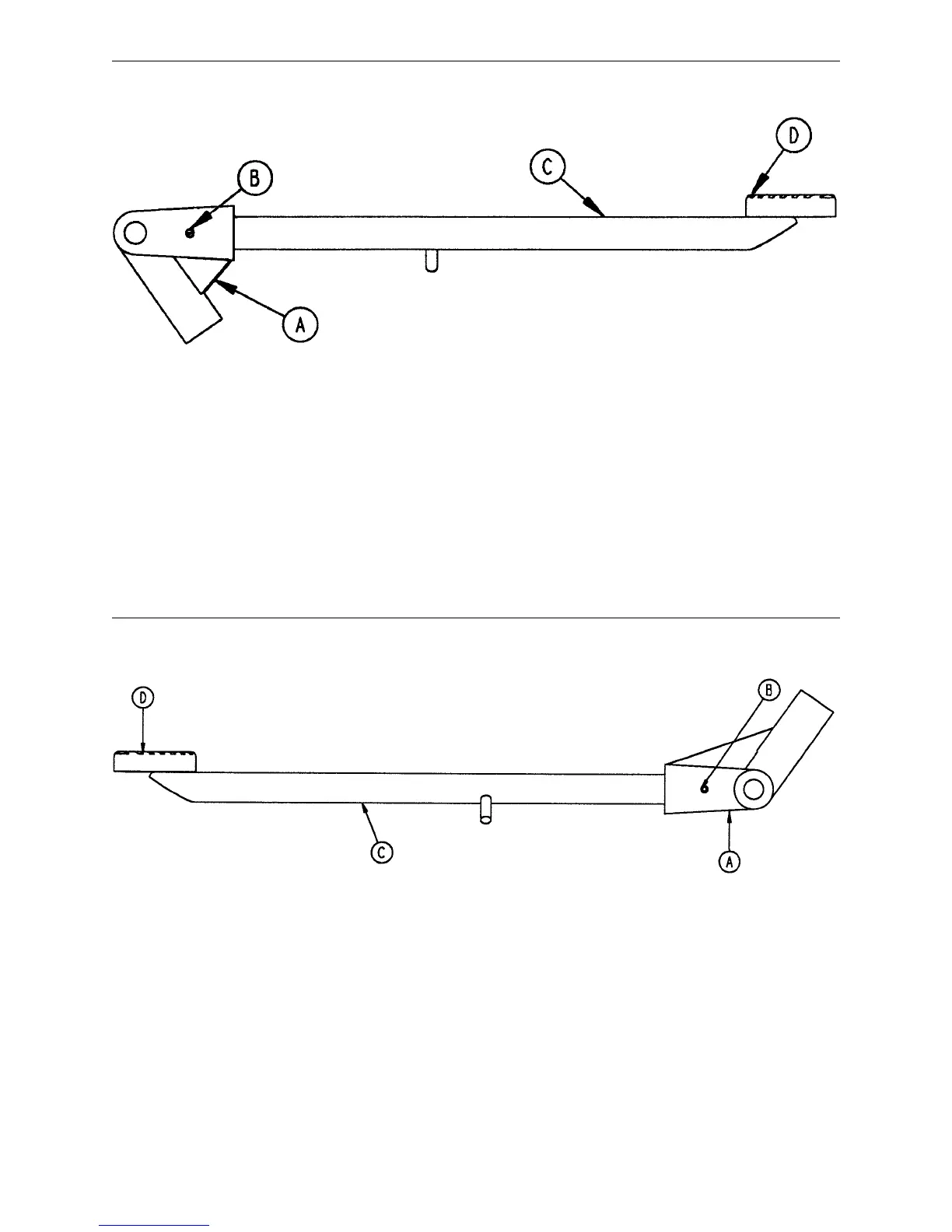

End Control Pump Pedal Assembly, Head
Assembly part number 716–1–292
Item Part No. Part Name Qty.
A 716–1–285 Pump Pivot, Head End 1
B26–12 Roll Pin 1
C 716–1–290 Pump Ped. Wldmt., Head 1
D 721–40–25 Pedal 1
End Control Pump Pedal Assembly, Foot
Assembly part number 716–1–288
Item Part.No. Part Name Qty.
A 716–1–283 Pump Pivot, Foot End 1
B26–12 Roll Pin 1
C 716–1–289 Pump Ped. Wldmt., Foot 1
D 721–40–25 Pedal 1
NOTE
Apply plastic adhesive to the mating surfaces of item D prior to assembly.
