33

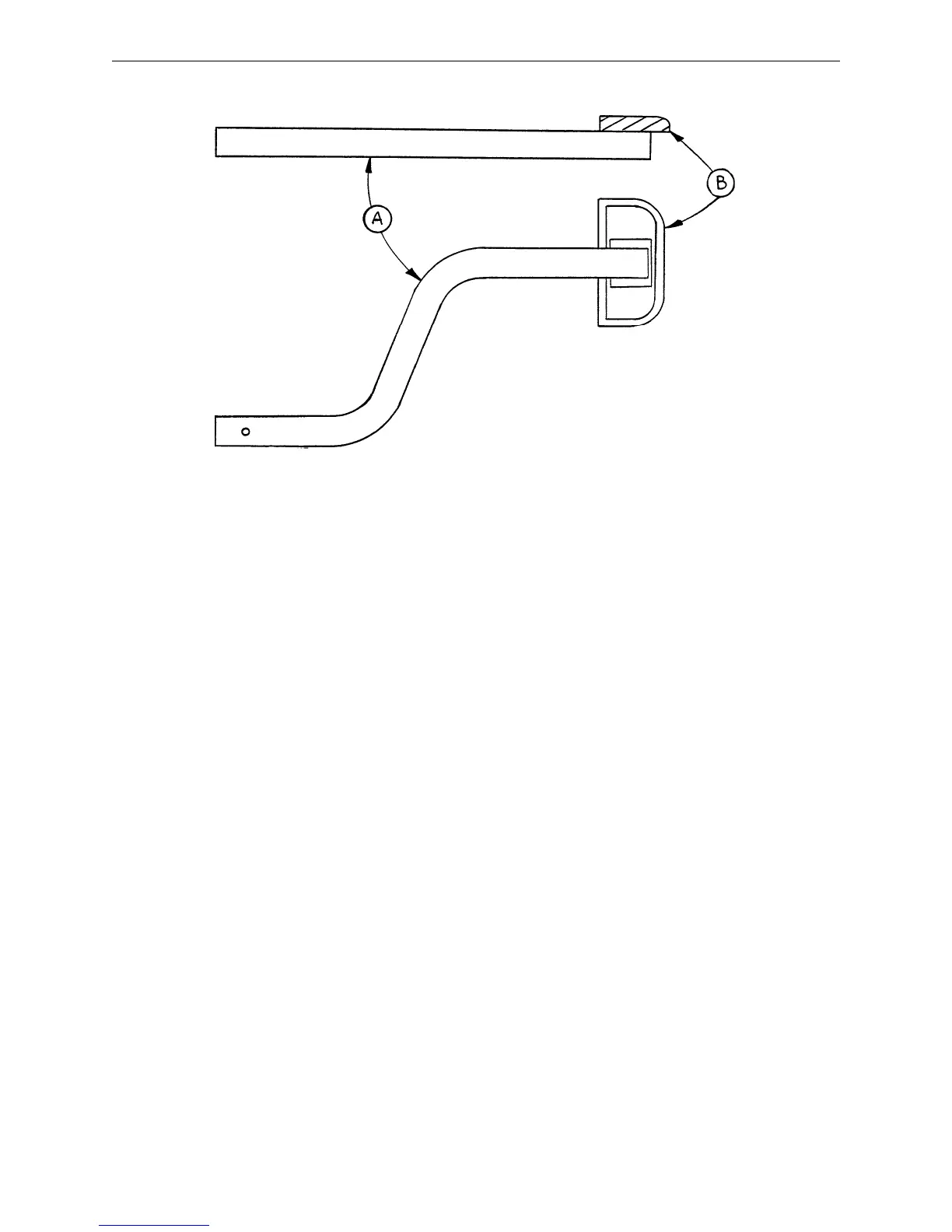

715–1–109 Pedal Base Assembly, Head End, Left
Item Part No. Part Name Qty.
A 715–1–98 Release Ped. Wldmt., Hd. Lt. 1
B 721–40–25 Pedal 1
NOTE
Apply plastic adhesive to the mating surfaces of item B prior to assembly.
