Stryker 1000 - Jack Assembly

39

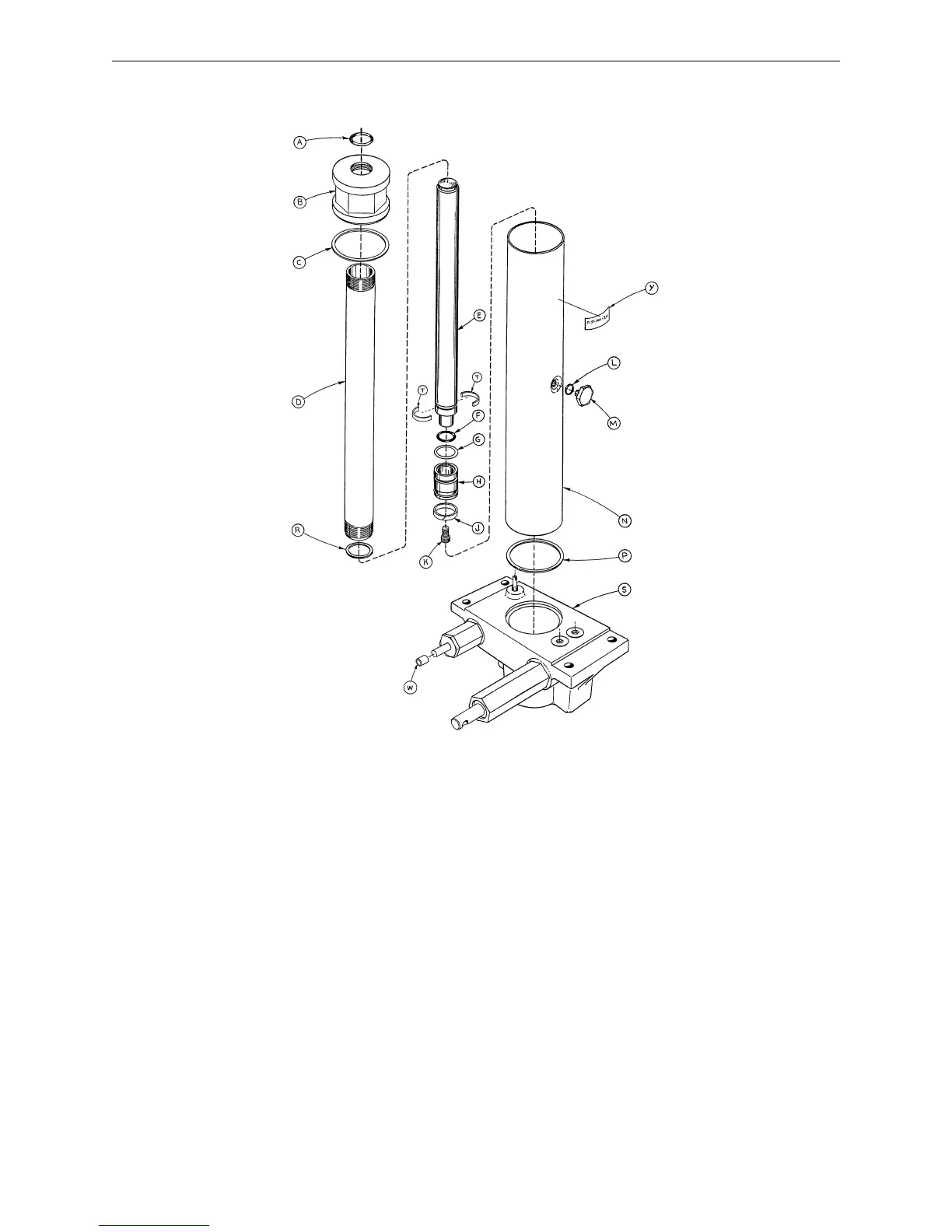

715–1–310* Jack Assembly
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A45–904 O–Ring 1 L 45–110 O–Ring 1
B 715–1–340 Cap Assembly 1 M 388–1–38 Plug 1
C 390–1–243 Gasket 1 N 715–1–322 Reservoir 1
D 715–1–323 Actuator Cylinder 1 P 390–1–244 Gasket 1
E 715–1–325 Actuator 1 R 390–1–238 Gasket, Actuator 1
F45–14 O–Ring 1 S (Page 40) Jack Base Assembly 1
G 926–20–161 Parker Packing 1 T 390–2–139 Retaining Collar 2
H 715–1–331 Piston End 1 W 715–1–333 Rel. Valve Stop Sleeve 1
J 926–20–162 Wear Ring 1 Y 715–100–311 Label 1
K4–14 Soc. Hd. Cap Screw 1
*Replacement Part Number 715–100–310.
