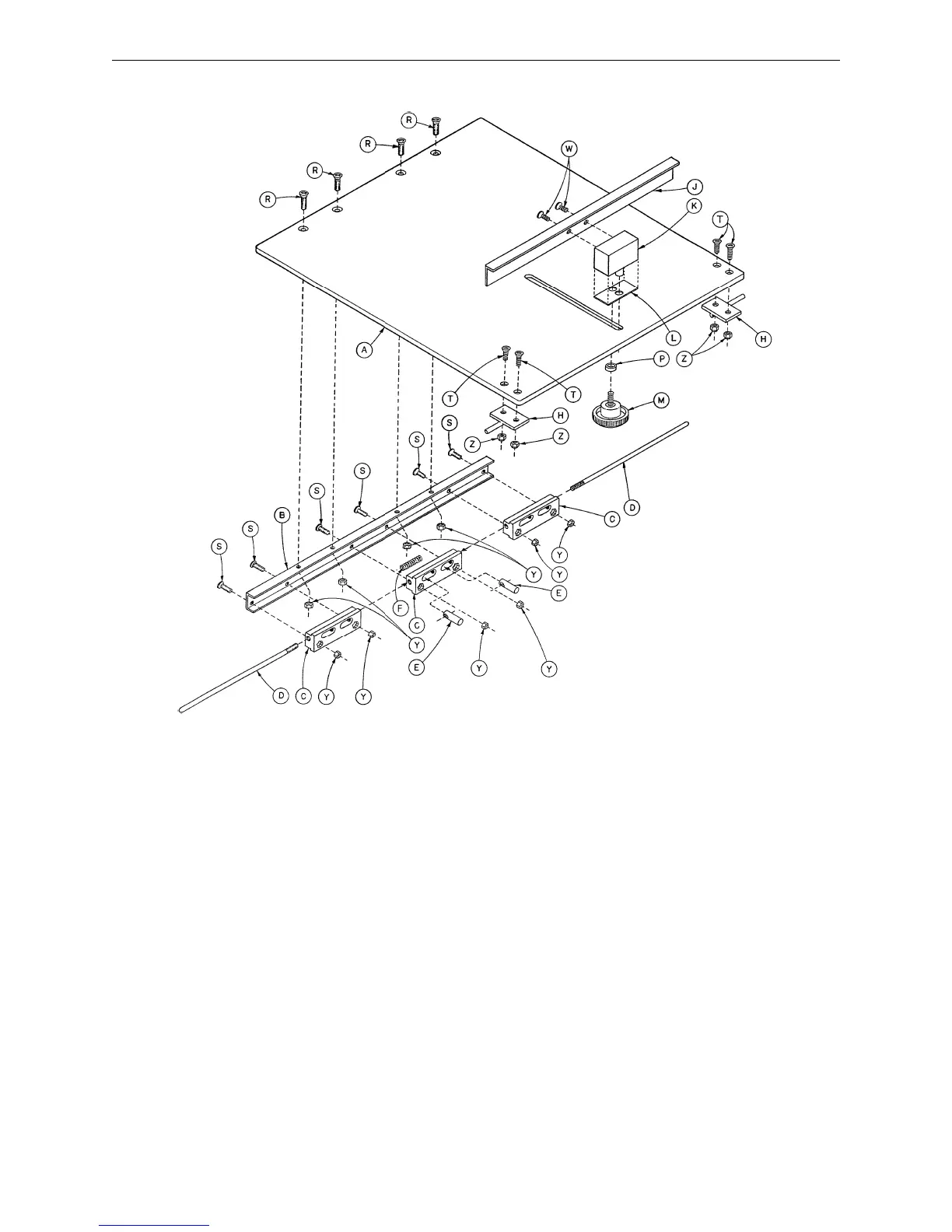

1000–21–1 X–Ray Cassette Assembly
NOTE: This cassette is used only
on model 1000 stretchers with
manual Fowlers.
Item Part No. Part Name Qty.
A 1000–21–2 Tray 1
B 1000–21–3 Bearing Housing 1
C 926–23–62 Post Housing 3
D 1000–21–4 Actuating Rod 2
E 926–23–64 Post 2
F38–122 Compression Spring 1
H 1000–21–9 Pivot Pin Assembly 2
J 1010–23–28 Tray Angle 1
K 1000–21–14 Block Assembly 1
L 926–23–69 Washer 1
M24–10 Knob 1
N 1010–23–19 Operation Label 1
P 1000–21–5 Bushing 1
R1–72 Flat Hd. Mach. Screw 4
S2–10 Rd. Hd. Mach. Screw 6
T1–21 Flat Hd. Mach. Screw 4
W1–20 Flat Hd. Mach. Screw 2
Y16–14 Fiberlock Nut 10
Z16–3 Fiberlock Nut 4
AA 1000–21–25 Specification Label 1
