Stryker 1000 - 716-1-263 End Control Brake Pedal Assembly, Foot; 716-1-269 End Control Brake Pedal Assembly, Head

26

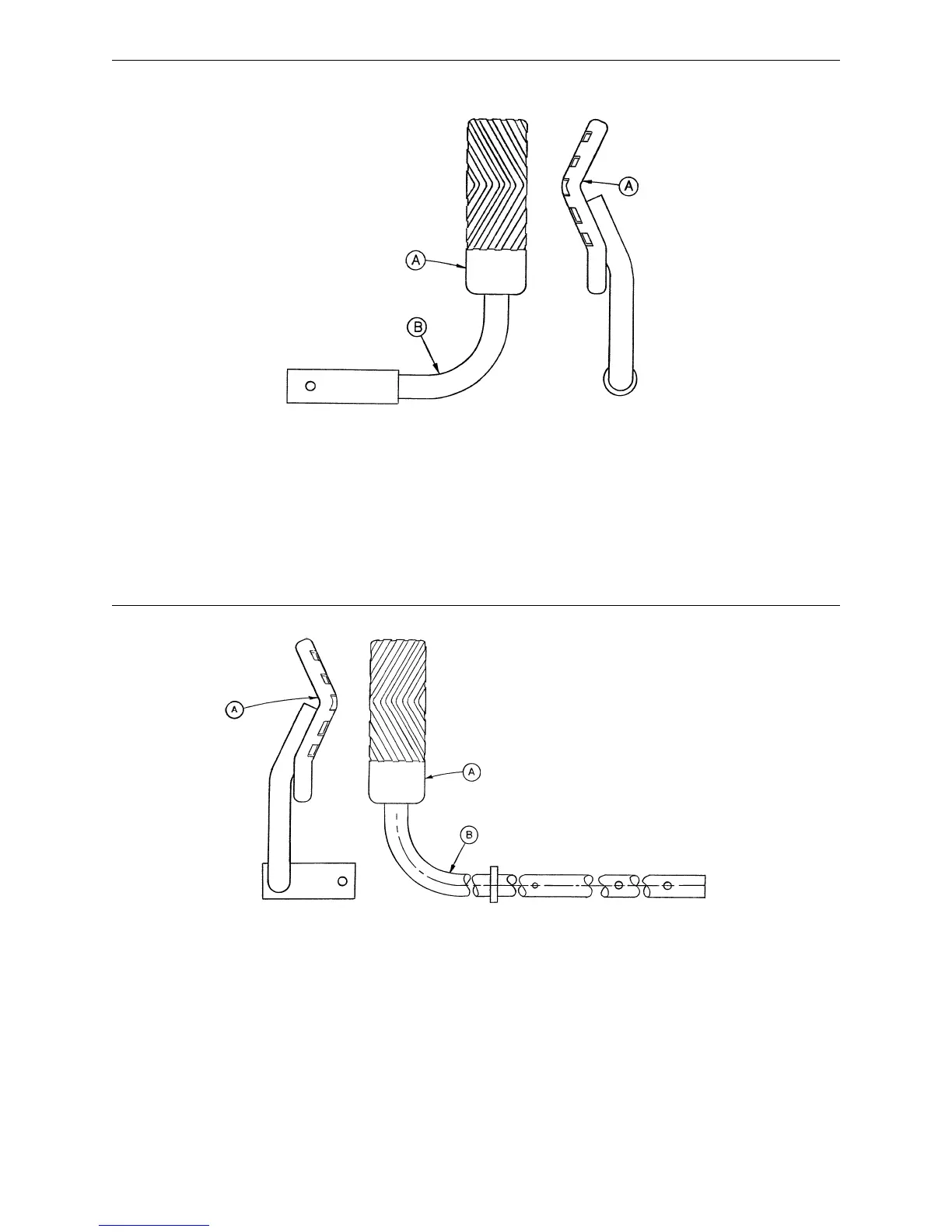

716–1–263 End Control Brake Pedal Assembly, Foot
Item Part No. Part Name Qty.
A 716–1–275 Brake Pedal 1
B 716–1–262 Brake Rod Ass’y, Ft. End 1
716–1–269 End Control Brake Pedal Assembly, Head
Item Part No. Part Name Qty.
A 716–1–275 Brake Pedal 1
B 716–1–267 Brake Rod Ass’y, Welded 1
NOTE
Apply plastic adhesive to the mating surfaces of item A prior to assembly.
