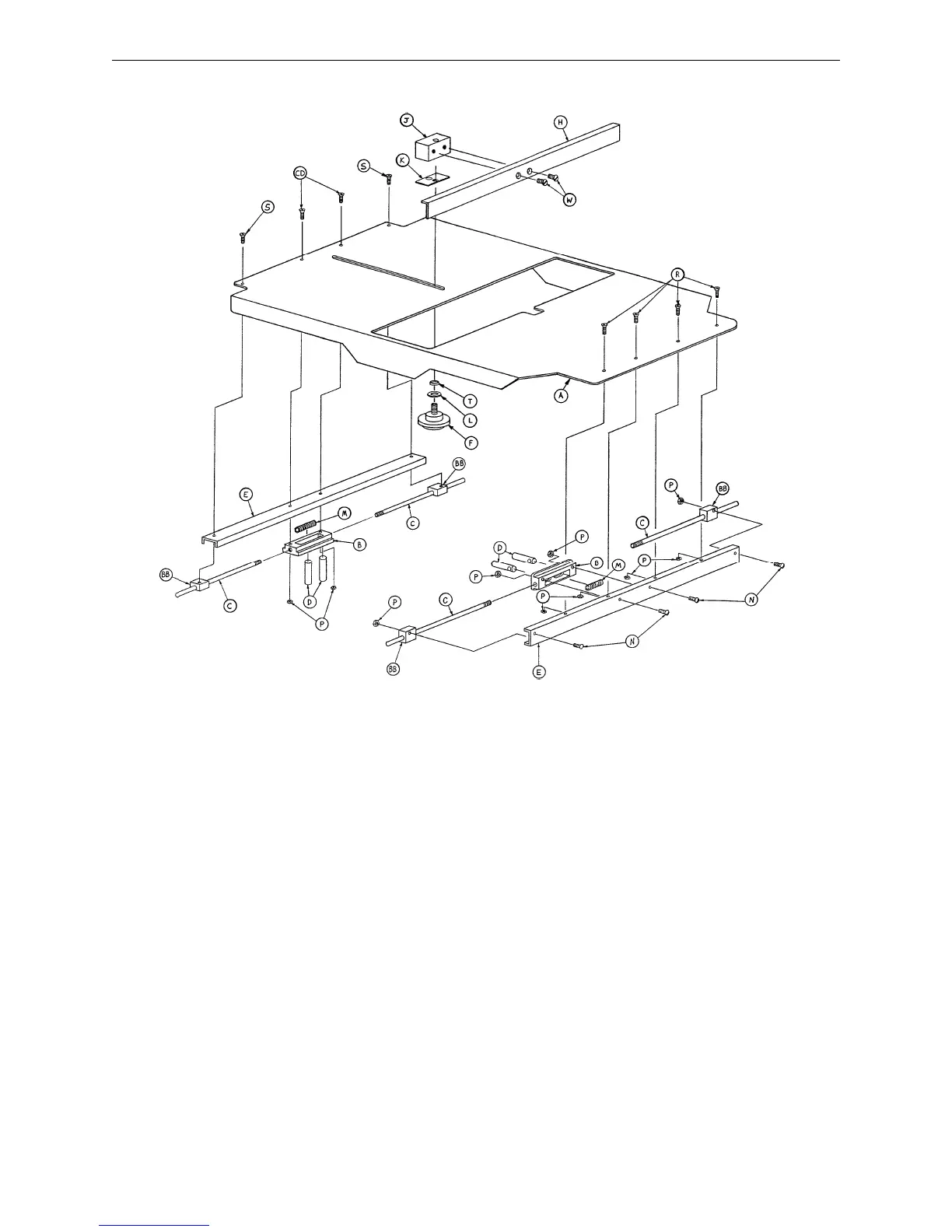

1000–121–1 X–Ray Cassette Assembly
Item Part No. Part Name Qty.
A 1000–121–2 Tray 1
B 926–23–62 Post Housing 2
C 1010–23–24 Actuating Rod 4
D 926–23–64 Post 4
E 1010–23–36 Bearing Housing 2
F24–10 Knob 1
H 1010–23–28 Tray Angle 1
J 926–23–70 Block Assembly 1
K 926–23–69 Washer 1
L14–3 Washer 1
M38–122 Compression Spring 2
N2–10 Rd. Hd. Mach. Screw 4
P16–14 Fiberlock Nut 10
R1–22 Flat Hd. Mach. Screw 4
S1–6 Flat Hd. Mach. Screw 2
T 926–23–71 Bushing 1
W1–20 Flat Hd. Mach. Screw 2
Y 1000–121–5 Specification Label 1
AA 1010–23–19 Operation Label 1
BB 1010–23–37 Rod Guide 4
CC 1010–23–18 Warning Label 1
CD 1–79 Flat Hd. Mach. Screw 2
