Stryker 1000 - 24 Litter Carrier Assembly, with Push Bar; 24 Push Bar Assembly

45

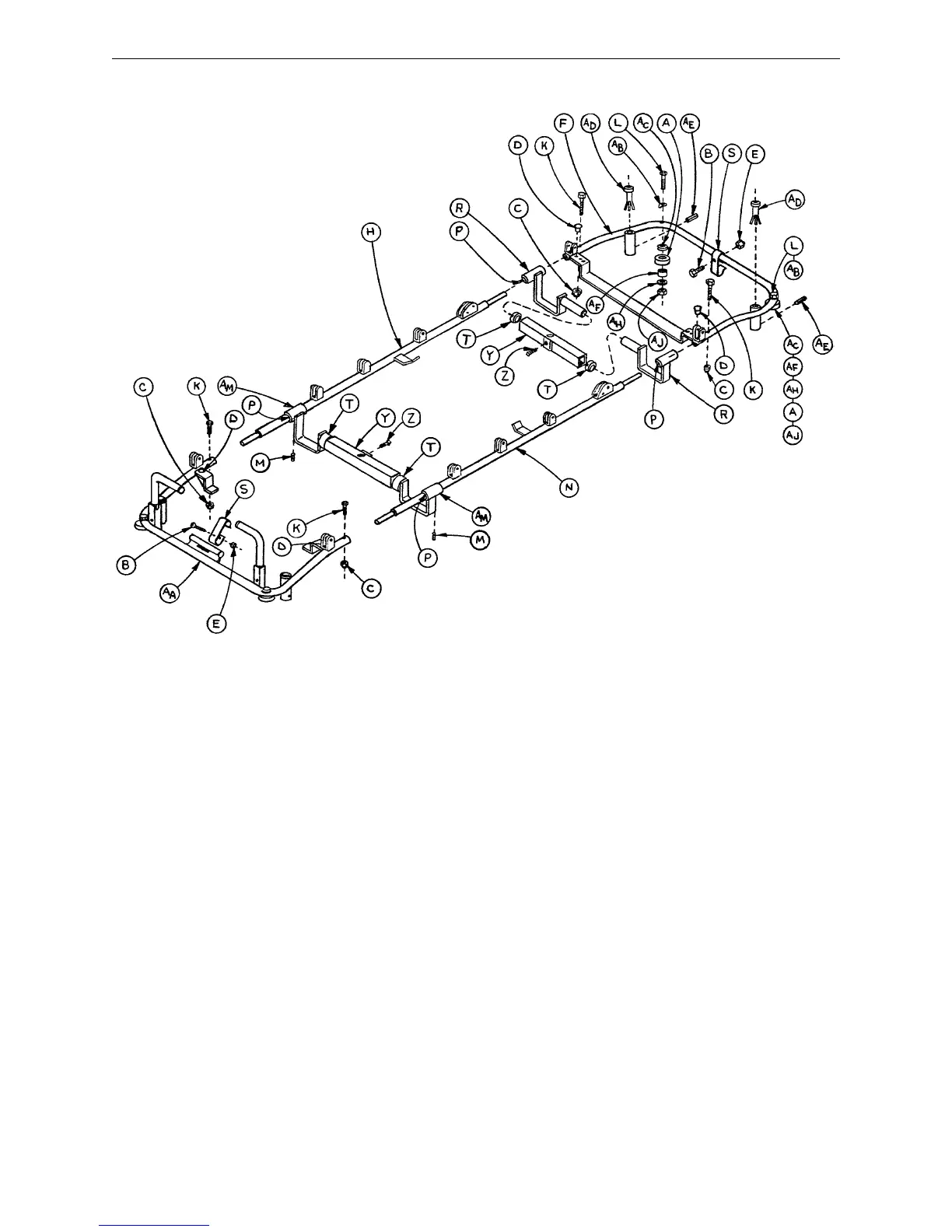

1000–80–5 24” Litter Carrier Assembly, with Push Bar
FOOT END
Item Part No. Part Name Qty.
A 390–38–9 Bumper 2
B2–4 Rd. Hd. Mach. Screw 2
C16–16 Fiberlock Nut 4
D 390–3–34 Nylon Bumper 2
E16–7 Fiberlock Nut 2
F 1000–75–11 U–Section Ass’y, Foot 1
H 1000–75–13 Side Rail Assembly, Left 1
K3–4 Hex Hd. Cap Screw 4
L3–39 Hex Hd. Cap Screw 2
M21–75 Set Screw 2
N 1000–75–14 Side Rail Assembly, Right 1
P 399–16–14 Support Tube Liner 4
R 1000–75–22 Support Tube, Foot 2
S 390–4 Spring Clip 2
T42–7 Collar Assembly 4
Y 390–9–13 Top Support Tube Ass’y2
Z46–1 Set Screw 2
AA (page 46) Push Bar Assembly, Head 1
AB 390–38–3 Formed Washer 2
AC 390–38–5 Support Plate 2
AD 921–36–21 I.V. Pole Insert 2
AE 26–111 Roll Pin 2
AF 390–38–8 Spacer 2
AH 11–4 Flat Washer 2
AJ 16–12 Flexlock Nut 2
AM 1000–75–45 Bracket Ass’y, Head 2
