48

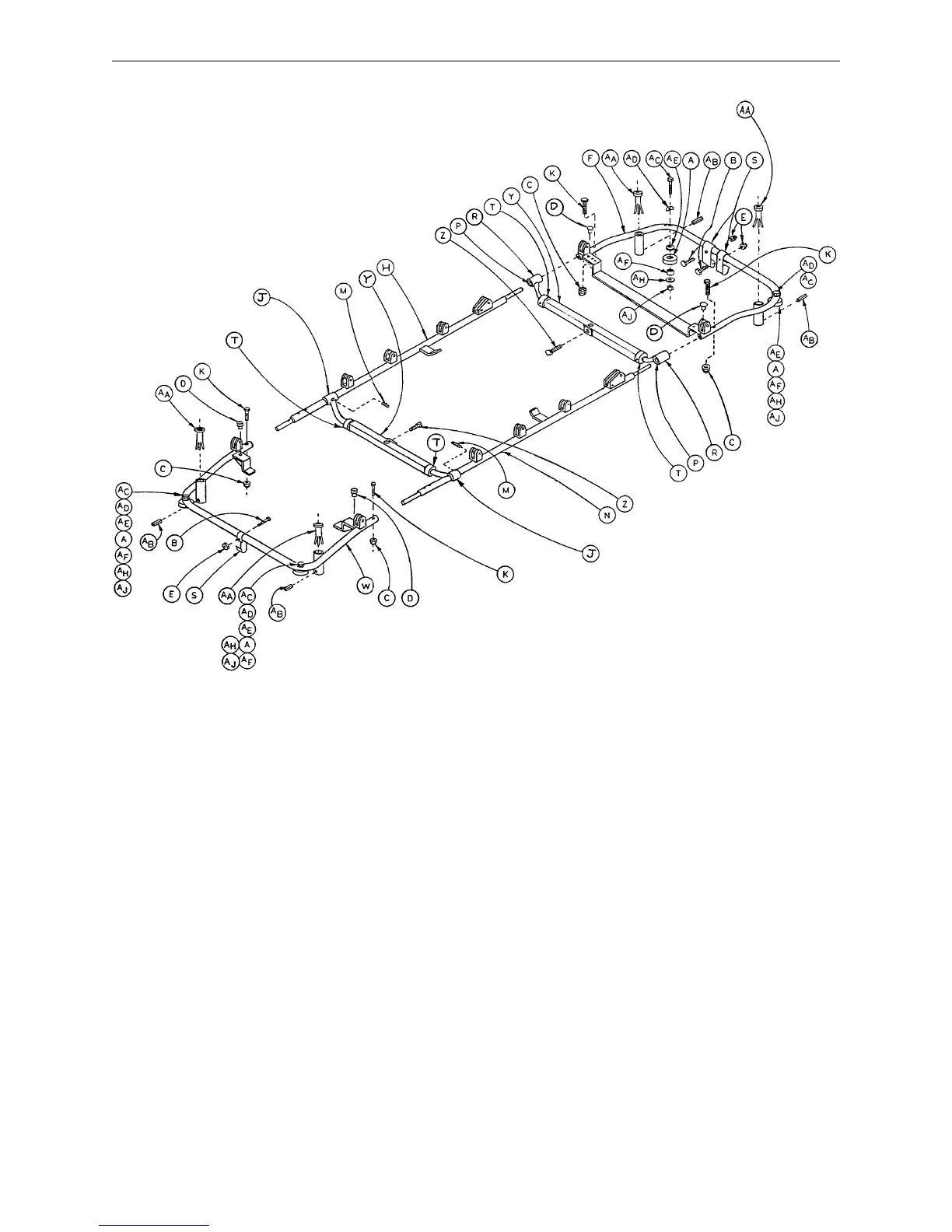

1000–143 24” Litter Carrier Ass’y – Knee Gatch Litter
FOOT
END
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 390–38–9 Bumper 4 S 390–4 Spring Clip 3
B2–4 Rd. Hd. Mach. Screw 3 T 938–1–401 Collar Assembly 4
C16–16 Fiberlock Nut 4 W 1000–75–10 U–Section Ass’y, Head 1
D 390–3–34 Nylon Bumper 4 Y 399–9–13 Top Support Tube Ass’y2
E16–7 Fiberlock Nut 3 Z 46–1 Set Screw 2
F 1000–75–11 U–Section Ass’y, Foot 1 AA 921–36–21 I.V. Pole Insert 4
H 1000–75–13 Side Rail Assembly, Left 1 AB 26–111 Roll Pin 4
J 390–9–7 Support Tube Assembly 2 AC 3–39 Hex Hd. Cap Screw 4
K3–4 Hex Hd. Cap Screw 4 AD 390–38–3 Formed Washer 4
M21–75 Set Screw 2 AE 390–38–5 Support Plate 4
N 1000–75–14 Side Rail Assembly, Right 1 AF 390–38–8 Spacer 4
P 399–16–14 Support Tube Liner 4 AH 11–4 Flat Washer 4
R 390–9–9 Support Tube, Foot End 2 AJ 16–12 Flexlock Nut 4
To Next Page
