55

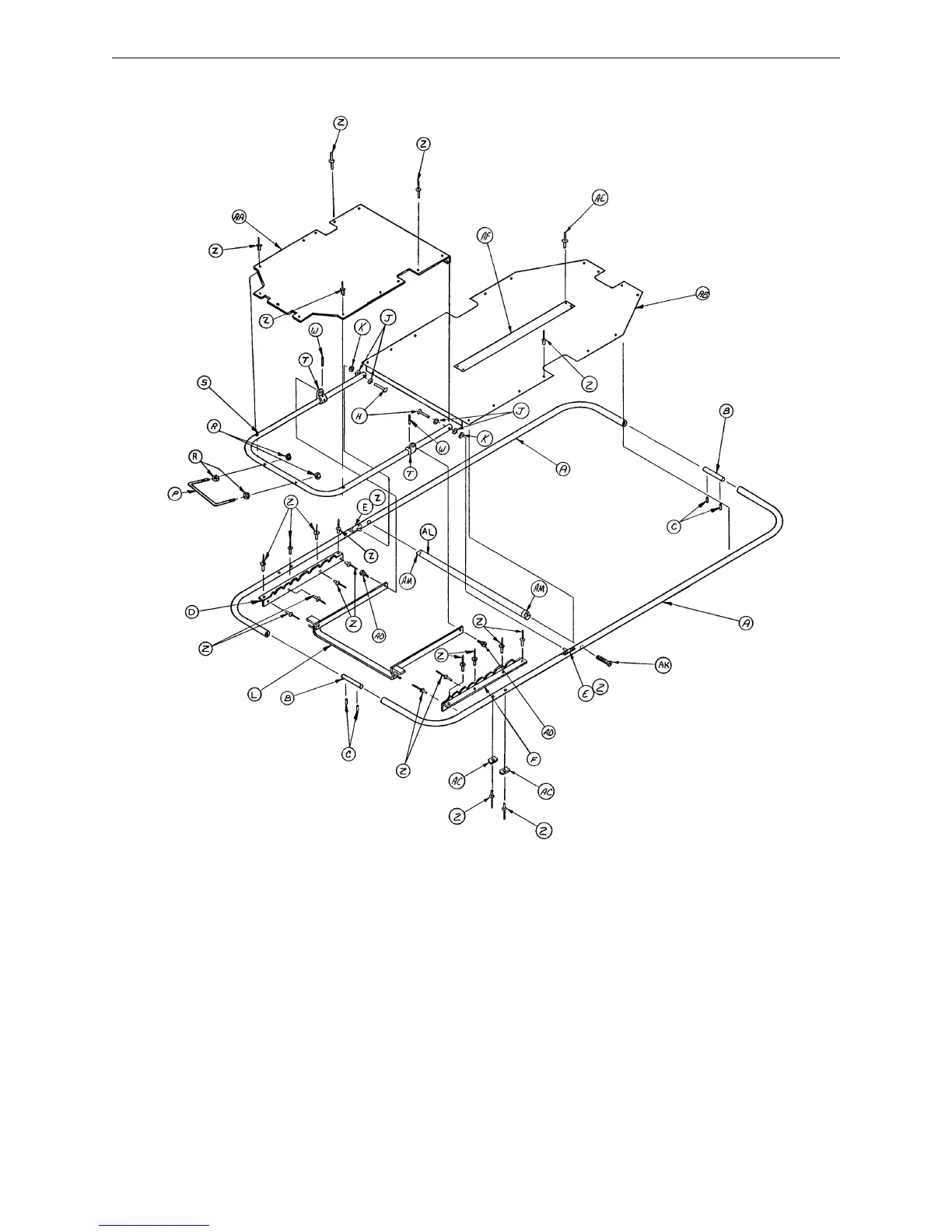

1000–41 24” Alum. Manual Fowler/Stat. Foot End Litter Ass’y
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 390–24–7 Litter Frame Tube 2 T 940–2–134 Hinge Bracket 2
B 381–24–6 Connector Pin 2 W 26–57 Roll Pin 2
C26–12 Roll Pin 4 Z 25–55 Pop Rivet 52
D 381–20–3 Position Bracket Ass’y, Lt. 1 AA 1000–42–7 Head End Top 1
E 378–24–15 Pivot Plate Assembly 2 AB 390–24–5 Foot End Top 1
F 381–20–4 Position Bracket Ass’y, Rt. 1 AC 378–24–42 Formed Washer 4
H25–17 Semi–Tubular Rivet 2 AD 8–13 Shoulder Bolt 2
J14–4 Nylon Washer 4 AE 25–40 Pop Rivet 4
K28–28 Retaining Ring 2 AF –––– Velcro Pile 1
L 381–24–2 Fowler Lock Assembly 1 AK 1–34 Flat Hd. Mach. Screw 2
P 460–4–39 Posterior Handle 1 AL 960–1–7 Crossbar 1
R15–12 Hex Nut 4 AM 940–2–10 Crossbar Mount 2
S 1000–41–14 Fowler Frame 1
