58

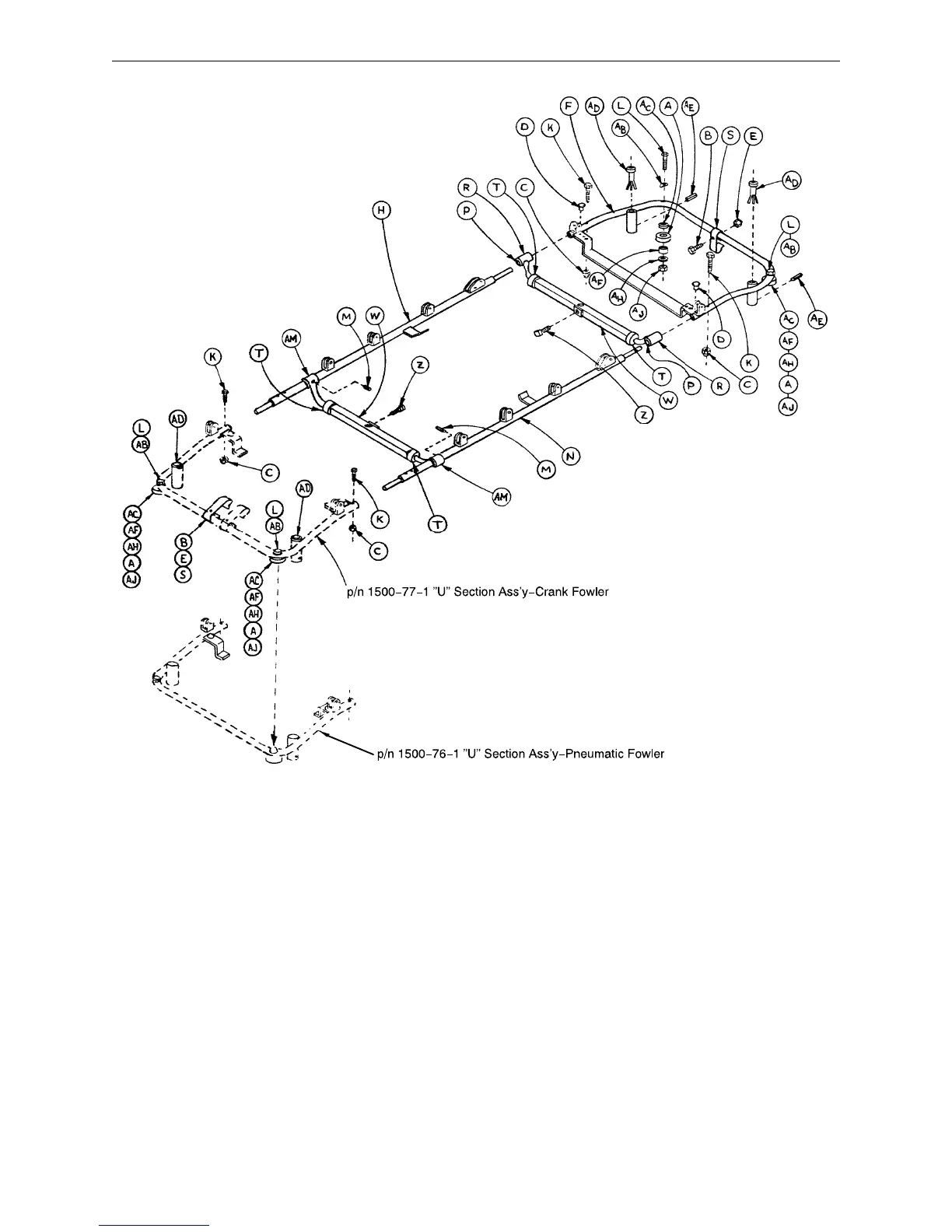

1500–75–5 29” Litter Carrier Assembly, Crank Options
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 390–38–9 Bumper 4 S 390–4 Spring Clip 2
B2–4 Rd. Hd. Mach. Screw 2 T 42–7 Collar Assembly 4
C16–16 Fiberlock Nut 4 W 390–9–13 Top Support Tube Ass’y2
D 390–3–34 Nylon Bumper 4 Z 46–1 Set Screw 2
E16–7 Fiberlock Nut 2 AB 390–38–3 Formed Washer 4
F 1500–75–9U–Section Ass’y, Foot 1 AC 390–38–5 Support Plate 4
H 1000–75–13 Side Rail Assembly, Left 1 AD 921–36–21 I.V. Pole Insert 4
K3–4 Hex Hd. Cap Screw 4 AE 26–111 Roll Pin 4
L3–39 Hex Hd. Cap Screw 4 AF 390–38–8 Spacer 4
M21–75 Set Screw 2 AH 11–4 Flat Washer 4
N 1000–75–14 Side Rail Assembly, Right 1 AJ 16–12 Flexlock Nut 4
P 399–16–14 Support Tube Liner 4 AM 390–9–7 Support Tube Assembly 2
R 390–9–9 Support Tube, Foot 2
