71

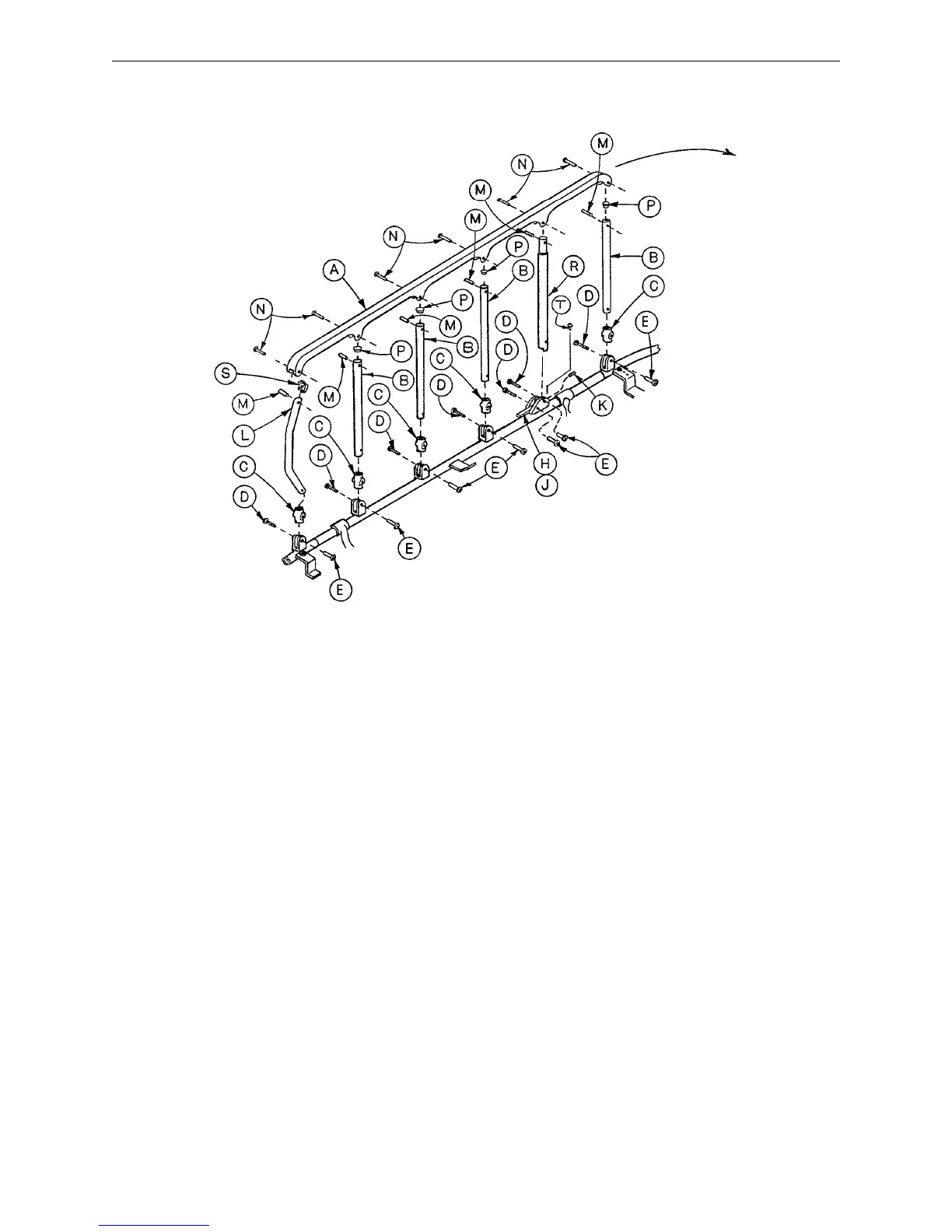

1000–160–1 & 1000–160–2 Siderail Ass’y, Left & Right
FOOT
END
FOLD
DOWN
(Left Side is Shown)
Item Part No. Part Name Qty.
A 1010–26–15 Top Rail 1
B 1010–26–83 Upright 4
C 721–26–69 Upright Sleeve 5
D4–136 Button Hd. Cap Screw 7
E 721–26–66 Pivot Screw 7
H 721–26–74 Lock Handle 1
J38–220 Compression Spring 1
K21–17 Set Screw 1
L 1010–26–84 Upright, Bent 1
M 1010–26–82 Spacer 6
N25–106 Semi–Tubular Rivet 6
P 1010–26–10 Round Hole Plug 4
R 1010–26–85 Upright Latch 1
S 1010–26–12 Bent Spindle Stop 1
T37–74 Hole Plug 2
To Next Page
