www.stryker.com 6100-109-005 REV B 1-27
Operation
Installing the defibrillator platform (Continued)
6. Place the latch hook (C) under the litter frame or foot end fastener and push the tab (D) up until it locks into place
on one side with an audible click. Repeat on the other side. For Power-LOAD compatible cots, if equipped, you
must lengthen and attach the straps to the foot end fastener (Figure 1-21 on page 1-27).
A
B

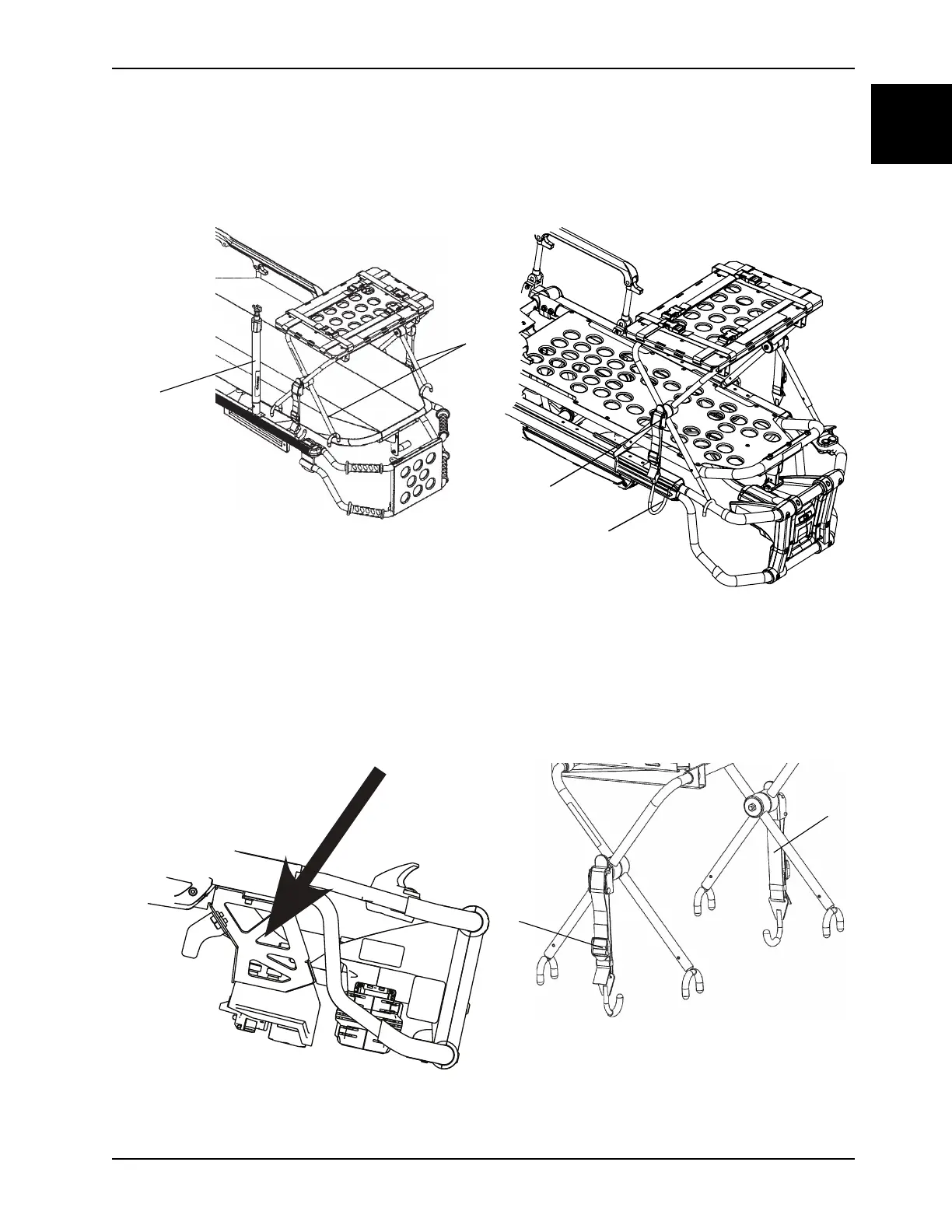

Figure 1-19: Raise IV pole and position defibrillator
tray
Figure 1-20: Latch hook placement
7. Make sure that the defibrillator platform is secured to the product.
8. Place the defibrillator on the defibrillator platform.
9. Secure the straps (E) to hold the defibrillator on the defibrillator platform (Figure 1-22 on page 1-27).
Figure 1-21: Tab
E
F
Figure 1-22: Attach defibrillator platform to the cot
