14

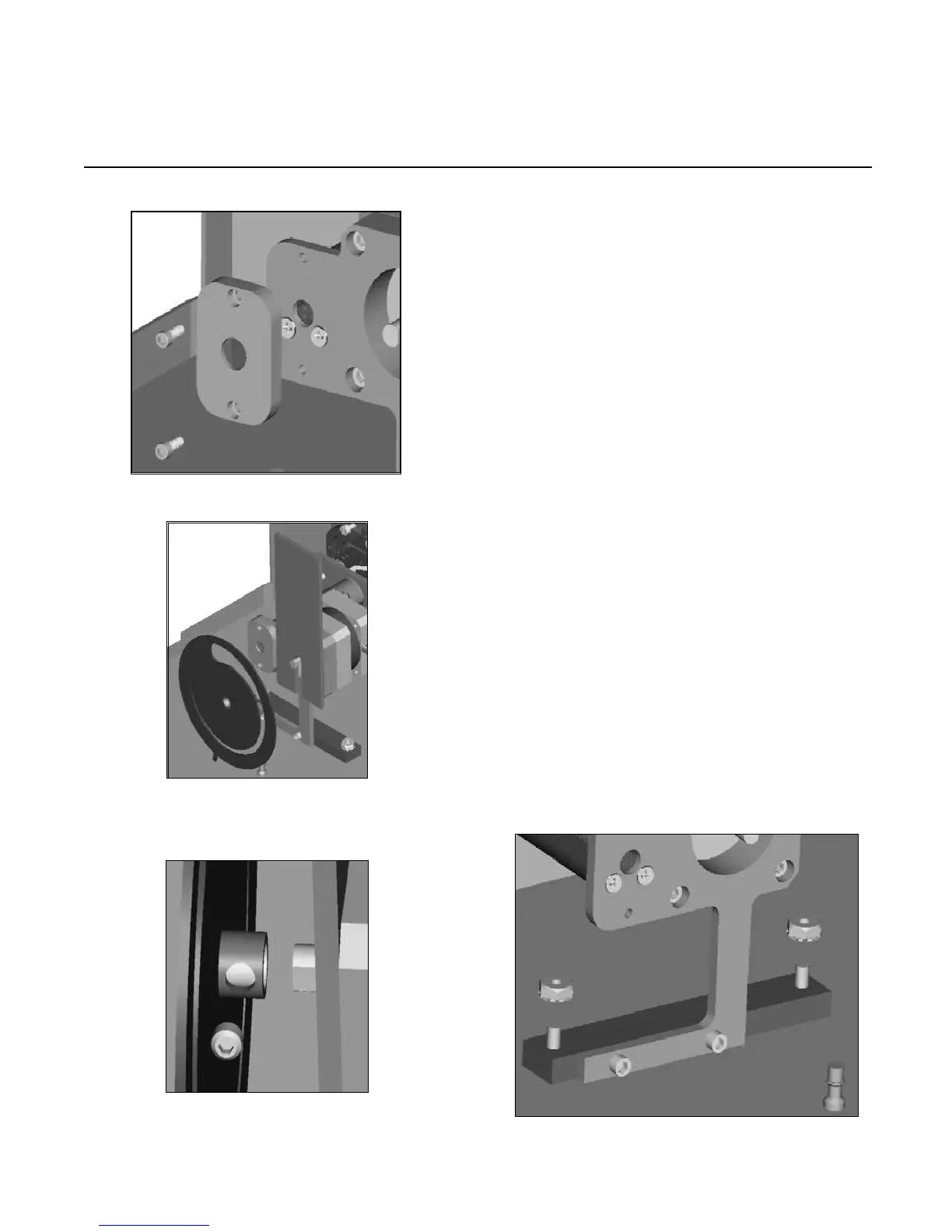

4.4.5 Motor Mount Replacement
• Remove power cord and console cover (procedure 4.2).
• Remove the bulb (procedure 4.4.1).
• Remove the hot mirror (procedure 4.4.4).
• Remove the 2 Phillips screws from beneath the hot mir-
ror.
• Remove the 2 nuts.
• Remove the motor wire harness from the control board.
• Remove the motor mount assembly with the motor
attached, and replace.
• Replace the wire harness.
• Reinsert the 2 nuts and 2 Phillips screws beneath the hot
mirror.
• Replace the hot mirror, bulb, and cover.
