Studer Innotec SA
RCC-02/-03
User manual V4.4.0 27
11
INFORMATION ON THE OPERATING MODE OF THE
INSTALLATION

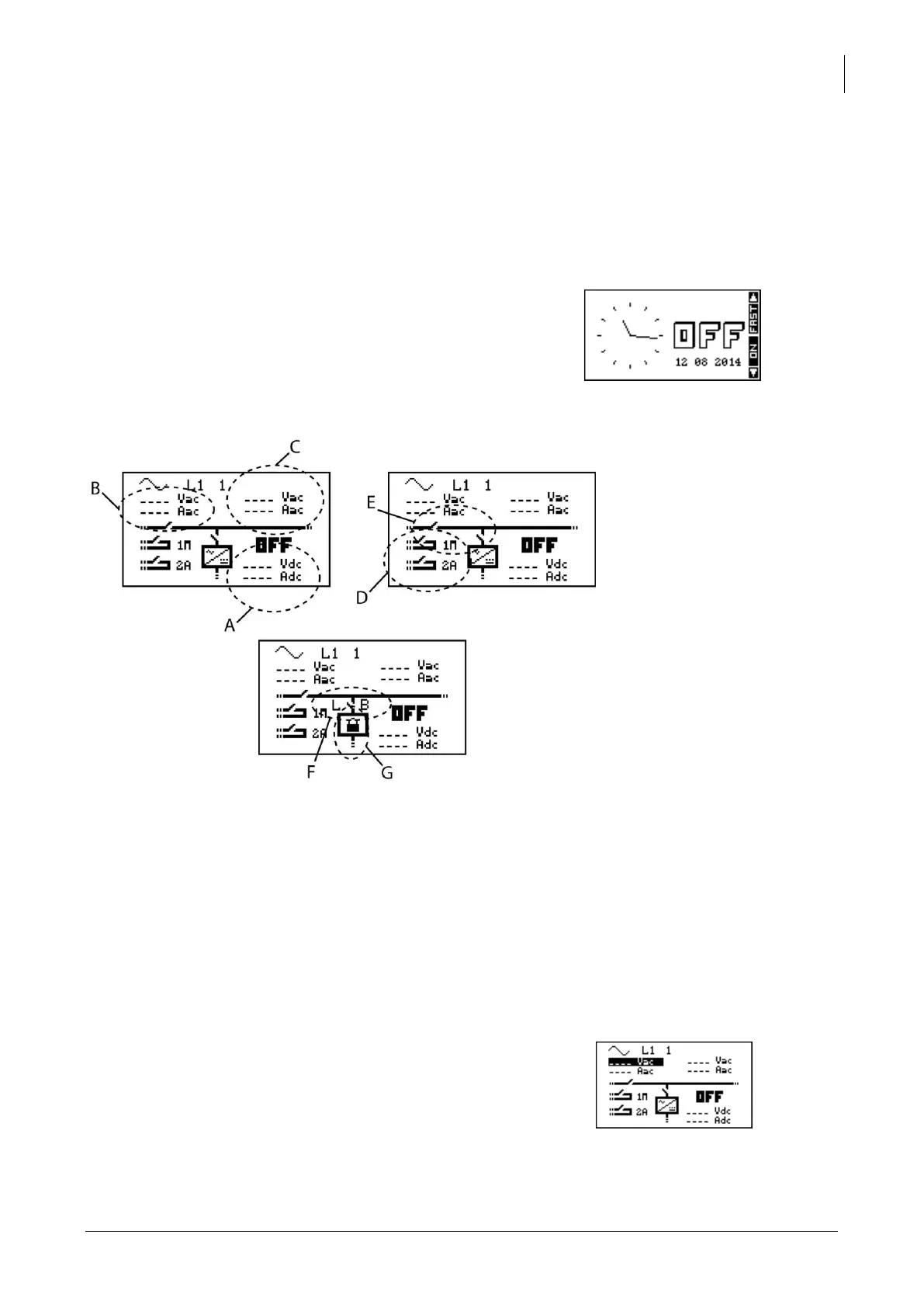

There are two different views for displaying information on the system: a simplified and a configurable
display. When one of these two displays is visible, it is possible to activate or deactivate the system.
For further information, please refer to the paragraph on activating and deactivating the combi
Xtender.
The simplified display only indicates the current time and
the mode of the Xtender (ON or OFF)
The configurable display shows the system in its entirety, represented by a synopsis of distinct
information blocks.
A
Information on the battery
B
Information on the grid input
C
Information on the grid output
D
Information on the auxiliary contacts
E
Information on the transfer and output relays
F
Information on the state of the maximum current of the source (Input limit) (L) and of the
Smart-Boost (B: Boost activated, L: input limited)
G
Information on possible locking of the functions inverter, charger and transfer (G)
Two pieces of information related to blocks A, B and C may be viewed simultaneously. To change
displayed information, proceed as follows:
To escape at any time, use the key ESC to return to the starting display.
Press the key SET (one of the pieces of information is
displayed in reverse video).
Go to the value to be changed by using the UP and DOWN
keys.
Enter into modification by using the key SET. You may now
view the values that can be displayed in this area.
Using the keys UP and DOWN, select the new information
that you want to see appearing.
Confirm your selection by using the key SET.
