SubGear XP-H - Quick Reference and Operating Scheme; Operating Scheme Overview

5
English

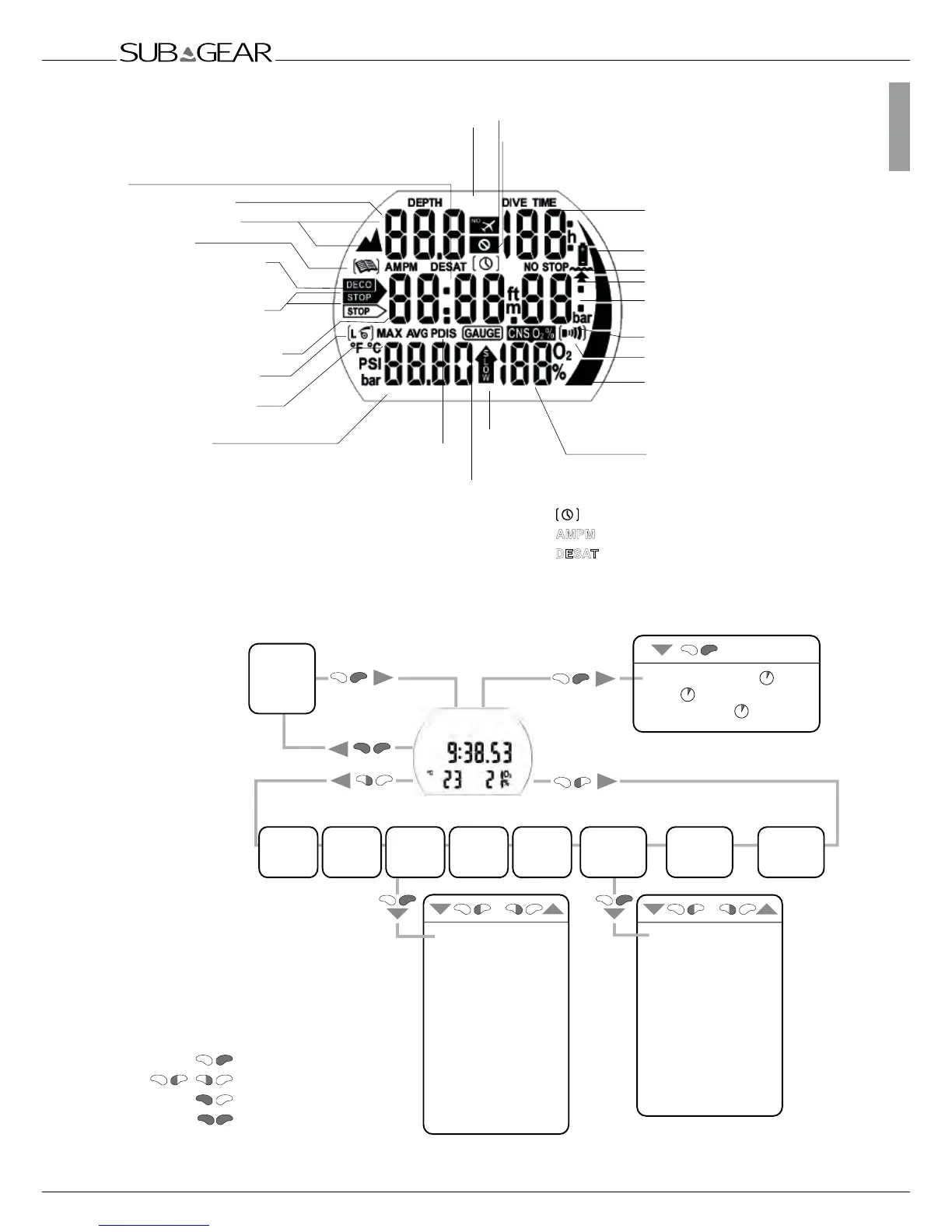

Quick reference
Time of day / Date
Decompression depth
Desaturation time (DESAT)
Duration of no-dive warning
Duration of surface interval
Current depth
Do not fly icon
No-dive warning
Battery icon
No-stop indicator
Ascent time icon
No-stop time / Total ascent time
Partial pressure of oxygen ppO
2
Alarm clock icon / Infrared icon
Nitrogen loading bar (dive)
Residual Nitrogen bar (surface)
Desaturation
Battery condition
O
2
mix
Oxygen toxicity CNS O
2
%
Ascent rate
Too fast
ascent
Gauge icon
Dive time / No-fly time /
SOS duration
Repetitive dive number
Altitude sections
Log Book
Decompression stop
obligation / Ignored
decompression stop
Decompression stop
indicator
Decompression stop duration
O
2
mix icon (input)
Setting icon
Service icon
Tank pressure
Max depth
Maximum Operating Depth (MOD)
Dive number
Icon for safety stop timer
AMPM AM/PM icon
DESAT
Desaturation icon
Operating scheme
"->" means "more information at page"
/
/
Enter
/ Scroll / Change setting
Backlight
Exit
Off
Time of day display
• (Desat. time CNS O
2
% ) ->14
• Date
->14
• Battery condition
->14
• Depth alarm -> 45
• Dive time alarm -> 46
• Safety stop time -> 46
• ppO2 max -> 46
•
Tank pressure alarms -> 46
• Reset to air -> 46
• PDIS -> 46
• Unit system -> 46
• Unit system, tank -> 47
• Salt water -> 47
• Light time -> 47
• Attention beep -> 47
• Water contacts -> 47
• Reset desaturation -> 48
• Alarm clock ->48
• UTC time zone ->49
• Time of day ->49
• Date ->49
• 24h / AM PM ->49
• LCD contrast ->49
• IrDA speed ->50
• Sound on / off ->50
• Electronic ID ->50
Set 1
->45
Logbook
->43
Dive
planner
->42
Without operation the display switches automatically back to the time of day display and after 3 minutes
the display switches off. See also page 13.
Quick reference
O
2
mix /
ppO
2
max
->20
MB level
->31
Gauge
mode
->29
Altitude
meter
-> 27
Set 2
->48
MB level symbol
PDIS icon
