1.4 ASSEMBLY

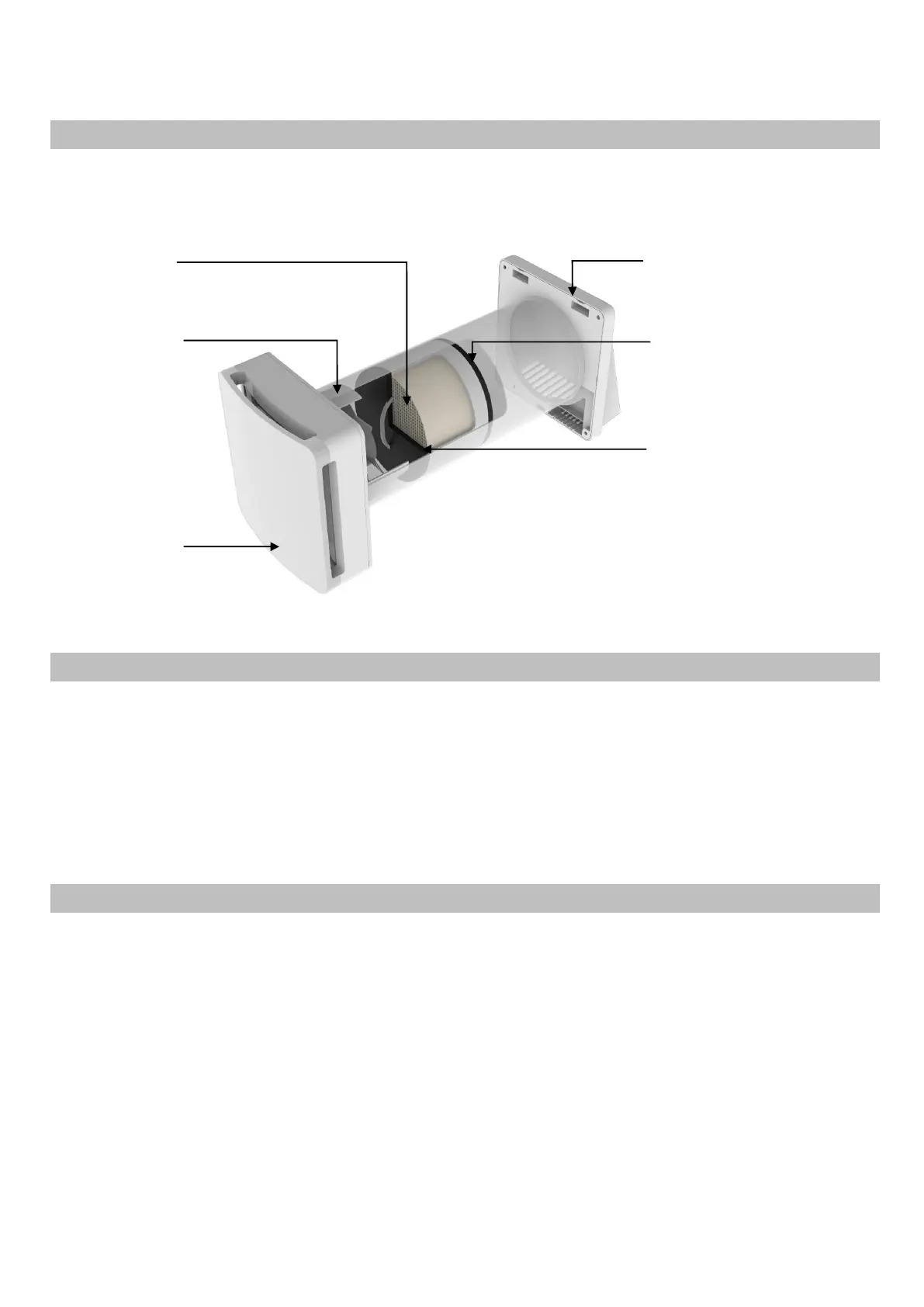

The product is constituted by a main operating unit with wall joint to be placed inside the room, a
recessed tube containing the ceramic exchanger and filters, an external conveyor with wall joint.
2.0 GENERAL INSTRUCTIONS OF INSTALLATION
The device installation is intended only and exclusively to qualified personnel. Make sure that the
network connection in the place of installation is disconnected before the electrical installation
work. The device must not be installed near curtains, draperies, etc., as these may disrupt its proper
operation. Make sure that, once the products is installed, the fan blades are placed at a distance
approximately than 2.30 m from the floor. Before assembling the product, carefully read the
instruction manual and make sure that you have all the necessary materials for installation. Stick to
the instructions given in the instruction manual.
2.1 INSTALLATION
After having identified the area intended to the product installation, mark the center of the hole to
be made on the wall. Make sure that, with respect to the center of the hole for the recessed tube,
there is free space on the internal and external walls for a radius of 15 cm from the center - these
correspond to the volume of the product. Make sure, therefore, that within this area, there is no
interference with non-removable walls and objects at minimum of 200mm, so in total 380mm from
the diameter hole. The diameter of hole to be made is Ø160mm.
