Drill the holes and insert the dowels for the wall mounting.
Screw the particular external wall mounting (4e) to the outer wall.

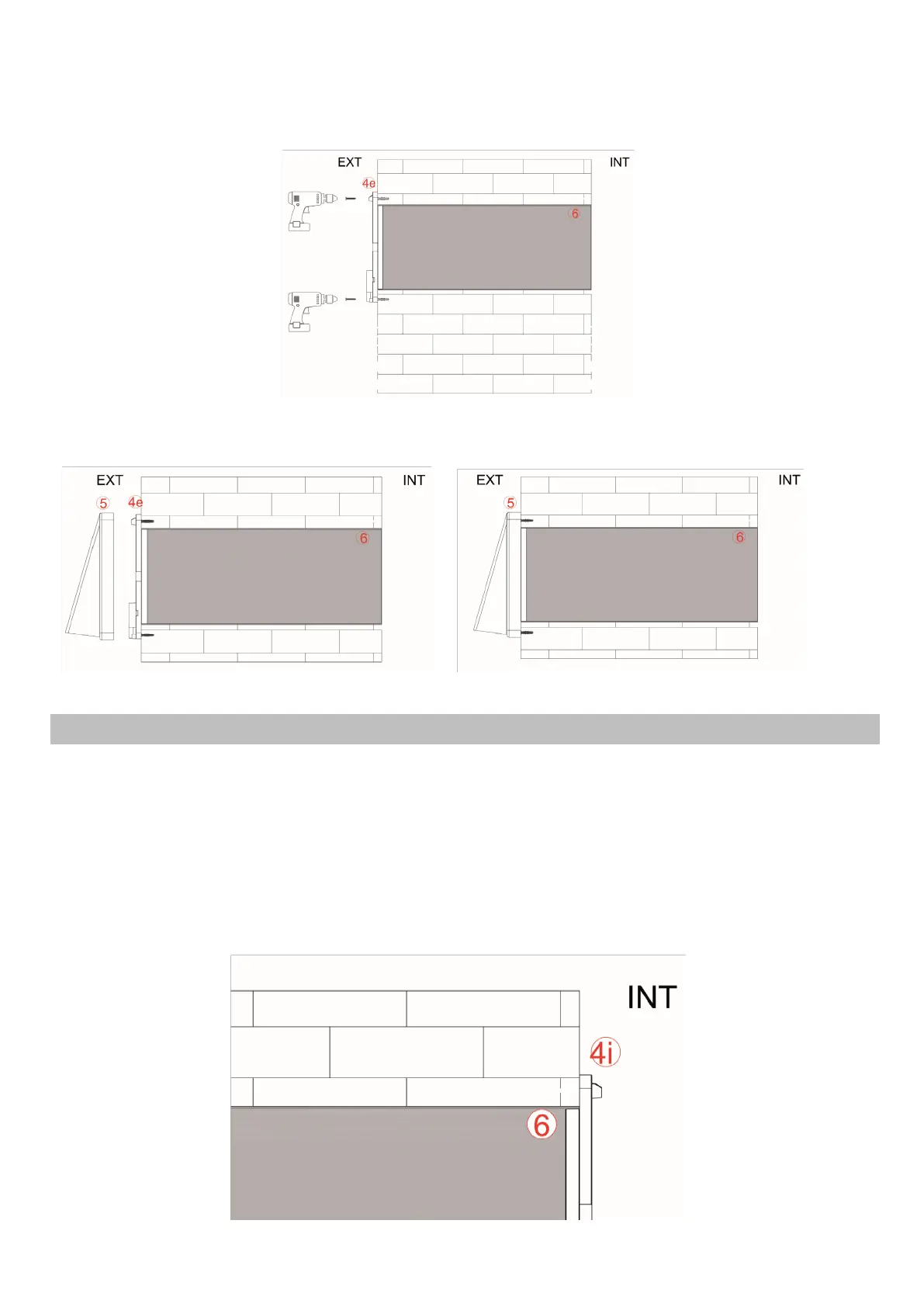

Attach the external conveyor snap-lock (5) to the external wall mounting (4e), as shown in the
images:
3.0 ELECTRICAL PREPARATION
The installation of the device is intended solely and exclusively to qualified personnel.
Make sure that the power supply of the room of installation complies with the power declared on
the data label of the product.
Make sure that the network connection in the room of installation is disconnected before the
electrical installation work.
Identify the version of the possessed product and read thoroughly all the instructions relevant to
the electrical connections of this version.
