87

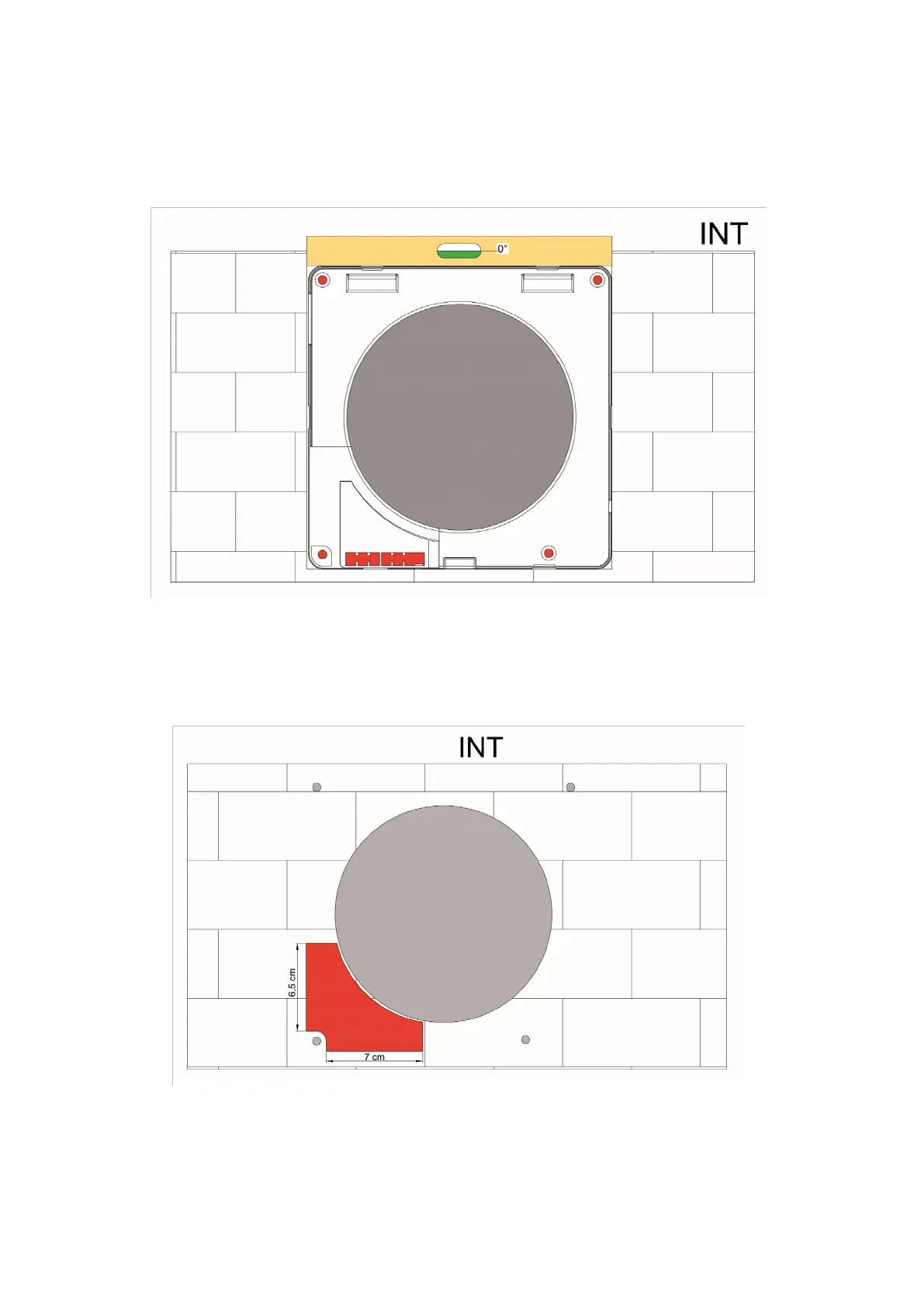

Like in case of the tracing of outer holes, first insert the diameter of centering of the particular
internal wall mounting (4i) in the recessed tube (6), as shown in the image above.
With the help of a level measuring tool trace and drill the 4 holes for the wall attachment of the
particular internal wall mounting (4i).
Unlike the external wall mounting, on the inner wall, it is necessary to connect the supply
conductors to the stripped cables supplied with the product.
Get the release of the cables from the wall, in correspondence with the highlighted area.
Once the dowels are inserted, before proceeding with mounting, enable the electrical connection,
according to the product version you have. The cable for electric connection must fulfill the
following requirements: no special qualities, must not be shielded and must have a 0,25 mm²
minimum section.
