93
3.7 POWER SUPPLY CONNECTION WIRELESS VERSION
Before proceeding with connection, make sure that the power supply cables (line and neutral) are
present in the area specially formed in the wall.
Attention: In case of installation of several products in the MASTER-SLAVE configuration, in
order to achieve optimal communication between various units, make sure that the
maximum distance of 20 m between one device and the other is maintained. The type of
walling material (eg. bricks, reinforced concrete), may influence the distance.

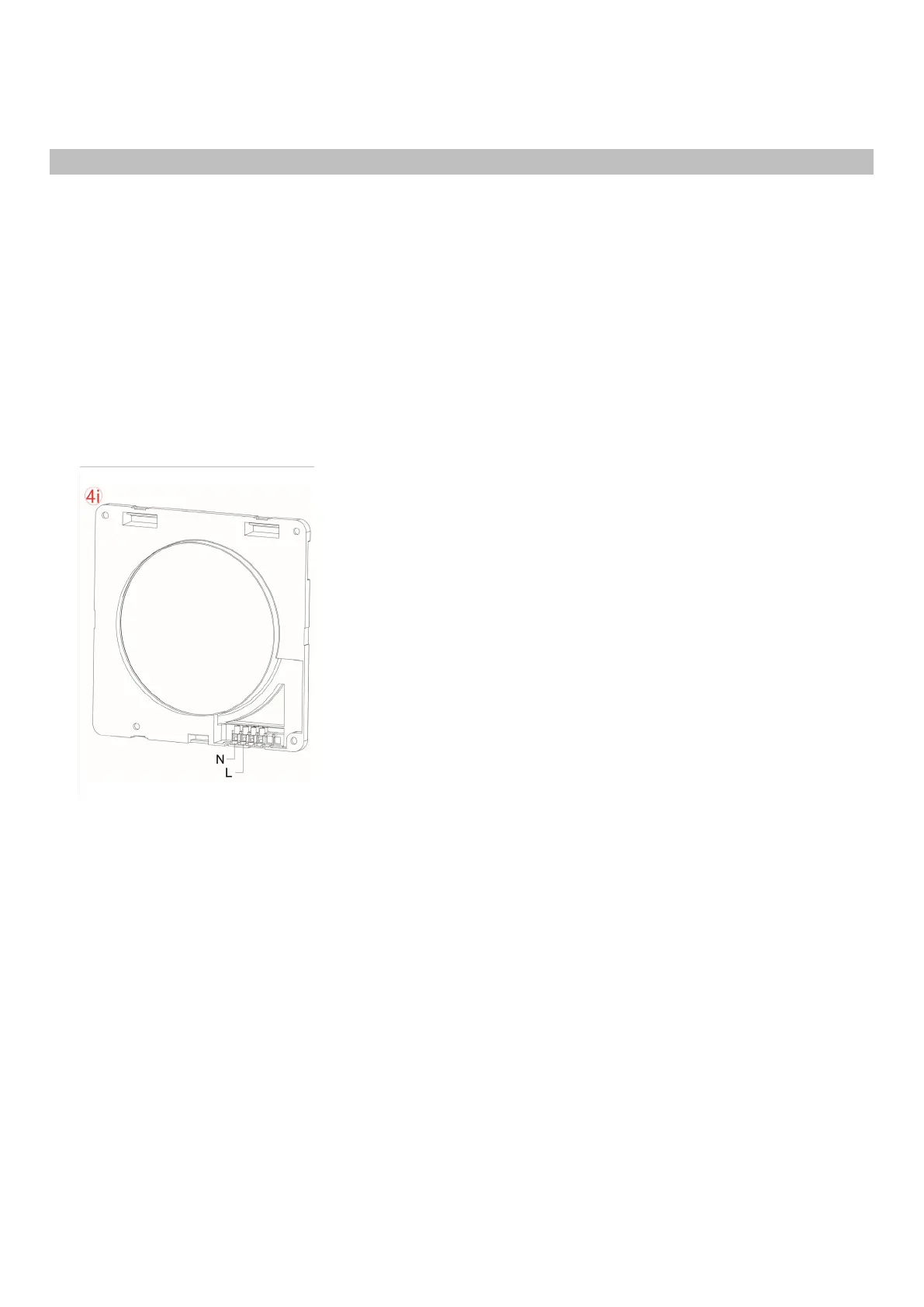

Extract the particular internal wall mounting (4i) and
the tools necessary for connecting the power supply
network with the stripped wires provided in the
special compartment.
Connect, in an appropriate and safe manner, the
network power supply cables with those from the
terminal block. Indications "N" and "L".
It is possible to switch the wall ON / OFF commands
and select speed remotely. To operate the product
through
recessed switches, it is necessary that , during
operation, the switches on the product are always
turned on 1, as shown in the image (Y).
To turn the product on via wall switch, connect a
bipolar switch in series to the "L" and "N" extremities,
as shown in the image (a).
It is also possible to connect the product to the home
automation network, by serializing the power supply
so as to enable the on-off programming.
Picture: Rear plate Interior wall-fixing (see wall-fixing)
Make the connections like in the image below:
