Sukup Sweepway - Sump Opener for 10 Sweepway

Installation
37
SUMP OPENER FOR 10” SWEEPWAY
REF. #
DESCRIPTION
QTY.
10" PART #
Complete rack & pinion opener assembly
1
E5444
1
Opener handle
1
E5967
2
Rack & pinion opener assembly, 10"
1
E5969
3
Center sump connector
1
E5997
4
Intermediate sump connector
1
E5998
5
Bolt, 3/8 - 16 x 3”
6
J0660
6
Hex nut, 3/8” - 16
6
J1020
7
Quick-release pin, 3/8 x 1"
2
J1554
8
Rubber cap, 1"
1
J2232
Installation instructions:
1. With sumps fully closed, loosely attach intermediate sump and center sump connectors (4 & 3) to
proper pull rod.
2. Bolt rack and pinion opener assembly (2) to sleeve connector using three bolt holes closest to bin
wall.
3. Attach center sump connector (3) to opener using a 3/8 x 1" quick-release pin (7).
4. Attach rubber cap (8) to handle (1) and attach handle to opener.
5. Make sure sump gates are completely closed and then attach connectors to one another using a
3/8" x 1" quick-release pin (7).
6. Tighten setscrews in shaft collars.
Open sump gates by rotating handle clockwise. Sump gates should open and close fully.
IMPORTANT: Always open and unload from center sump first. Never open intermediate sumps until
grain stops flowing from center sump.

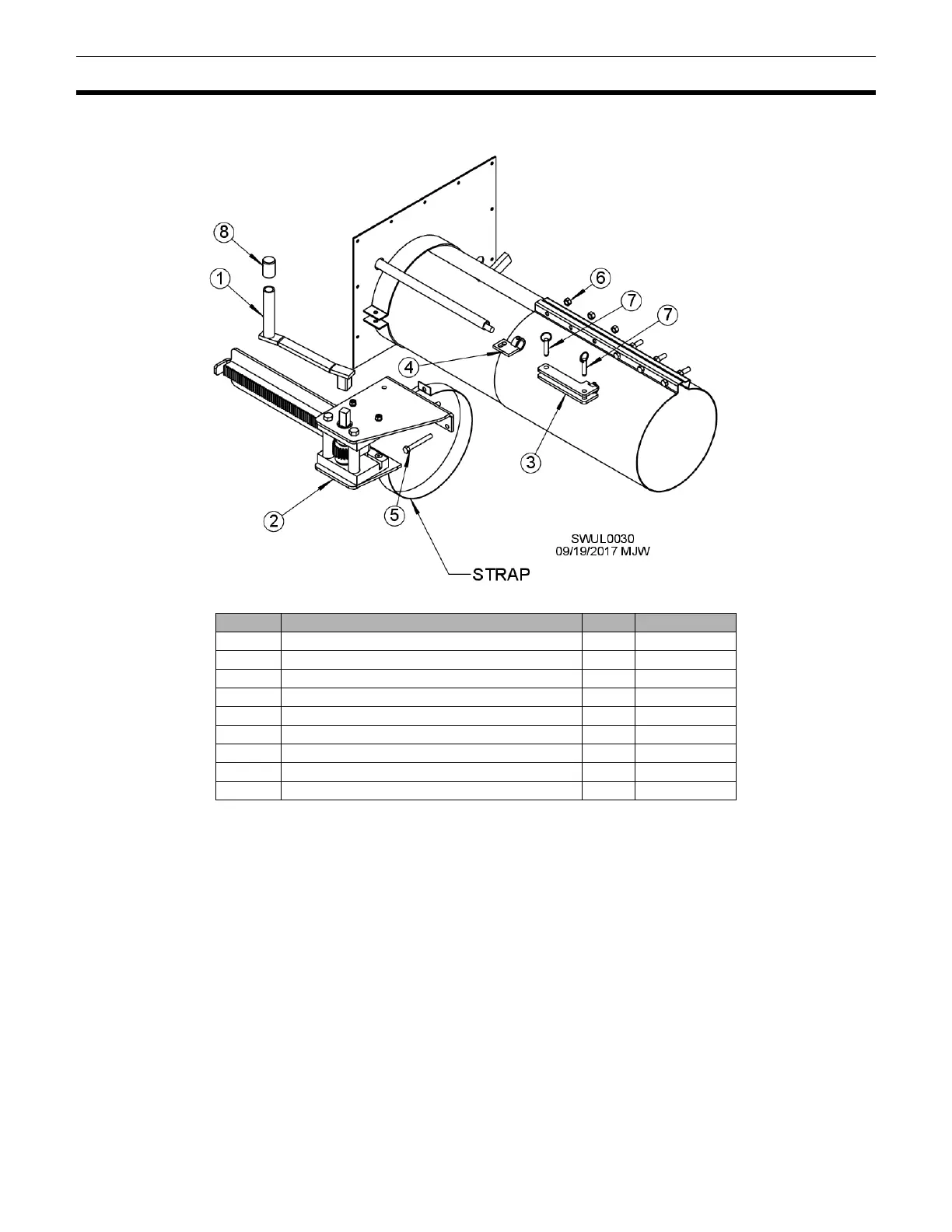

Fig. 41 & Table 15
