Sukup Sweepway - Auger, Powerhead, and Drive Assembly

Installation
20

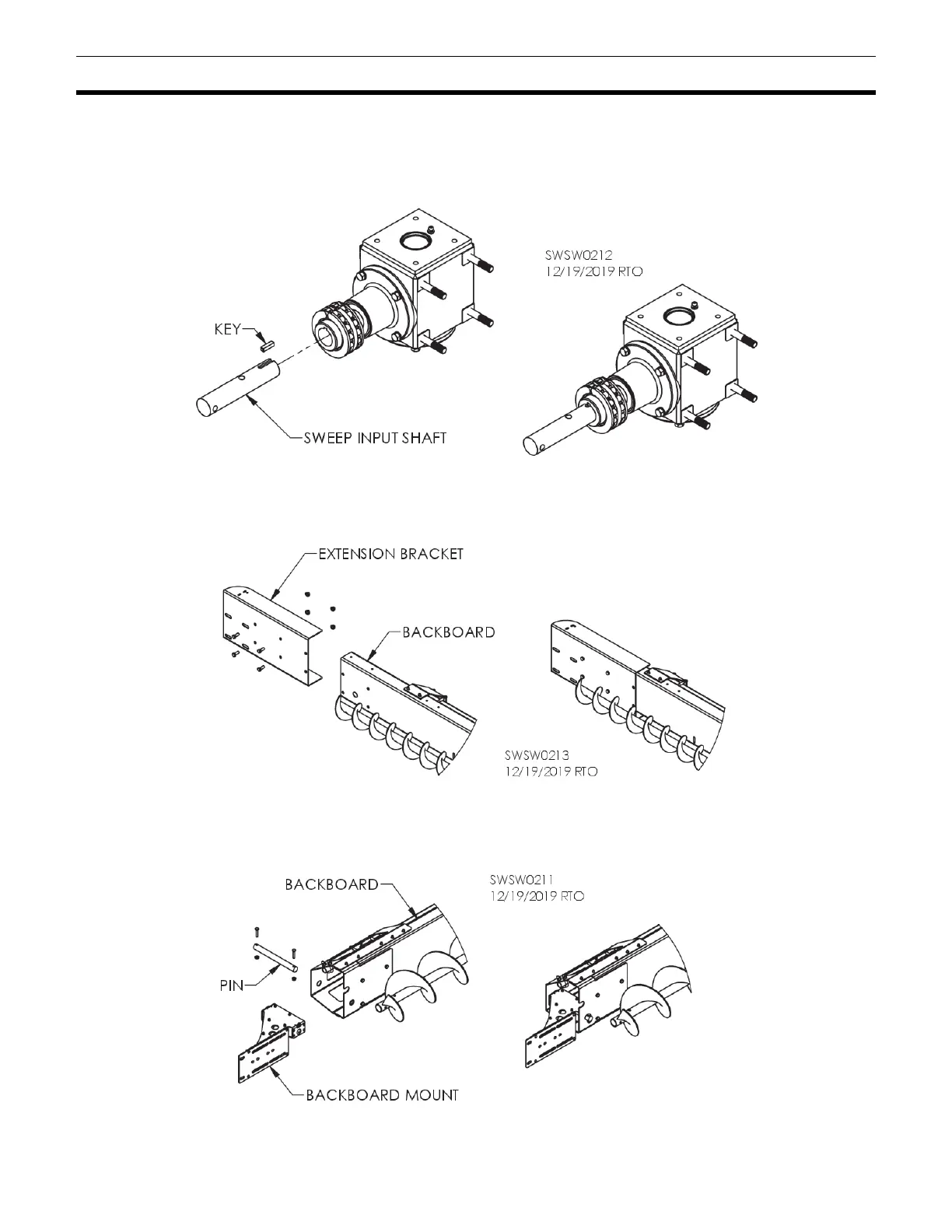

ASSEMBLING BIN SWEEP
For 8” and 10” systems, start by attaching sweep input shaft to top gearbox. Insert 1/4" key into shaft and
insert shaft 1” into sprocket. See Fig. 17. Tighten two (2) setscrews.
Preparation of backboard depends on size of system. For 6”, attach extension bracket to backboard
using four (4) 3/8” bolts. See Fig. 18.
For 8” or 10” Sweepway, line up 1” diameter holes in backboard with holes in backboard mount. See Fig.
19. Insert pin and secure it with two (2) 5/16” bolts, one on each end.
Fig. 18
Fig. 19
Fig. 17
