Dimensions
9
SWEEPWAY DIMENSIONS
See Fig. 1 and Table 1 for Sweepway dimensions.

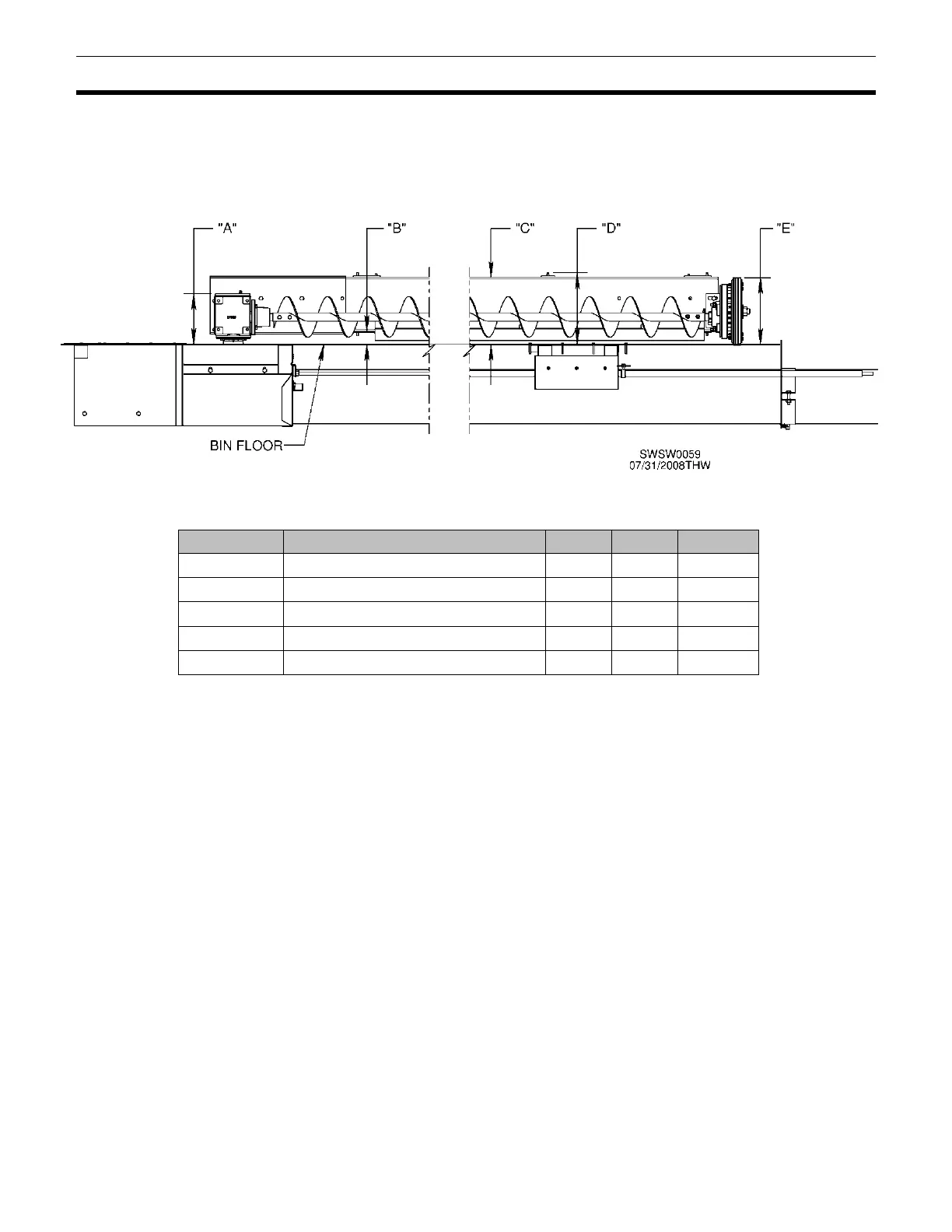

Fig. 1 & Table 1 – Sweepway dimensions
DIMENSION
DISTANCE FROM BIN FLOOR
6”
8”
10"
A
Top of gearbox
7-1/2"
7-1/2”
8-1/2”
B
Bottom of backboard
3”
2”
2-5/8”
C
Top of backboard
11-1/4”
9-7/8”
12-5/8”
D
Top of huckbolt sleeve
11-3/4”
10-3/8”
13-1/8”
E
Top of reduction wheel
10”
10” *
17
*Dimension E will be 17” if 17” wheel is used on 8” Sweepway
