Sukup Sweepway - Parts and Assemblies; 6 Sweepway Parts List

Parts/Assemblies
41

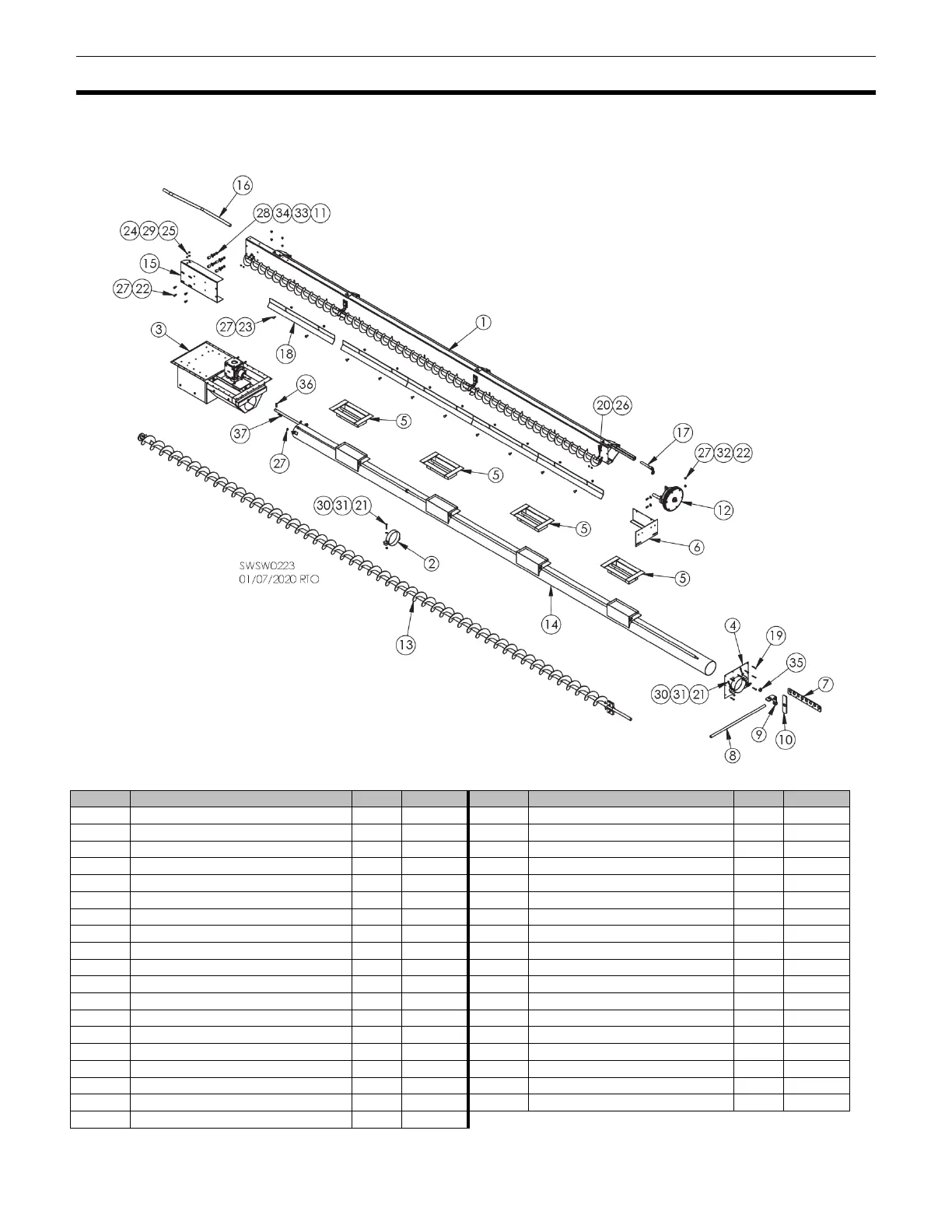

PARTS/ASSEMBLIES
6” SWEEPWAY
*Varies with bin size
REF. #
DESCRIPTION
QTY.
PART #
REF. #
DESCRIPTION
QTY.
PART #
1
Auger/backboard assy.
1
*
20
Screw, 5/16 – 18 x 1-3/4”
4
J0570
2
Clutch rod support clamp
1
E5314
21
Screw, 5/16 – 18 x 2”, self-drill
3
J0584
3
Sump & gearbox assy.
1
E5331
22
Screw, 3/8 – 16 x 1”
6
J0606
4
Bin collar w/ clutch lock assy.
1
E5405
23
Carriage bolt, 3/8" x 1"
*
J06064
5
Top half of intermediate sump
*
E5410
24
U-bolt, 1/4” – 20 x 1-1/8"
1
J08107
6
Sweep stop
1
E5514
25
Lock nut, 1/4 – 20
2
J0992
7
Stationary bar
1
E5884
26
Lock nut, 5/16” – 18
4
J1010
8
Lever arm
1
E5885
27
Flange lock nut, 3/8” – 16
*
J1017
9
Intermed. sump opener handle
1
E5888
28
Hex nut, 7/16” – 14
4
J1035
10
Center sump opener handle
1
E5889
29
Flat washer, 1/4"
2
J1105
11
Spacer, 1"
4
E6014
30
Whiz nut, 5/16” - 18
3
J1110
12
Reduction drive wheel, 4:1
1
E6094
31
Flat washer, 5/16”
3
J1111
13
Unload auger
1
*
32
Flat washer, 3/8”
2
J1117
14
Unload tube
1
*
33
Flat washer, 7/16"
4
J1120
15
Backboard extension bracket
1
E6976
34
Split lock washer, 7/16”
4
J1210
16
Cluster Buster tube
1
E7968
35
Shaft collar, 7/8”, (2x738)
1
J1330
17
Cluster Buster plug/rod assy.
1
E7985
36
Picker pin, 3/8” x 1-1/2”
1
J1541
18
Scraper, 36"
*
E8430
37
Hairpin clip, .09 x 2
1
J5410
19
Screw, 1/4 – 14 x 1-3/4”, self-drill
8
J04981
