Sukup Sweepway - Page 55

Parts/Assemblies
55

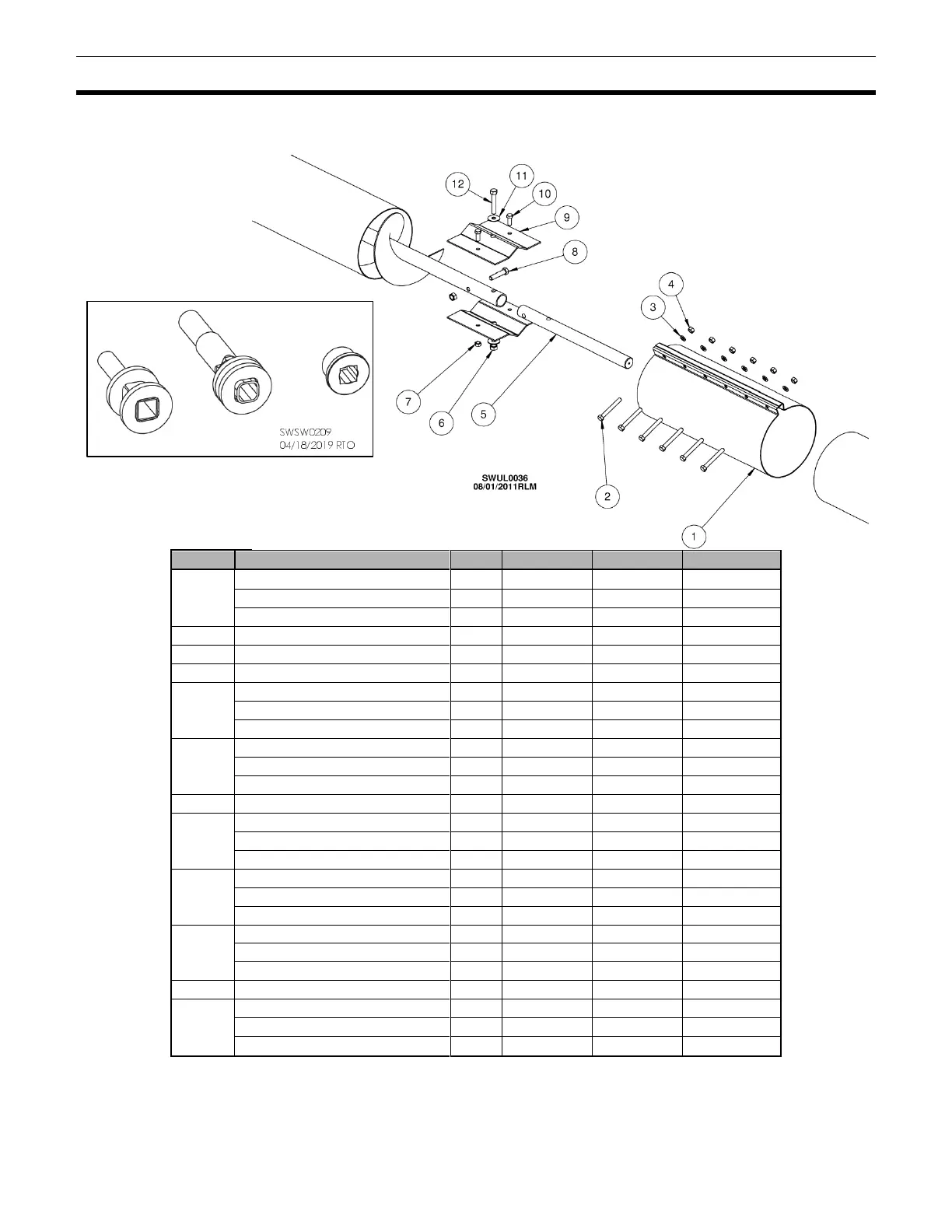

CONNECTOR SLEEVE & UNLOAD AUGER
Shaft (not shown) for connecting inner & outer auger sections: 6” – E5416 -; 8” – E54151 10” – F48412
Inset shows square connectors for attaching inside auger to sump: 6” – E56261; 8” – E6401; 10” – E5417
REF. #
DESCRIPTION
QTY.
6” PART #
8” PART #
10” PART #
1
Connector sleeve, 6 x 18”
1
E5423
--
--
Connector sleeve, 8 x 18”
1
--
E5424
--
Connector sleeve, 10 x 18”
1
--
--
E5425
2
Screw, 3/8 -16 x 3”
6
J0660
J0660
J0660
3
Lock washer, 3/8”
6
J1205
J1205
J1205
4
Hex nut, 3/8 – 16
6
J1020
J1020
J1020
5
Shaft, 1” x 15-1/4”, w/ key
1
E90061
--
--
Shaft, 1-1/4 x 15-3/4”, w/ key
1
--
E54151
--
Shaft, 2 x 18”, w/ key
1
--
--
E54142
6
Lock nut, 5/16” – 18
2
J1010
--
--
Lock nut, 7/16” – 14
2
--
J1034
--
Lock nut, 1/2" – 13
2
--
--
J1042
7
Lock nut, 3/8” – 16
2
J1025
J1025
J1025
8
Screw, 5/16 - 18 x 1-3/4”
1
J0570
--
--
Screw, 7/16 - 14 x 2”
1
--
J0718
--
Screw, 1/2 - 13 x 3”
1
--
--
J0750
9
Flinger, 3 x 5-3/8, 6”
2
E5416
--
--
Flinger, 5 x 6-1/2, 8”
2
--
E54161
--
Flinger, 7 x 7-1/2, 10”
2
--
--
E5689
10
Screw, 3/8 - 16 x 1”
2
J0606
--
--
Screw, 3/8 - 16 x 1”
2
--
J0606
--
Screw, 3/8 - 16 x 1-3/4”
2
--
--
J0645
11
Flat washer, 3/8”
2
--
J1117
--
12
Screw, 5/16 - 18 x 2”
1
J0585
--
--
Screw, 7/16 - 14 x 2-1/2”
1
--
J0720
--
Screw, 1/2 - 13 x 3-1/2”
1
--
--
J0754
SQUARE CONNECTORS FOR (LEFT TO
RIGHT) 6”, 8” & 10” UNLOAD AUGERS
