Sukup Sweepway - Page 77

Parts/Assemblies
77

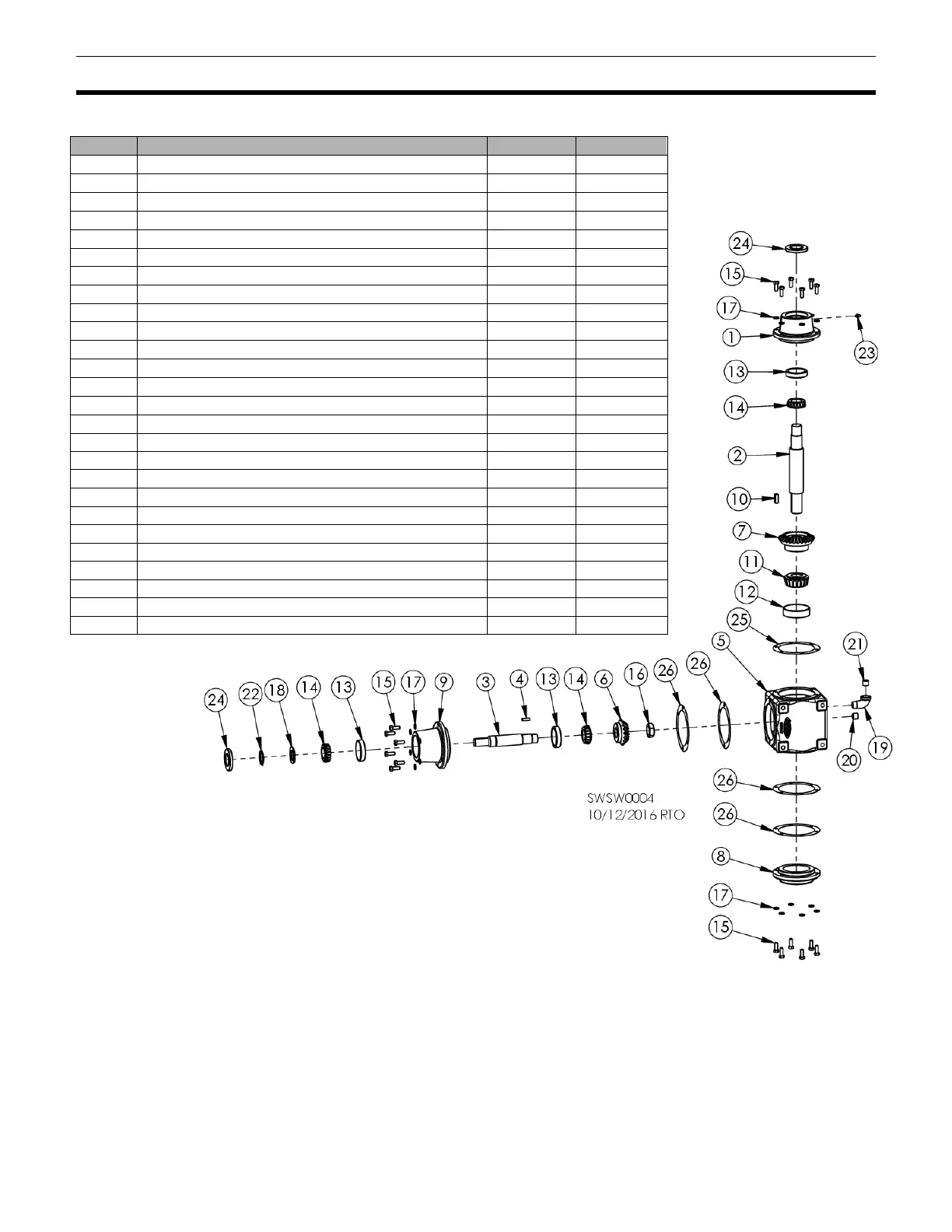

10" SWEEPWAY LOWER GEARBOX
REF. #
DESCRIPTION
QTY.
PART #
1
Hub casting, HD, 1-3/8”, 10”, 1998
1
E5365
2
Gearbox shaft, 10”
1
E5366
3
Shaft, 8-5/16”
1
E5367
4
Key, 1/4” sq. x 1”
1
E5915
5
Lower gearbox casting, HD, 3 hole
1
F9051
6
Bevel gear, 18 tooth, 1-1/4” bore
1
F9052
7
Gear, 27-tooth, 1-3/8” bore
1
F9053
8
Closed end plate
1
F9061-01
9
Gearbox hub, 1-3/8"
1
F9065-01
10
Key, 3/8 x 1-1/4”
1
G5315
11
Bearing, 1-3/8” ID
1
J0027
12
Cup, 3-3/8” OD
1
J0028
13
Cup, 2-23/32” OD
3
J0115
14
Tapered bearing, 1-3/8”
3
J0120
15
Screw, 3/8 - 24 x 1”
18
J0612
16
Thin nylon lock nut, 1-1/8” – 12
1
J1067
17
Split lock washer, 3/8"
18
J1205
18
Machine bushing, 1-3/8 x 10ga
1
J1275
19
Street elbow, 1/2”, 90°
1
J2520
20
1/2" center sunk hex head plug
2
J2615
21
1/2” center sunk head vented plug
1
J2616
22
Snap ring, 1.37
1
J3589
23
Drive-in grease zerk, 1/4"
1
J3605
24
Seal, 1.38 ID,
2
J7061
25
Shim, 4.625 x 6.010 x 0.003
As needed
J7085
26
Shim, 4.625 x 6.010 x .010
As needed
J7088
