Sulzer 16E - 6.9 Disassembly; Wire Grip Mechanism Disassembly

16E / 16E-H / 16E-P Spray Gun
50
MAN 96150 EN 01
6.9 Disassembly
Disassembly of the spray gun for service or overhaul can be done in
any order except where noted. If a part must be removed for access,
the prerequisite procedure is referenced.
6.9.1 Wire Grip Mechanism
1. Remove drive roll carrier. (See “Drive Rolls and Gears” on
page 47.)
2. Remove three screws (118) securing wire grip mechanism to cen-
tral housing (129) and remove wire grip mechanism.
3. Unscrew and remove cylinder (113). Do not remove or adjust
screw (112) unless necessary to replace screw or o-ring (121).
4. Pull piston assembly (114-116) out from support block (119) along
with spring (117).
5. Remove retaining ring (114) from piston rod (116) and remove pis-
ton (115) from piston rod.

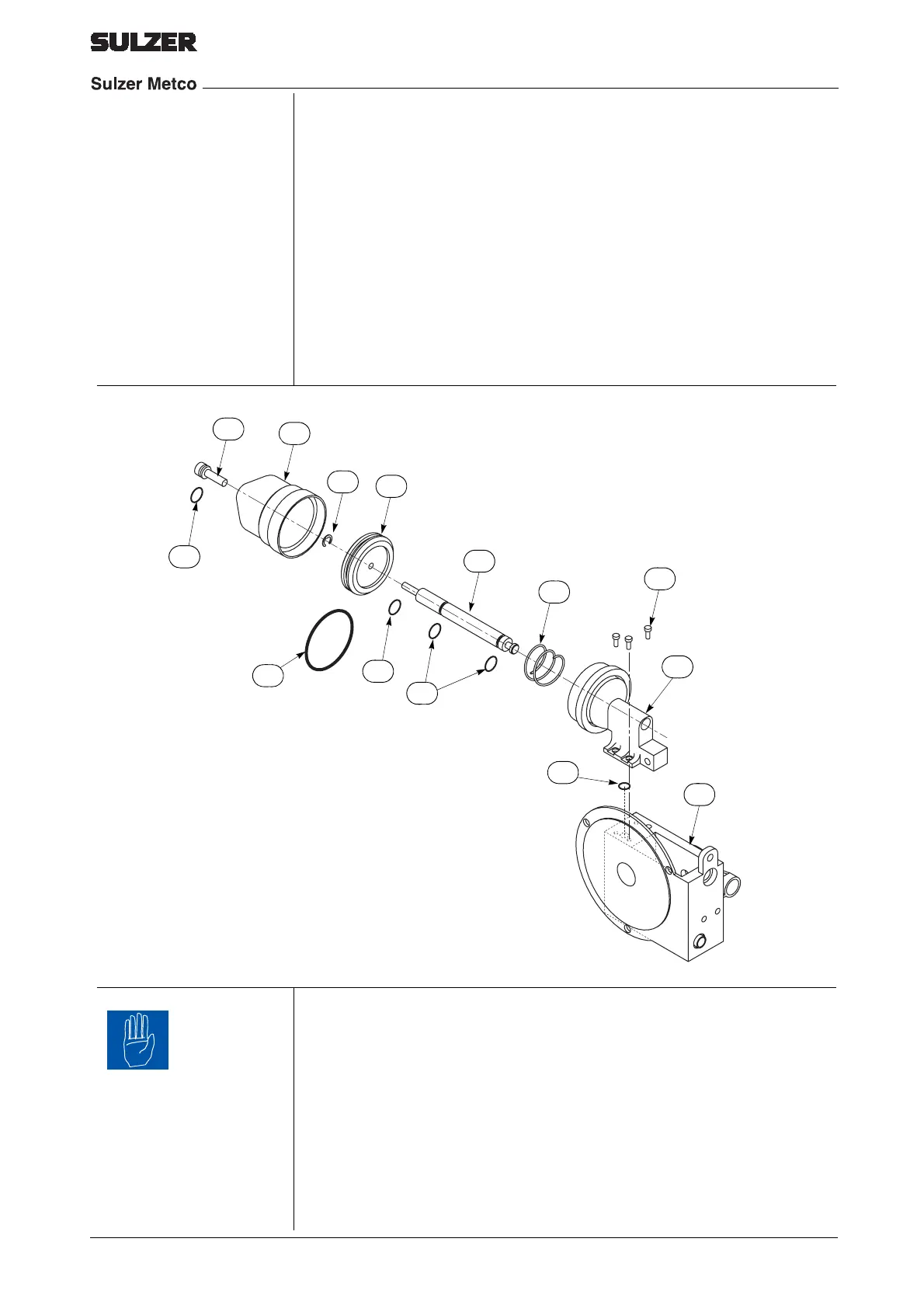

16e_wire_grip
112
113
114
115
116
117
118
119
120
121
122
121
129
121
CAUTION
Do not remove or
adjust screw on back of
wire grip mechanism.
