6.8.3 Rear Wire Guide and Snubber
Removal/Disassembly
1. Remove set screw (9) and remove wire guide insert (1) (or strain
relief assembly (11)).
2. Remove set screw (10) (from wire drive mechanism flange) and
remove wire guide and snubber assembly (3-8) from central hous-
ing (129).
3. Remove set screw (9) and remove spring retainer (8) from wire
guide snubber (3).
4. Disassemble wire guide snubber (3), snubber spring housing (5),
roller (6) and compression spring (7).
Assembly/Installation
1. Assemble wire guide snubber (3), snubber spring housing (5),
roller (6) and compression spring (7).
2. Install spring retainer (8) on wire guide snubber (3) and secure
with set screw (9). Make sure set screw seats within channel in
wire guide snubber.
3. Install wire guide and snubber assembly (3-8) in central housing
(129) and secure with set screw (10). Make sure set screw seats in
countersink in wire guide snubber.
4. Install wire guide insert (1) (or strain relief assembly (11)) in wire
guide snubber (3) and secure with set screw (9). Make sure set
screw seats in countersink in wire guide snubber.

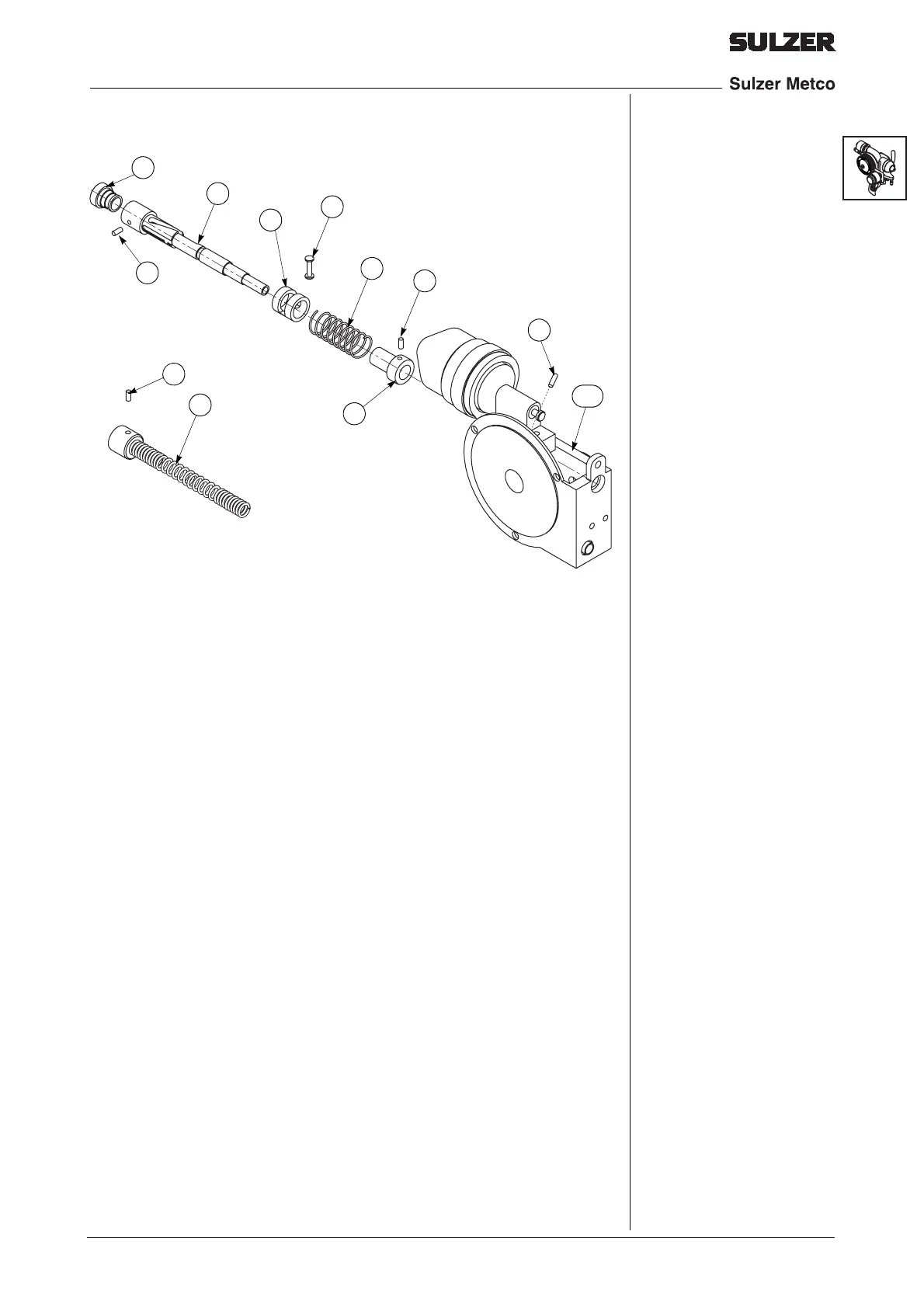

16e_snubber
1
3
5
6
7
9
9
9
11
8
10
129
