6.9.3 Handle and Wire Feed Valve
1. Remove screw (183) securing front handle to rear handle (182)
and remove front handle.
2. Remove two screws (91) securing rear handle (182) and wire feed
valve assembly to central housing (129).
3. Remove cam follower (181) from valve block (179).
4. Remove valve shaft (177) and valve spring (178) from valve block
(179).
Accessing Lower Turbine Cover Screw
To access the lower screw for the turbine cover, the handle and wire
feed valve do not need to be removed. Remove only the cam follower
(181), valve shaft (177) and valve spring (178) from the valve block
(179).

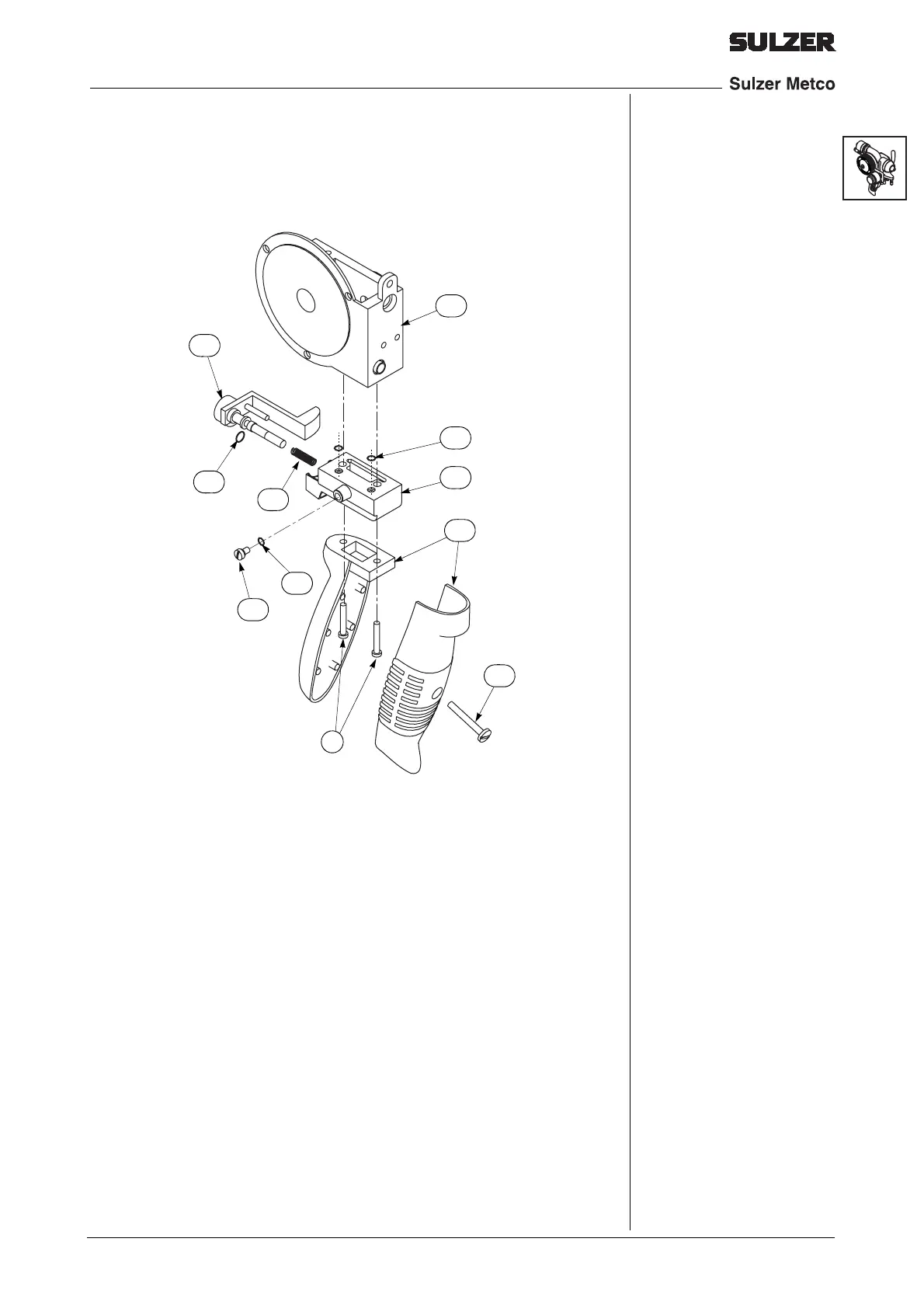

16e_handle
120
177
178
179
180
181
182
183
121
91
129
