6.9.5 Countershaft, Drive Shaft and Bearings
All bearings are press-fit onto shafts and seats. When removing a
bearing, press only on the inner race.
1. Remove drive roll carrier, lower drive roll and lower drive gear.
(See “Drive Rolls and Gears” on page 47.)
2. Remove speed control and turbine assembly. (See “Speed Control
and Turbine” on page 54.)
3. Unscrew countershaft bearing retainer (160) from gear cover
(165).
4. Remove countershaft bearing retainer (160) along with counter-
shaft plug (157), ball bearing (159), countershaft gear (162) and
countershaft (164). (Ball bearing (159) at front of gear cover will
remain in place.)

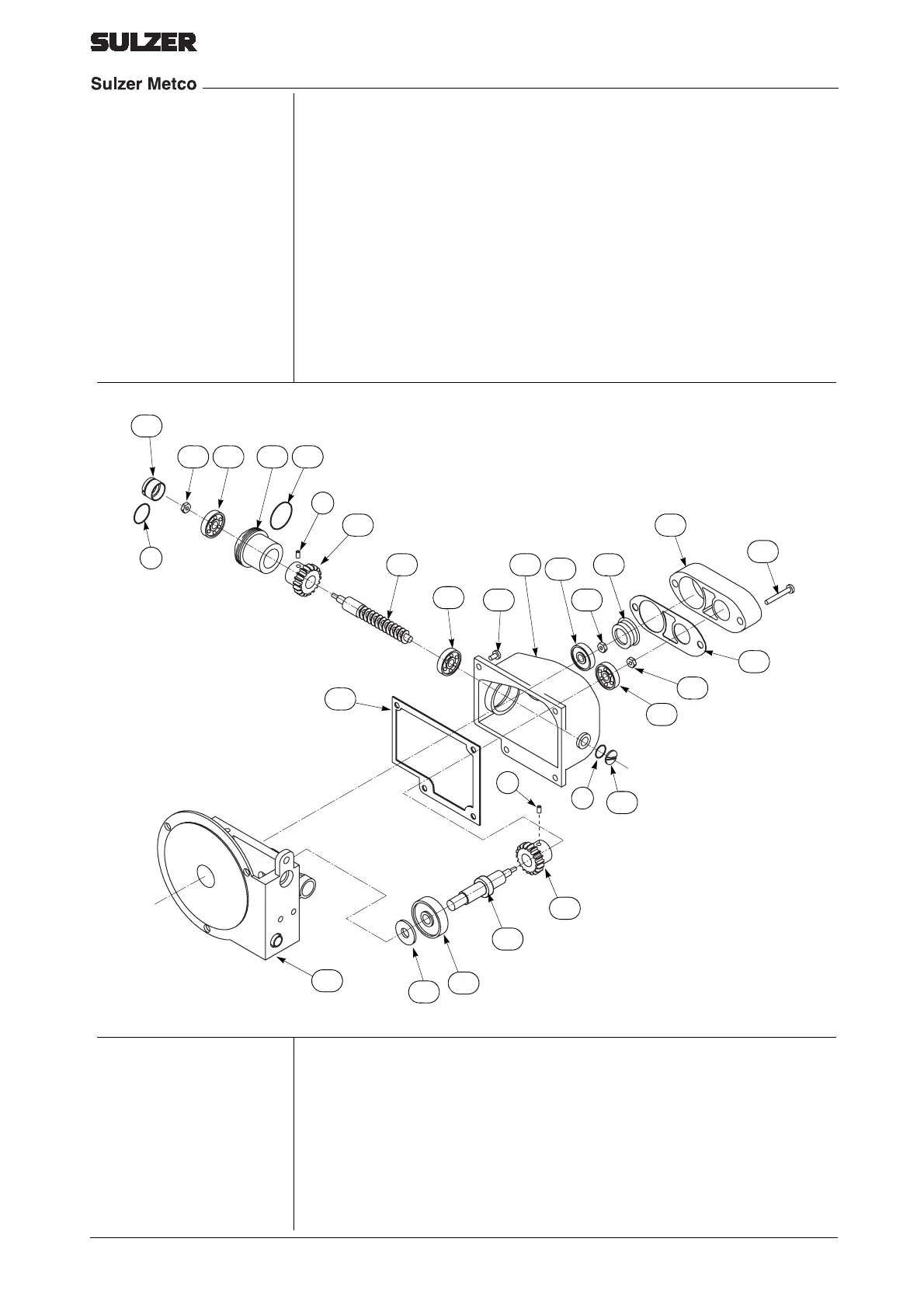

16e_countershaft
