Sulzer 16E - Page 55

16E / 16E-H / 16E-P Spray Gun
55
MAN 96150 EN 01

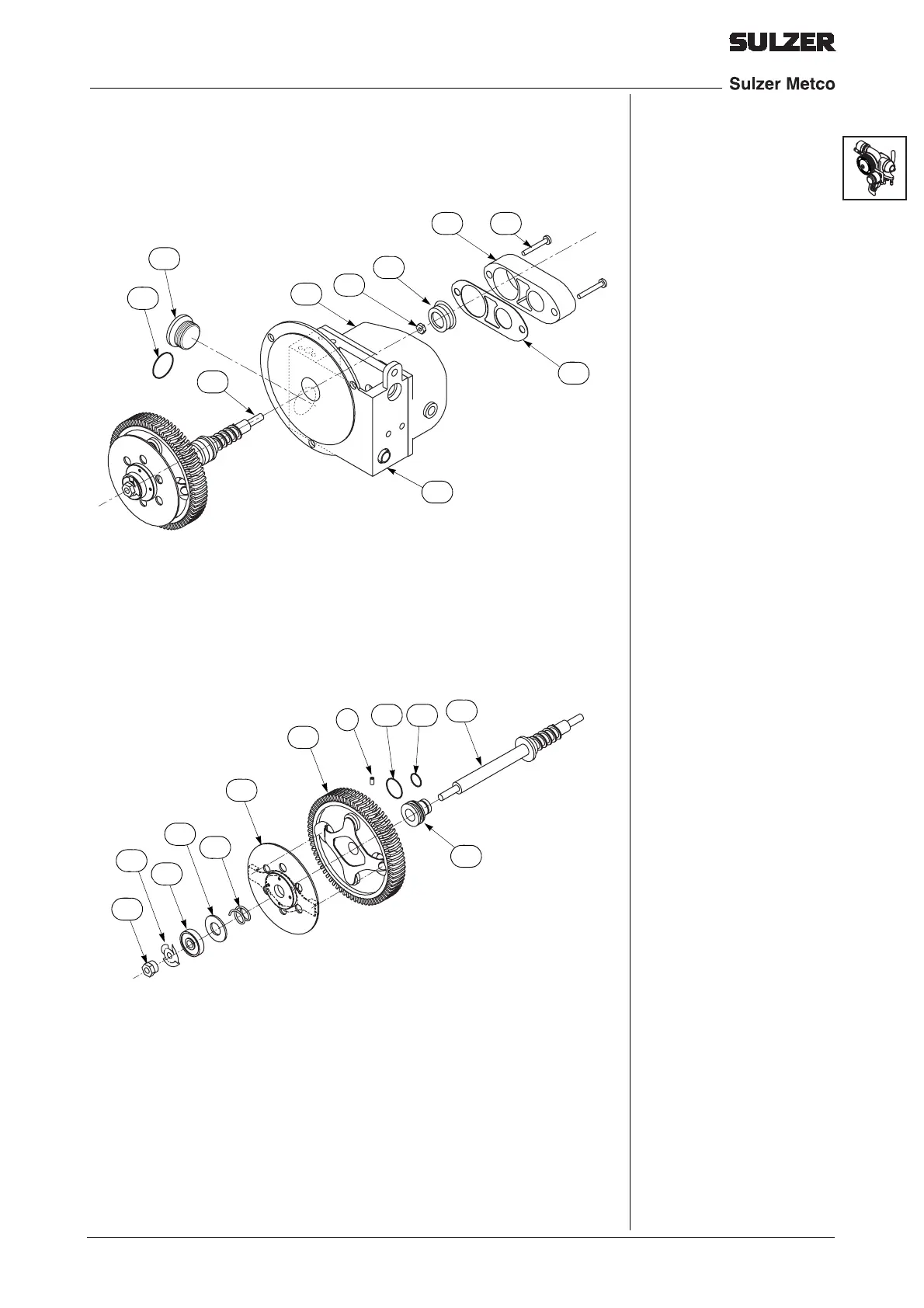

Turbine
1. Remove oil plug (127) from back of central housing (129) and
drain oil from spray gun.
2. Remove two screws (169) securing bearing cover (168) to gear
cover (165) and remove bearing cover, gasket (170) and bearing
follower (167).
3. Remove nut (158) from turbine shaft (154) and remove turbine
assembly (145-154) from central housing (129).
4. Remove shaft bearing retainer nut (145) from turbine shaft (154)
and remove finger spring, bearing, washer, brake disc return
spring and disc brake (146-150) from turbine shaft.
5. Remove set screw (9) securing turbine rotor (151) to turbine shaft
(154) and remove turbine rotor from turbine shaft.
6. Slide turbine seal (152) off turbine shaft (154).
169
170
168
165
158
167
154
127
129
16e_turbine_remove
128
16e_turbine_assy
145
146
147
148
149
150
151
9
153
152
94
154
