16E / 16E-H / 16E-P Spray Gun
54
MAN 96150 EN 01
6.9.4 Speed Control and Turbine
Speed Control
1. Remove handle and wire feed valve (“Handle and Wire Feed
Valve” on page 53) or wire feed valve shaft (“Accessing Lower Tur-
bine Cover Screw” on page 53).
2. Remove three screws (156) securing speed control assembly
(137-144) to central housing (129) and remove speed control
assembly.
3. Rotate control ring (142) in SLOWER direction to unthread spider
assembly (144) from control ring (142) until spider assembly can
be removed.
4. Remove three screws (138) and disassemble nameplate (139),
detent spring (141), control ring (142) and turbine cover (143).
5. Remove oil filter plug (137) from turbine cover (143).

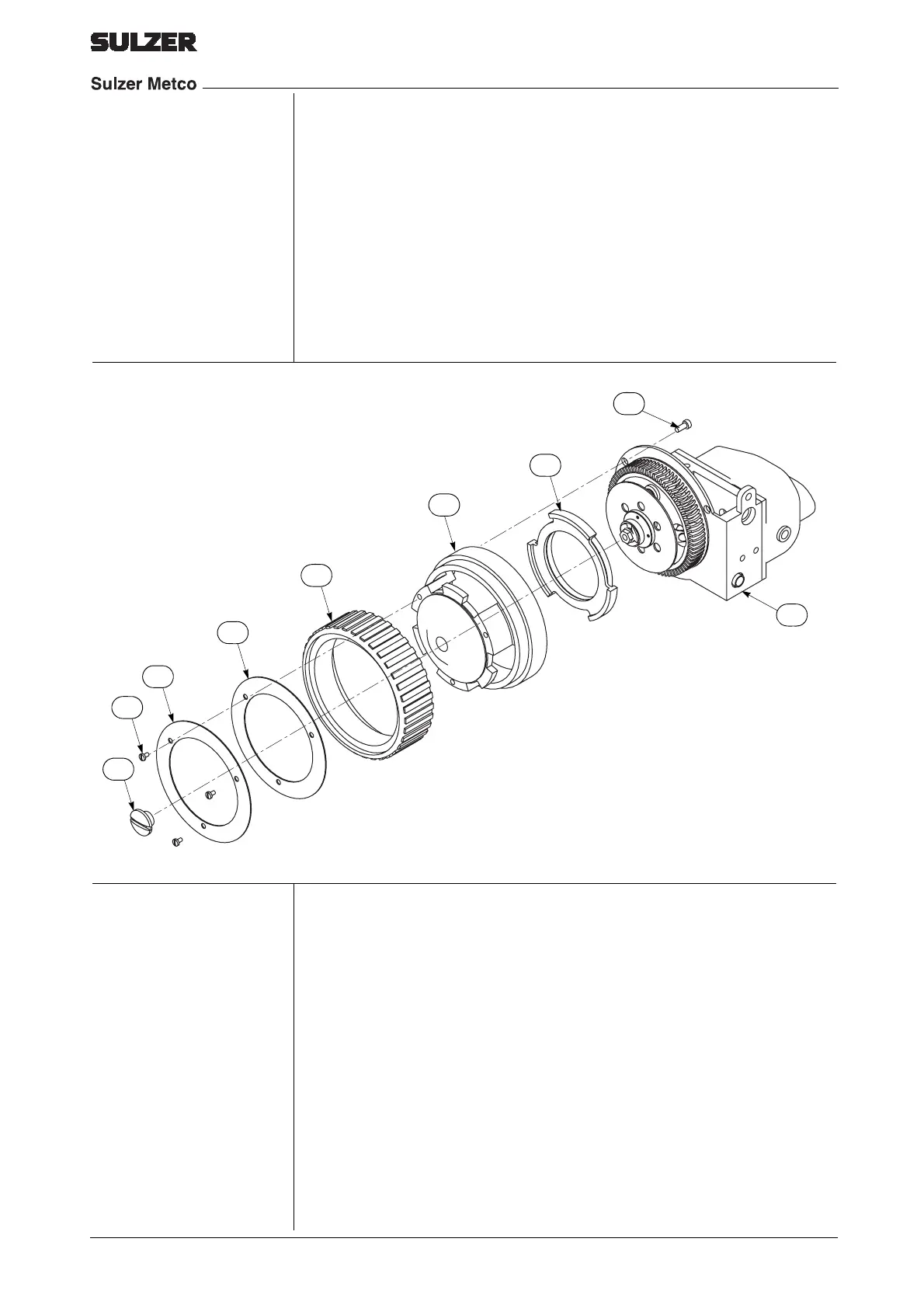

16e_speedcont_assy
137
138
139
141
142
143
144
156
129
