Sulzer 16E - Wire Grip Mechanism Assembly

16E / 16E-H / 16E-P Spray Gun
68
MAN 96150 EN 01
6.10.5Wire Grip Mechanism
1. Install one o-ring (121) and two o-rings (120) on piston rod (116).
2. Install o-ring (122) on piston (115).
3. Assemble piston (115) and piston rod (116) and secure with retain-
ing ring (114).
4. Install piston assembly (114-116) and spring (117) into support
block (119).
5. Install Unscrew and remove cylinder (113) with screw (112) and o-
ring (121).
6. Install wire grip mechanism on central housing (129) and secure
with three screws (118).
7. Install drive roll carrier. (See “Drive Rolls and Gears” on page 47.)

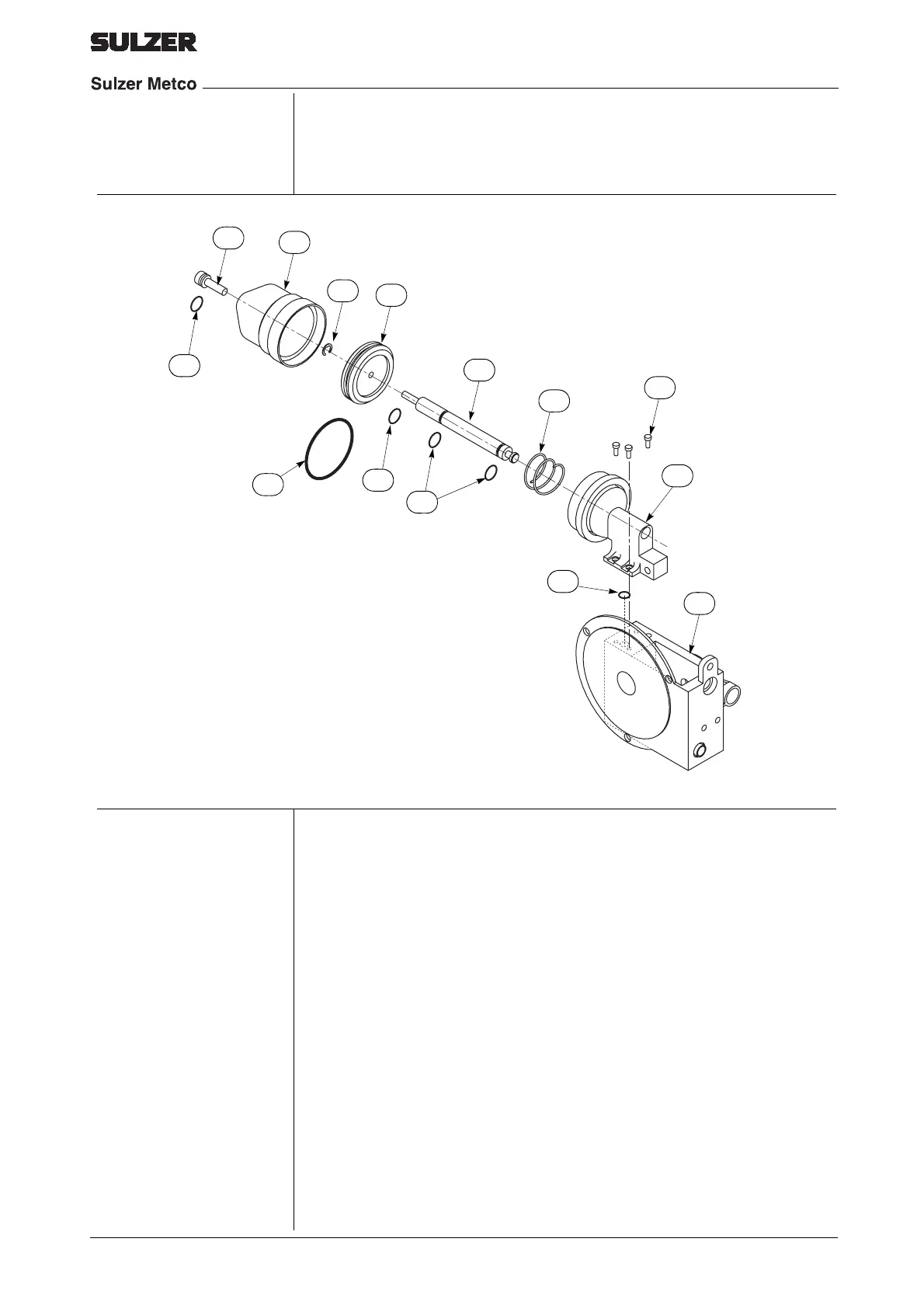

16e_wire_grip
