Sulzer 16E - 6.10 Assembly; Countershaft, Drive Shaft, and Bearings Assembly

16E / 16E-H / 16E-P Spray Gun
59
MAN 96150 EN 01
6.10 Assembly
Before assembly, clean and inspect all parts. Replace damaged or
worn parts. Do not clean o-rings with solvent. Apply a light coating of
Krytox® to all o-rings.
6.10.1Countershaft, Drive Shaft and Bearings
1. Assemble drive shaft:
a. Press bearing (174) onto drive shaft (173) up to bushing.
b. Install drive shaft gear (172) on drive shaft (173) with gear
teeth against bushing and secure with set screw (9). Make
sure set screw enters countersink on shaft.
2. Install drive shaft assembly (9, 172-174) and drive shaft seal (175)
in central housing (129).
3. Press ball bearing (159) in inside front of gear cover (156).

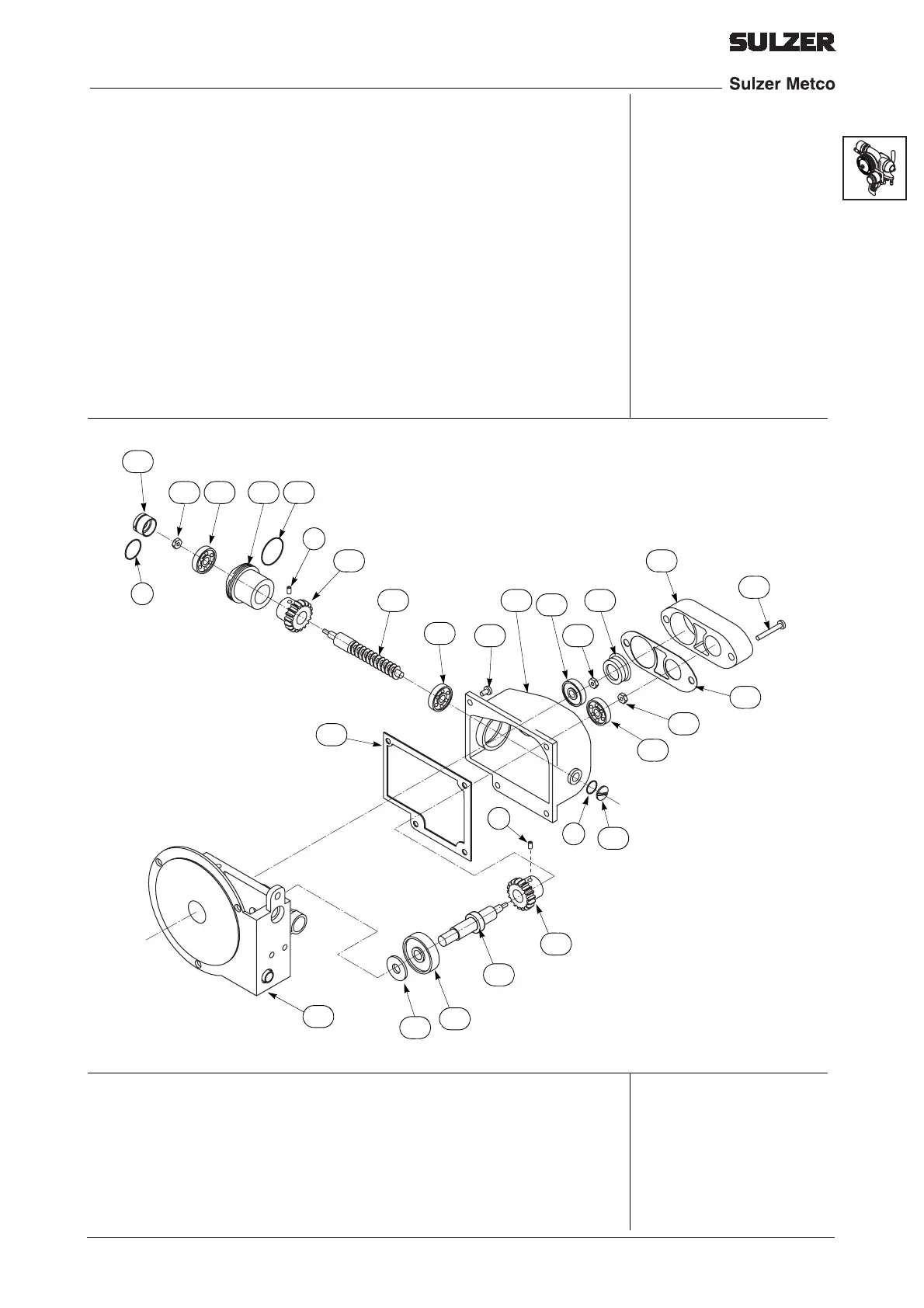

16e_countershaft
157
160 161
22
158 159
156
162
164
9
159
165
158
158
166
167
170
168
169
159
171
172
173
174
175
94
9
176
129
