16E / 16E-H / 16E-P Spray Gun
61
MAN 96150 EN 01
6.10.2Speed Control and Turbine
Turbine
1. Install two o-rings (94 and 153) on turbine seal (152).
2. Slide turbine seal (152) onto turbine shaft (154) with smaller end of
turbine seal near turbine shaft bushing.
3. Install turbine rotor (151) onto turbine shaft (154) and secure with
set screw (9). Make sure set screw enters countersink on shaft.
4. Install disc brake (150) onto turbine shaft (154) so that spring clips
engage button weights of governor spring on rotor (151).
5. Install spring (150) and washer (148) with cupped side of washer
facing spring.
6. Install bearing (147) and finger spring (146) so that fingers of
spring face bearing.
7. Install shaft bearing retainer nut (145) on turbine shaft (154).
Shank of nut fits in inner diameter of finger spring.

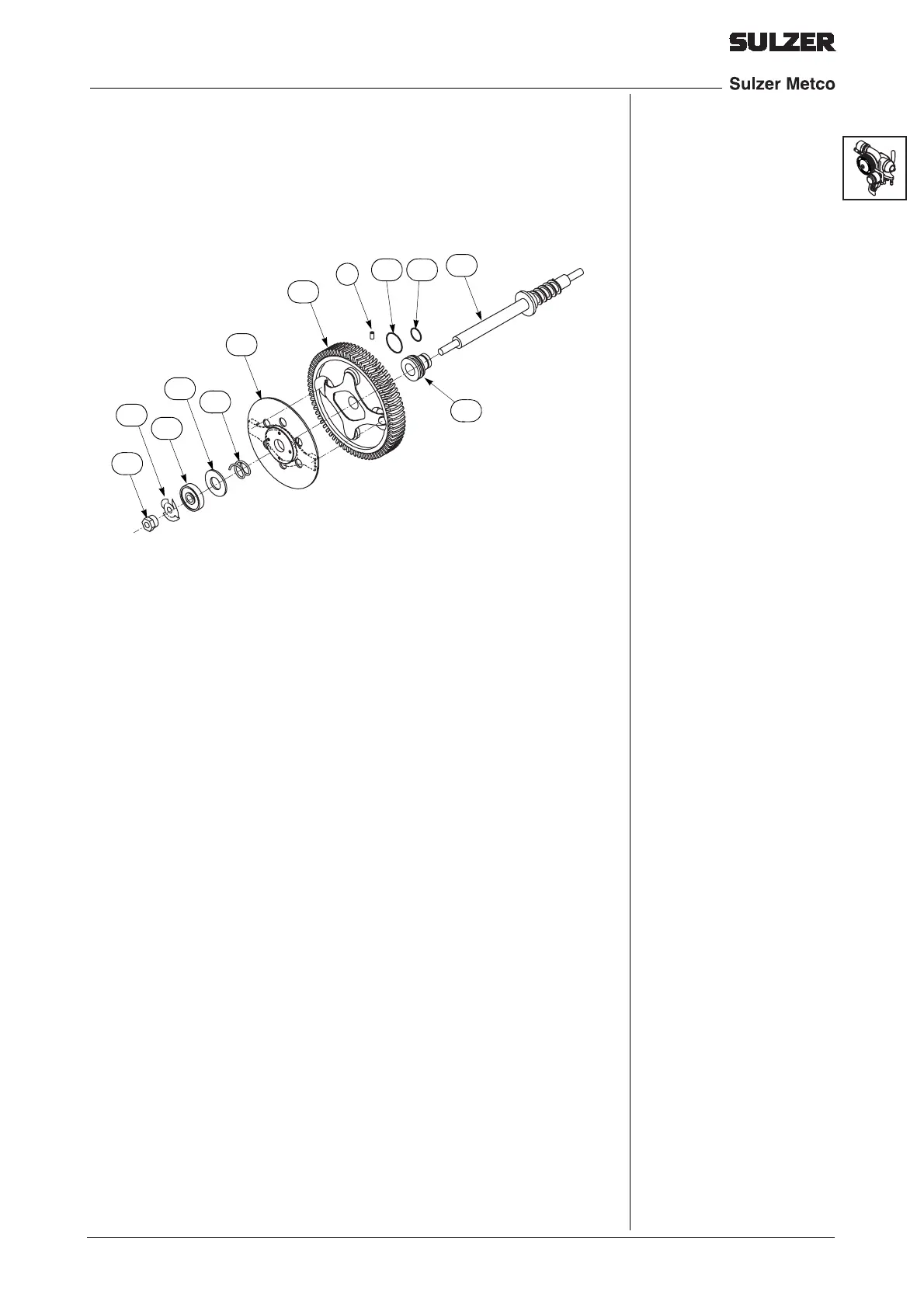

16e_turbine_assy
145
146
147
148
149
150
151
9
153
152
94
154
