16E / 16E-H / 16E-P Spray Gun
62
MAN 96150 EN 01

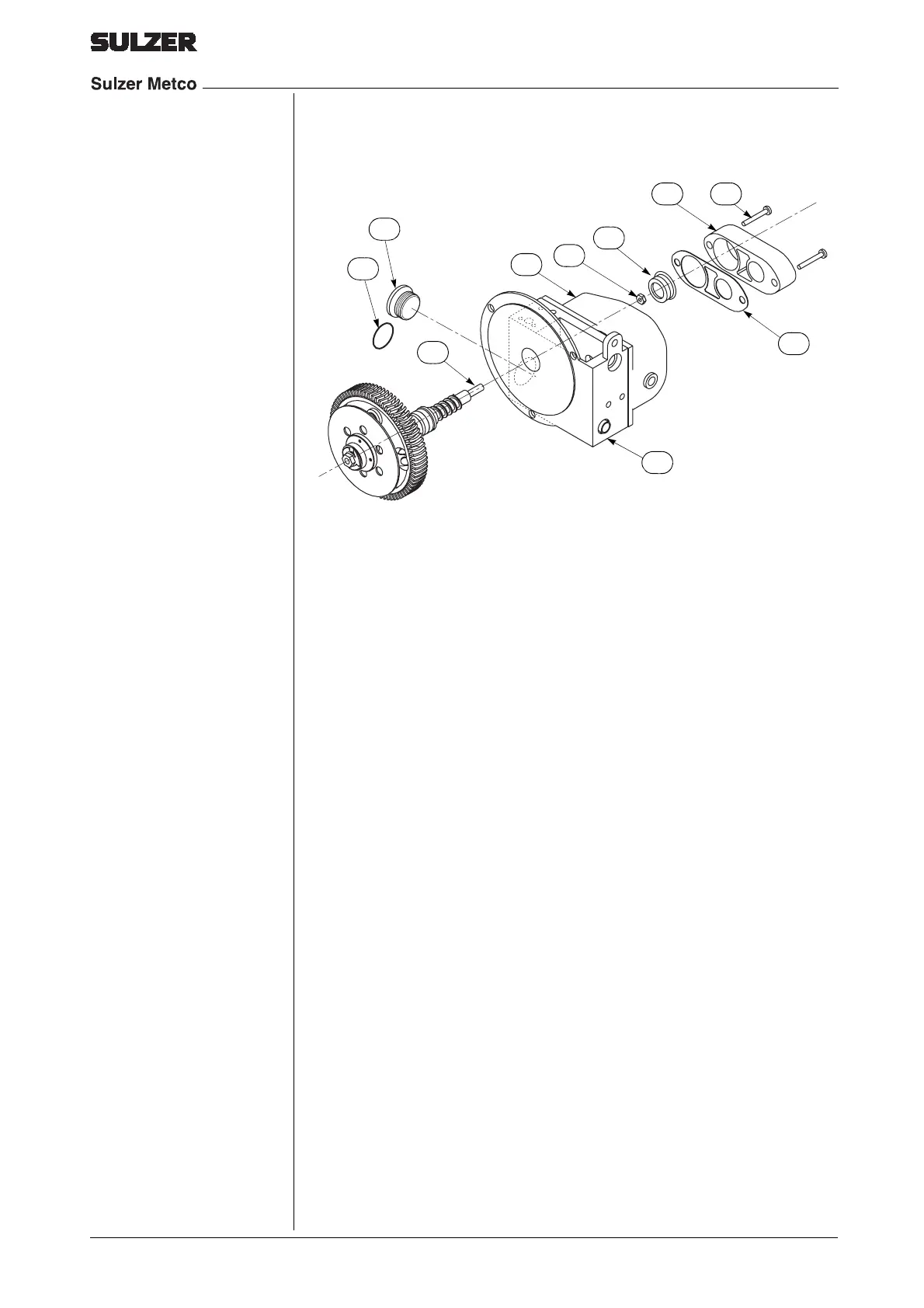

8. Install turbine assembly (145-154) through central housing (129)
and bearing in gear cover (165).
9. Install nut (158) on turbine shaft (154).
10. Apply gasket sealant (Loctite 587 Blue, or equivalent) to both sides
of gasket (170).
11. Install bearing follower (167), gasket (170) and bearing cover (168)
and secure with two screws (169).
12. Fill central housing (129) with exactly 30 ml (1 fluid ounce) of
Gearlube. (See “Countershaft / Bearing Lubrication” on page 42.)
13. Install oil plug (127) with o-ring (128) in back of central housing
(129).
169
170
168
165
158
167
154
127
129
16e_turbine_remove
128
